ZZE142R-GEPGKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )CE140,NDE140,ZRE142,143,ZZE14#..16E,16G,16J,16V,18E,18EL,18G,18J,18V,20D

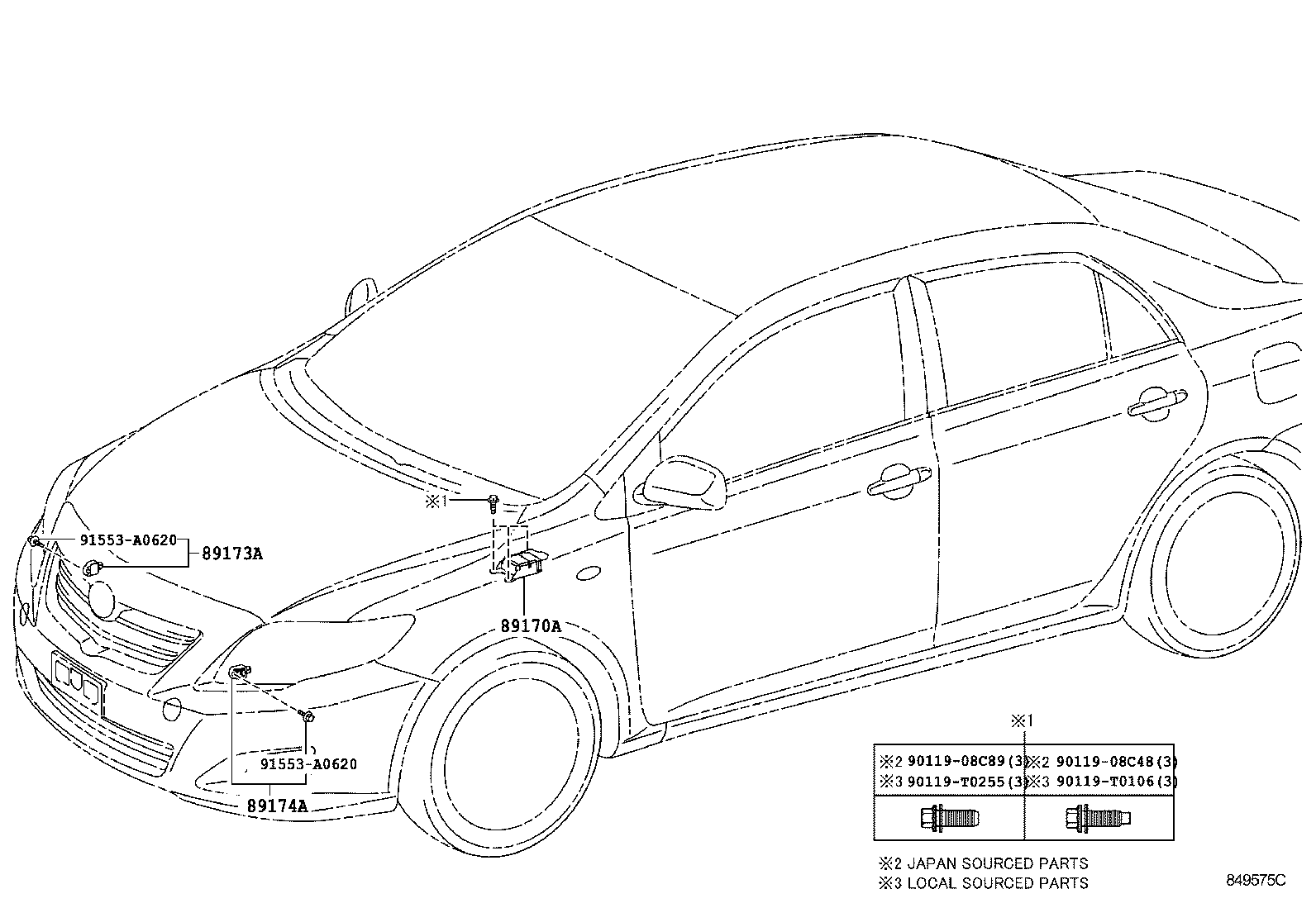

Click highlighted areas on diagram

diagram 89170A 89173A 89174A 9011908C48 9011908C89 90119T0106 90119T0255 91553A0620 91553A0620
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-02B10

ZRE142..HTWCF;NDE140,ZRE141..RHD..(16E,16G,E,G);ZRE141,142..(16V,18G,18V,E,G)..(IDN,IND,MA,PHL,VN);ZRE142,143..(6F,CVFC)..(18E,18J,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC

 1
89170-02B10

ZRE142..HTWCF;NDE140,ZRE141..RHD..(16E,16G,E,G);ZRE141,142..(16V,18G,18V,E,G)..(IDN,IND,MA,PHL,VN);ZRE142,143..(6F,CVFC)..(18E,18J,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC

 1
89170-02810

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
89170-02810

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-49435

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
89173-49435

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-49435

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
89173-49435

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
Common parts
90119-08C48
90119-08C89
90119-T0106
90119-T0255
91553-A0620
