ZZE142R-GEPGKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )

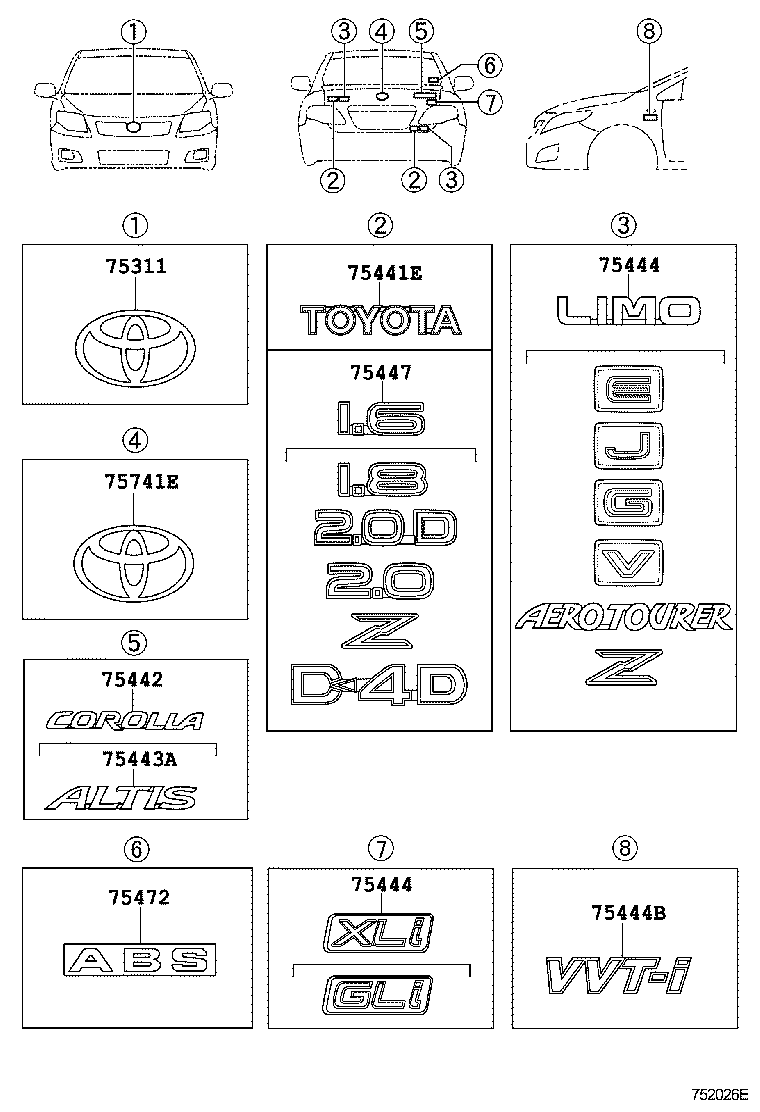

Click highlighted areas on diagram

diagram 75311 75441E 75442 75443A 75444 75444 75444B 75447 75472 75741E
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-02050

NDE140,ZZE142..IND

 1
75441E - PLATE, BACK DOOR NAME, NO.1
75441-02170

NDE140,ZZE142..IND

TOYOTA

 1
75441-02170

CE140,NDE140,NZE140,ZRE141,142..GCC,IND,PKN

TOYOTA

 1
75442 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2
75442-02210

NDE140,ZZE142..IND

COROLLA

 1
75442-02200

ZRE141..6F..TH;CE140,NZE140,ZRE141,142..20D,20DSA,D,GLI,XLI

COROLLA

 1
75443A - PLATE, LUGGAGE COMPARTMENT DOOR, NO.3
75442-02220

NDE140,ZZE142..IND

ALTIS

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-02670

ZZE142..18V..IND

V

 1
75444-02660

NDE140,ZZE142..(18G,E,G)..IND

G

 1
75444 - PLATE, LUGGAGE COMPARTMENT DOOR, NO.4
75444-02670

ZZE142..18V..IND

V

 1
75444-02660

NDE140,ZZE142..(18G,E,G)..IND

G

 1
75444B - PLATE, FRONT FENDER
75444-02161

ZRE141,142..(18G,18J,18V,E,G,N)..(IND,PKN)

VVT-I

 2
75447 - PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.7
75447-02160

ZZE142..IND

 1
75741E - EMBLEM, SYMBOL
75431-02090

NDE140,ZZE142..IND

 1
