ZZE142R-GEPGKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )IND

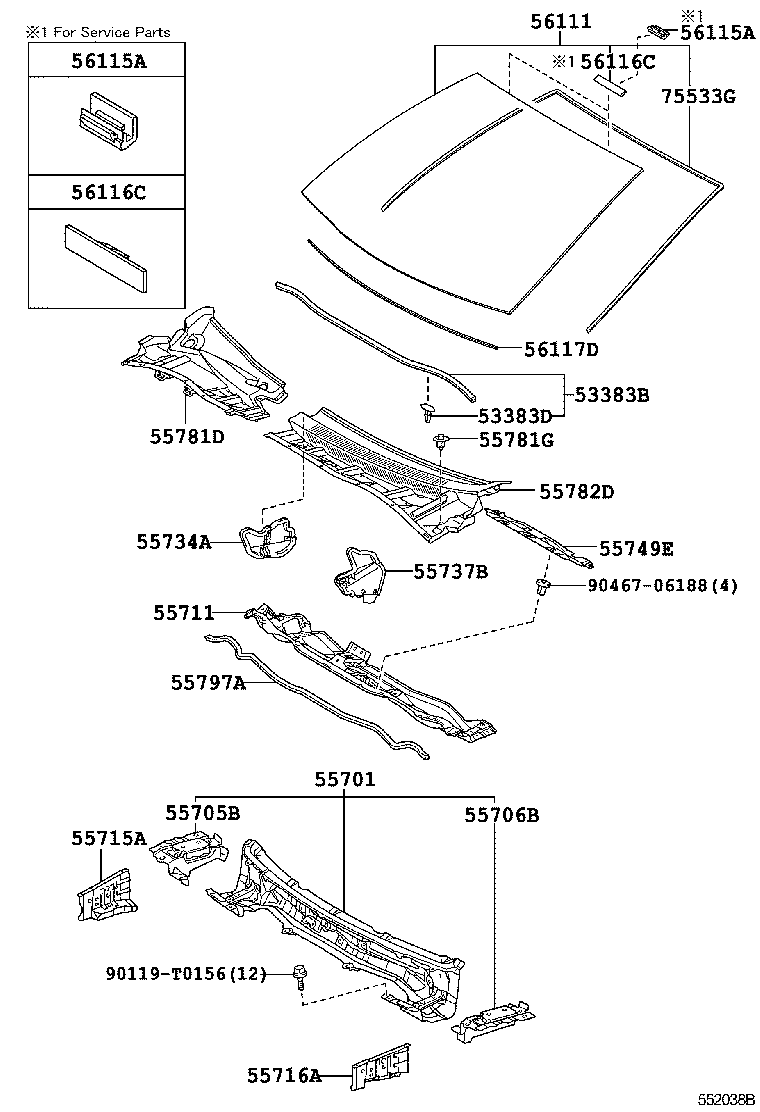

Click highlighted areas on diagram

diagram 53383B 53383D 55701 55705B 55706B 55711 55715A 55716A 55734A 55737B 55749E 55781D 55781G 55782D 55797A 56111 56115A 56115A 56116C 56116C 56117D 75533G 90119T0156 9046706188
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-02150

NDE140,ZZE142..IND

 1
53383D - CLIP(FOR HOOD TO COWL TOP SEAL)
67867-12150

ZZE142..18V..IND;CE140,NZE140,ZRE143;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,GLI,LIMO,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN)

 7
67867-0D070

NDE140,ZZE142..IND

 7
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-02090

NDE140,ZZE142..IND

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-02090

NDE140,ZZE142..IND

 1
55711 - PANEL, COWL TOP, OUTER
55701-02271

NDE140,ZZE142..IND

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-02040

NDE140,ZZE142..IND

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-02040

NDE140,ZZE142..IND

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-07076C0

NDE140,ZZE142..IND

BLACK

 2
55797A - SEAL, COWL WATER EXTRACT
55797-02070

NDE140,ZZE142..IND

 1
56111 - GLASS, WINDSHIELD
56101-02530

ZZE142..(18G,18V,G)..IND

*LAM,T=4.7,GREEN

 1
56101-02531

NDE140,ZZE142..(18G,18V,G)..IND

*LAM,T=4.7,GREEN

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30120

NDE140,ZZE142..IND

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30120

NDE140,ZZE142..IND

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-02020

NDE140,ZZE142..IND

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-02020

NDE140,ZZE142..IND

 2
56117D - DAM, WINDSHIELD GLASS ADHESIVE
56117-12300

NDE140,ZZE142..IND

L=1303

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75531-02160

NDE140,ZZE142..IND

 1
Common parts
90119-T0156
90467-06188
