ZZE142R-GEPGKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

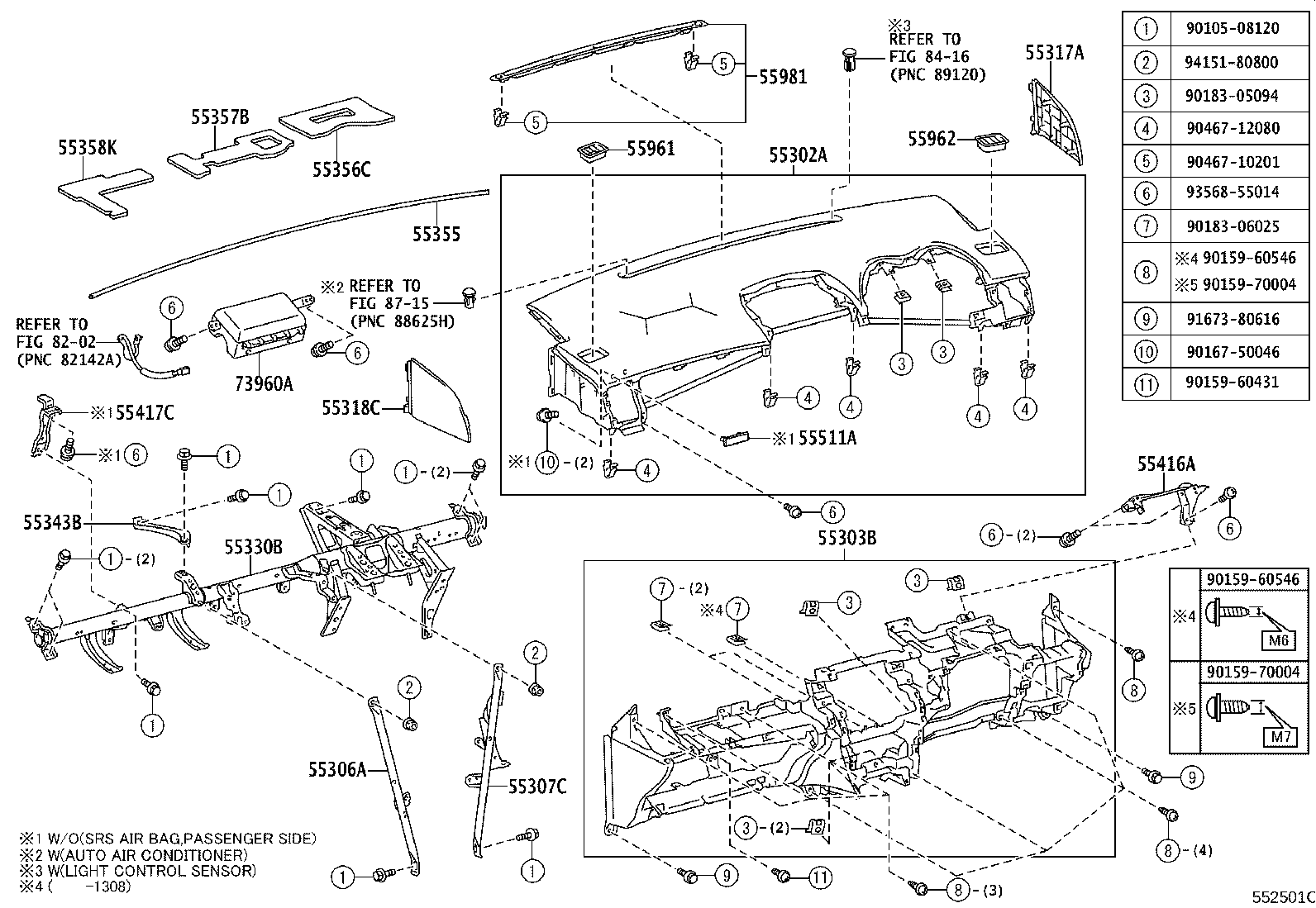

ILLUST NO. 1 OF 2(0808- )IND

Click highlighted areas on diagram

diagram 55302A 55303B 55306A 55307C 55317A 55318C 55330B 55343B 55355 55356C 55357B 55358K 55416A 55417C 55511A 55961 55962 55981 73960A 8202 8416 8715 9010508120 9015960431 9015960546 9015960546 9015970004 9015970004 9016750046 9018305094 9018306025 9046710201 9046712080 9167380616 9356855014 9415180800
Part # Description Qty Price
55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER
55302-02350E0

NDE140,ZZE142..(18G,18V,E,G)..IND

ASH BROWN,TRIM4#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-02320E0

NDE140,ZZE142..IND

GREGE,TRIM4#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-02350

NDE140,ZZE142..IND

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-02220

NDE140,ZZE142..IND

 1
55317A - PANEL, INSTRUMENT SIDE, RH
55317-02230E0

NDE140,ZZE142..IND

GREGE,TRIM4#

 1
55318C - PANEL, INSTRUMENT SIDE, LH
55318-02090E0

NDE140,ZZE142..IND

GREGE,TRIM4#

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-02550

NDE140,ZZE142..IND

 1
55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER
55343-02170

NDE140,ZZE142..IND

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-02180

NDE140,ZZE142..IND

 1
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-02160

NDE140,ZZE142..IND

 1
55356-02160

CE140,NDE140,NZE140,ZRE141,142..IND,PKN

 1
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55357-02150

NDE140,ZZE142..IND

 1
55357-02150

CE140,NDE140,NZE140,ZRE141,142..IND,PKN

 1
55358K - CUSHION, INSTRUMENT PANEL, NO.4
55358-02110

CE140,NDE140,NZE140,ZRE141,142..IND,PKN

 1
55358-02110

NDE140,ZZE142..IND

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-02120E0

NDE140,ZZE142..IND

ASH BROWN,TRIM4#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-02080E0

NDE140,ZZE142..IND

ASH BROWN,TRIM4#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-02160

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
Common parts
90105-08120
90159-60431
90159-60546
90159-70004
90167-50046
90183-05094
90183-06025
90467-10201
90467-12080
91673-80616
93568-55014
94151-80800
Linked diagrams
8202
8416
8715
