ZZE142R-GEPGKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )NDE140,ZZE142..IND ; (0811- )ZZE142..GCC,TAIW ; (0811- )ZRE143,ZZE

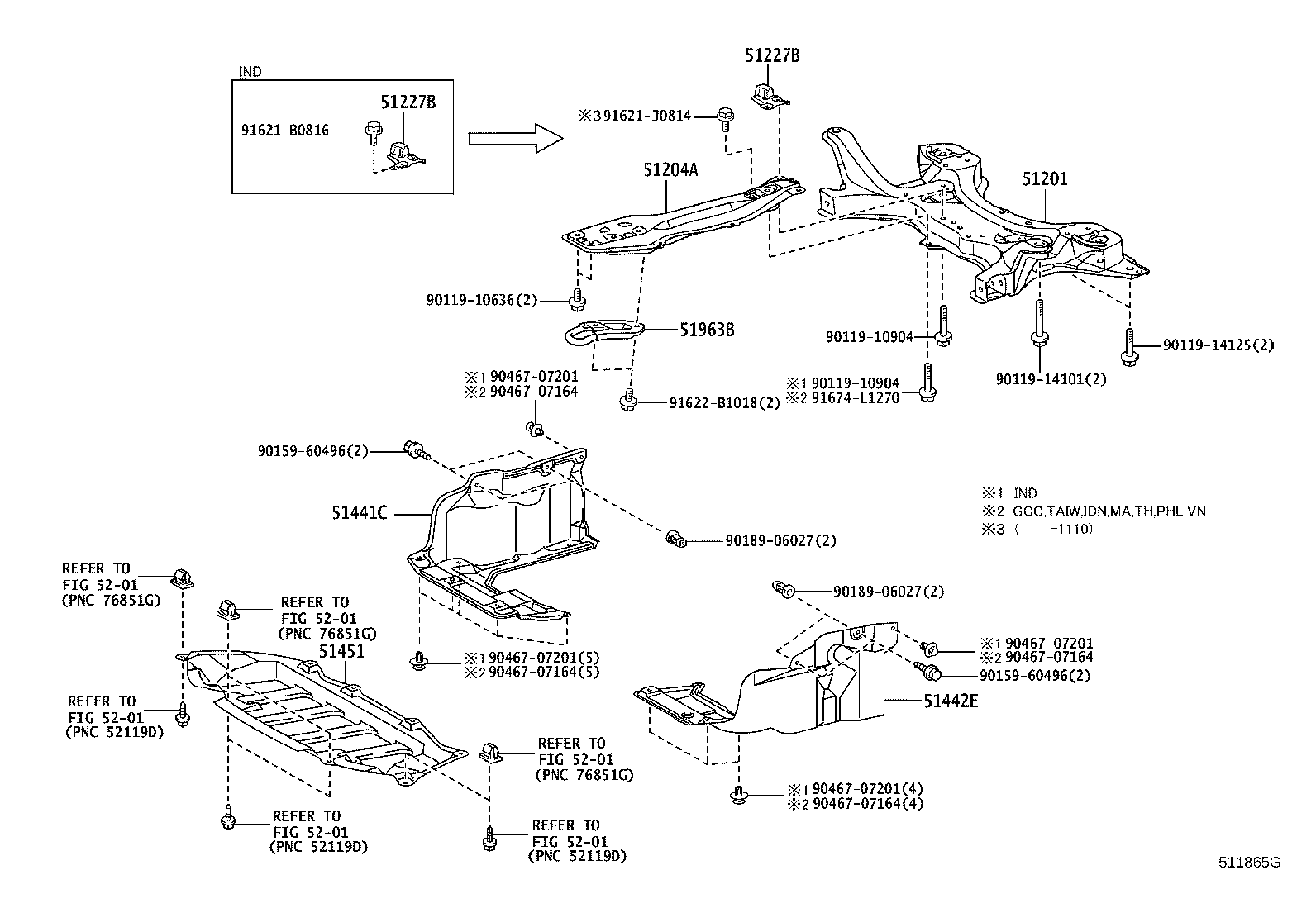

Click highlighted areas on diagram

diagram 51201 51204A 51227B 51227B 51441C 51442E 51451 51963B 5201 5201 5201 5201 5201 5201 9011910636 9011910904 9011910904 9011914101 9011914125 9015960496 9015960496 9018906027 9018906027 9046707164 9046707164 9046707164 9046707164 9046707201 9046707201 9046707201 9046707201 91621B0816 91621J0814 91622B1018 91674L1270
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-12431

ZZE142..IND

 1
51201-12431

ZZE142..IND

 1
51201-02170

ZZE142..IND

 1
51201-02170

ZZE142..IND

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12150

NDE140,ZZE142..IND

 1
51204-12150

NDE140,ZZE142..IND

 1
51204-12150

CE140,NDE140,ZRE141,142..IND,PKN

 1
51204-12150

CE140,NDE140,ZRE141,142..IND,PKN

 1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-12081

CE140,ZRE141,142..IND,PKN

 1
51227-12081

CE140,ZRE141,142..IND,PKN

 1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-12081

CE140,ZRE141,142..IND,PKN

 1
51227-12081

CE140,ZRE141,142..IND,PKN

 1
51441C - COVER, ENGINE UNDER, RH
51441-12240

ZZE142..IND

 1
51441-12240

ZZE142..IND

 1
51442E - COVER, ENGINE UNDER, NO.2
51442-12230

ZZE142..4FC..IND

 1
51442-12230

ZZE142..4FC..IND

 1
51451 - COVER, ENGINE UNDER, NO.4 RH
51451-12110

NDE140,ZZE142..IND

 1
51451-12110

NDE140,ZZE142..IND

 1
51963B - HOOK, TRANSPORT, FRONT RH
51960-02110

NDE140,ZZE142..IND

 1
51960-02110

NDE140,ZZE142..IND

 1
Common parts
90119-10636
90119-10904
90119-14101
90119-14125
90159-60496
90189-06027
90467-07164
90467-07201
91621-B0816
91621-J0814
91622-B1018
91674-L1270
Linked diagrams
5201
