ZZE142R-GEPGKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )IND

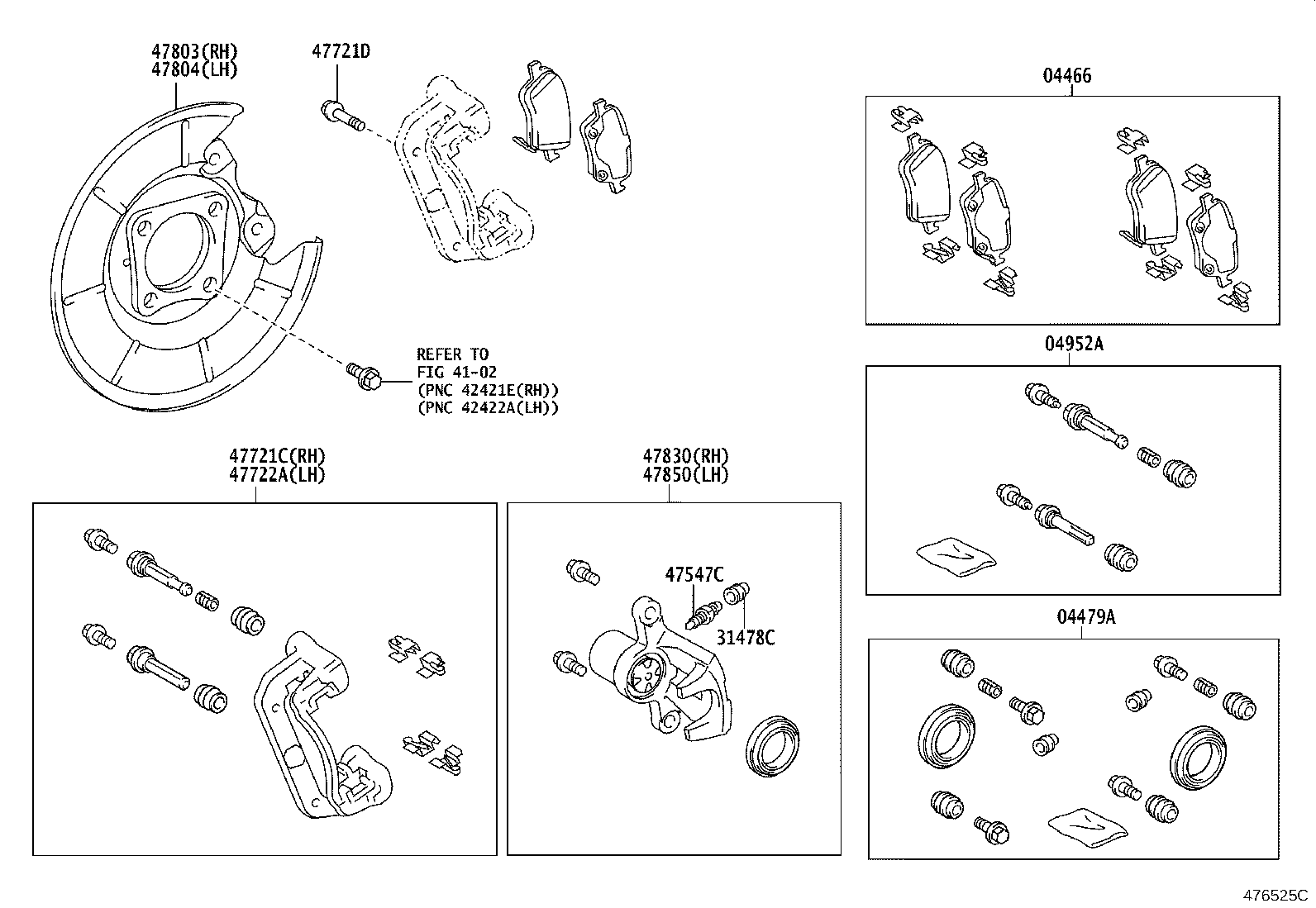

Click highlighted areas on diagram

diagram 04466 04479A 04952A 31478C 4102 47547C 47721C 47721D 47722A 47803 47804 47830 47850
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-02180

ZZE142..IND

MARK GALFER G3409

 1
04466-02181

NDE140,ZZE142..IND

MARK GALFER G3409

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-12230

ZZE141..RHD;ZZE142..4FC

 1
04479-02340

NDE140,ZZE142..IND

 1
04952A - PIN KIT, REAR DISC BRAKE CYLINDER SLIDE
04956-02080

NDE140,ZZE142..IND

 2
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
90069-39009

NDE140,ZZE142..IND

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
90069-39000

NDE140,ZZE142..IND

 2
47721C - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-09030

ZZE142..IND

 1
47821-09060

NDE140,ZZE142..IND

 1
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-10510

NDE140,ZZE142..IND

*10-1.25PX35-30

 4
47722A - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47822-09030

ZZE142..IND

 1
47822-09060

NDE140,ZZE142..IND

 1
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47803-02030

NDE140,ZZE142..IND

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47804-02030

NDE140,ZZE142..IND

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-12220

NDE140,ZZE142..IND

 1
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-12220

ZZE142..IND

 1
47850-12221

NDE140,ZZE142..IND

 1
Linked diagrams
4102
