ZZE142R-GEPGKX (2008)
Toyota Corolla/Altis
(0712- )ZRE141,142,ZZE14#..4FC
U340E,U341E

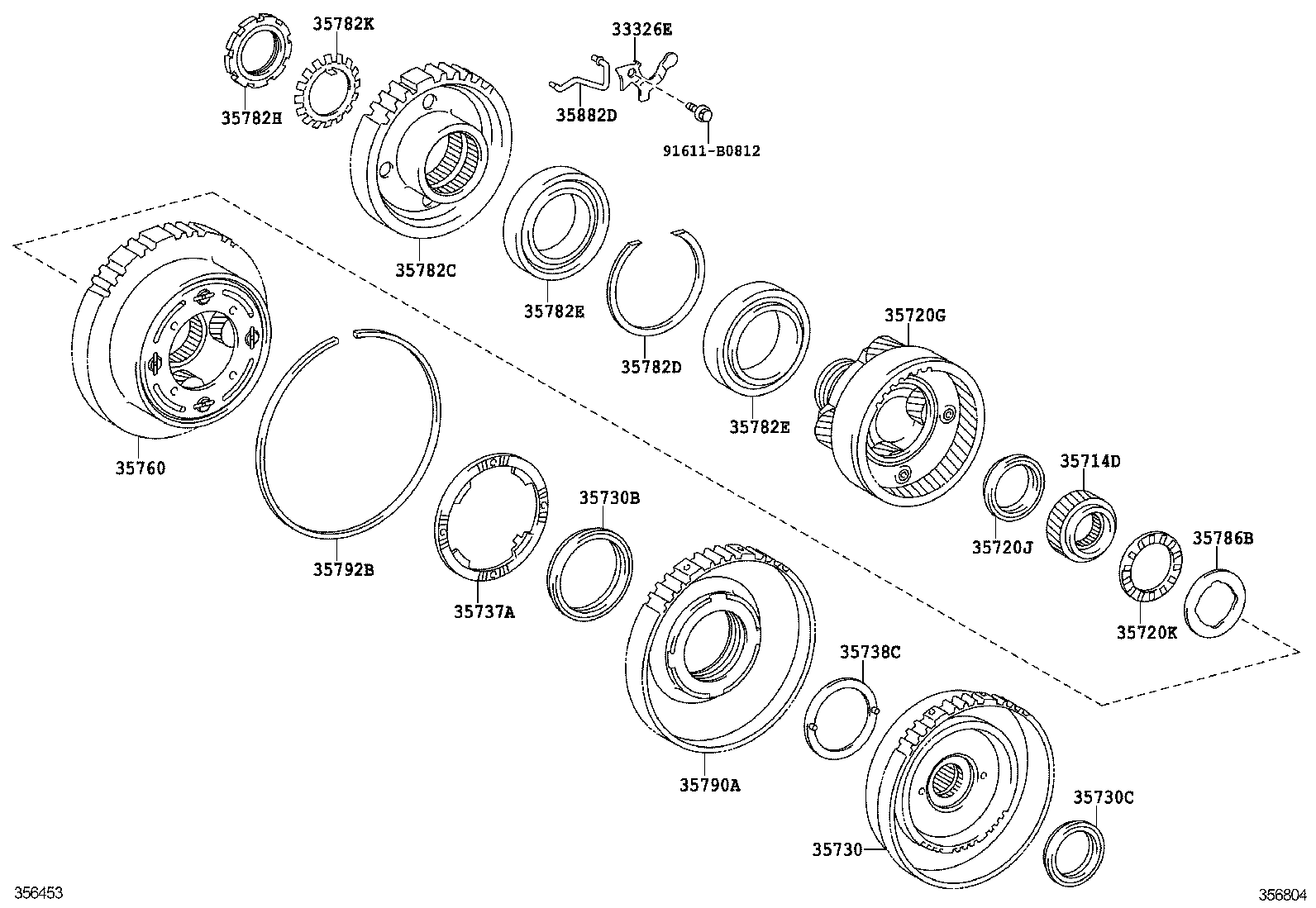

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33326E - PLATE, BEARING LOCK | ||||
| 33326-20010 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35714D - GEAR, FR PLANETARY SUN | ||||
| 35714-52020 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35714-52020 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35720G - GEAR ASSY, PLANETARY | ||||
| 35720-52022 |
ZZE142..4FC |
1 | ||
| 35720-52021 |
ZRE141,142..4FC;ZZE141..16G..TH |
1 | ||
| 35720-52022 |
ZRE141,142,ZZE141..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35720-52021 |
ZZE14#..4FC |
1 | ||
| 35720J - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT) | ||||
| 90374-33006 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 90374-33006 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35720K - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR) | ||||
| 90374-33007 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 90374-33007 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35730 - GEAR ASSY, REAR PLANETARY SUN | ||||
| 35730-52020 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35730-52020 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G | ||||
| 90374-43003 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 90374-43003 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35730C - BEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO. | ||||
| 90374-29002 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 90374-29002 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-52020 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35737-52020 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35738C - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-52010 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35738-52010 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-52011 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35760-52011 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35782C - GEAR, COUNTER DRIVE | ||||
| 35782-52020 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35782-52020 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR) | ||||
| 90520-83001 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 90520-83001 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90363-52005 |
ZZE142..4FC..(IND,PKN) |
2 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90363-52005 |
ZZE142..4FC..(IND,PKN) |
2 | ||
| 35782H - NUT(FOR COUNTER DRIVE GEAR) | ||||
| 90179-40009 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 90179-40009 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35782K - WASHER, LOCK(FOR COUNTER DRIVE GEAR LOCK NUT) | ||||
| 90215-40002 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 90215-40002 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35786B - RACE, THRUST BEARING, NO.2 | ||||
| 35787-52010 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35787-52010 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35790A - CLUTCH ASSY, 1 WAY | ||||
| 35790-52020 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35790-52020 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90520-99053 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 90520-99053 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35882D - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-52020 |
ZZE142..4FC..(IND,PKN) |
1 | ||
| 35882-52020 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| Common parts | ||||
| 91611-B0812 | ||||
