ZZE142R-GEPGKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )1ZZFE..IND

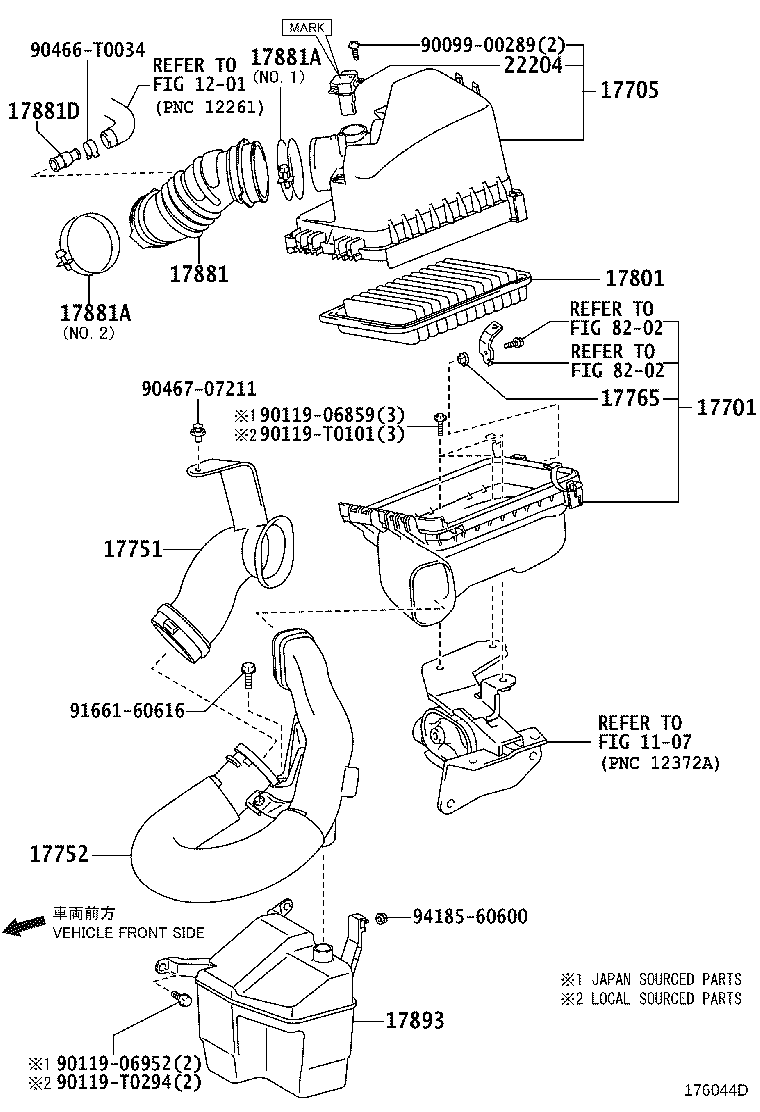

Click highlighted areas on diagram

diagram 1107 1201 17701 17705 17751 17752 17765 17801 17881 17881A 17881A 17881D 17893 22204 8202 8202 9009900289 9011906859 9011906952 90119T0101 90119T0294 90466T0034 9046707211 9166160616 9418560600
Part # Description Qty Price
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0D210

1ZZFE..ZZE142..IND

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0D251

1ZZFE..ZZE142

 1
17705-0D250

1ZZFE..ZZE142..IND

 1
17751 - INLET, AIR CLEANER, NO.1
17751-37060

1ZZFE..ZZE142..IND

 1
17752 - INLET, AIR CLEANER, NO.2
17752-37070

1ZZFE..ZZE142..IND

 1
17765 - STAY, AIR CLEANER, NO.1
17706-22010

1ZZFE..ZZE142..18V..IND;1ZZFE..ZZE142..(18E,18J)..TAIW;3Z#..ZRE143,ZZE141..(16E,20E,20G,20V)..(IDN,MA,PHL,TAIW);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,GLI,LIMO,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN)

 1
17706-21010

1ZZFE..ZZE142..IND

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0M020

1ZZFE..ZZE142..IND

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

1ZZFE..ZZE142..IND

NO.2

 1
96111-10830

1ZZFE..ZZE142..IND

NO.1

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10780

1ZZFE..ZZE142..IND

NO.2

 1
96111-10830

1ZZFE..ZZE142..IND

NO.1

 1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
90406-28001

1ZZFE..ZZE142..IND

 1
17893 - RESONATOR, INTAKE AIR
17893-22030

1ZZFE..ZZE142..IND

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0P010

1ZZFE,3ZZFE..ZZE14#

 1
22204-0P010

1ZZFE..ZZE142

MARK 22204-0P010

 1
22204-31020

1ZZFE..ZZE142

MARK 22204-31020

 1
Common parts
90099-00289
90119-06859
90119-06952
90119-T0101
90119-T0294
90466-T0034
90467-07211
91661-60616
94185-60600
Linked diagrams
1107
1201
8202
