ZZE142R-GEPGKT (2008)

Toyota Corolla/Altis

Production Jan 2008 - Aug 2010
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )RHD

Click highlighted areas on diagram

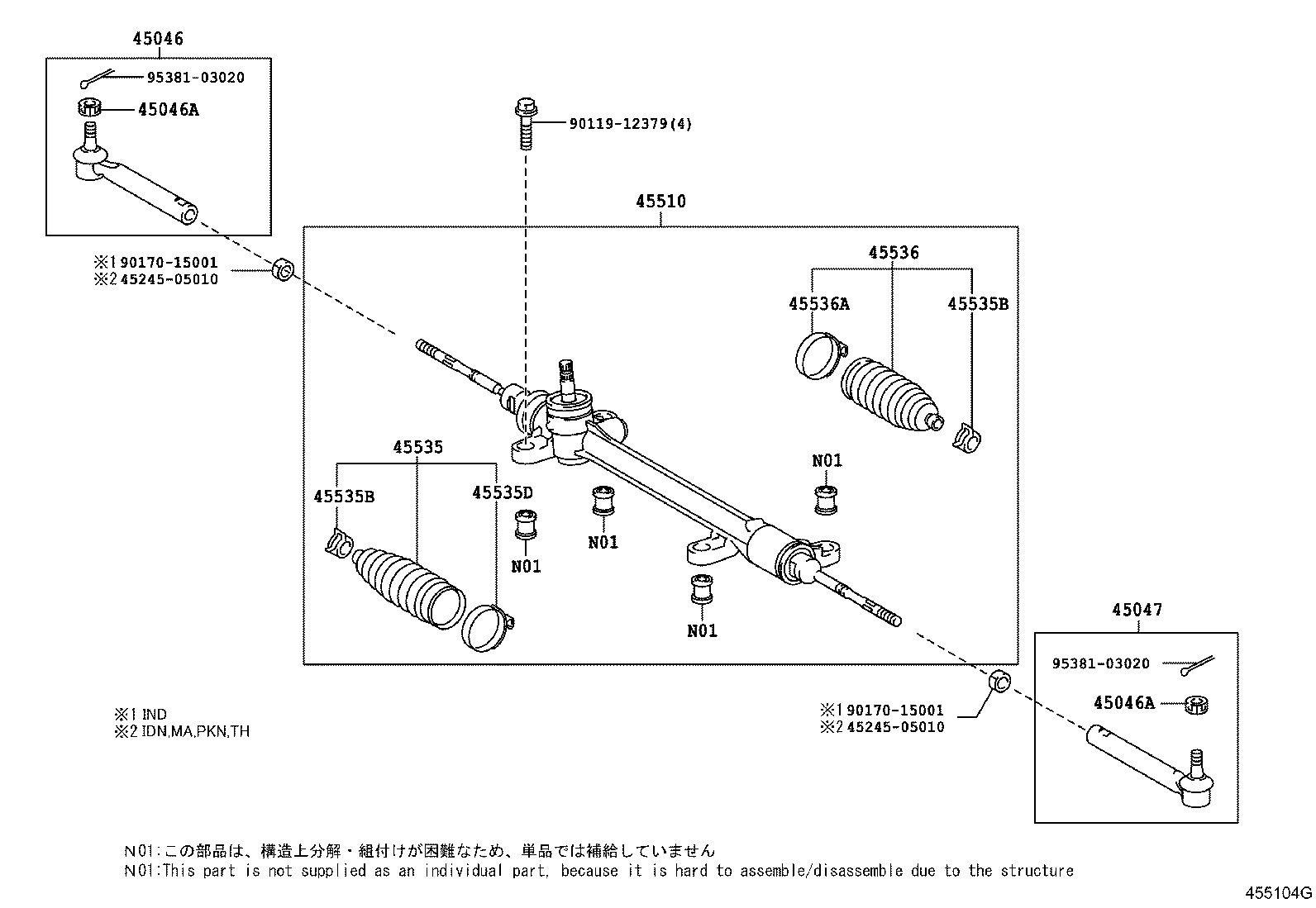

diagram 45046 45046A 45046A 45047 4524505010 4524505010 45510 45535 45535B 45535B 45535D 45536 45536A 9011912379 9017015001 9017015001 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09610

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

(J)

 2
90171-T0004

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

(L)

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

(J)

 2
90171-T0004

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

(L)

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-09610

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
45510 - GEAR ASSY, STEERING
45510-02200

ZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)

 1
45535 - BOOT, STEERING RACK, NO.1
45535-09110

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 2
90467-19021

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI);ZRE141,142..(16E,16G,16V,18E,18J,D,GLI,N,XLI)..(GCC,IDN,MA,PHL,PKN,TAIW,TH)..HTWC

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 2
90467-19021

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI);ZRE141,142..(16E,16G,16V,18E,18J,D,GLI,N,XLI)..(GCC,IDN,MA,PHL,PKN,TAIW,TH)..HTWC

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
45538-02020

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
45536 - BOOT, STEERING RACK, NO.2
45535-09110

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
45538-02020

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
Common parts
45245-05010
90119-12379
90170-15001
95381-03020
