Toyota Corolla/altis ZZE142 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
GR
COROLLA/ALTIS
ZZE142R-GEPEKT (2008)
8401 - SWITCH & RELAY & COMPUTER

ZZE142R-GEPEKT (2008)

Toyota Corolla/Altis

Production Jan 2008 - Aug 2010

Engine 1ZZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 5 OF 8(0801- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
84152 - SWITCH, HEADLAMP LEVELING
84152-12070	ZZE142..18E..TH SINGAPORE SPEC	01/2008 - 11/2009	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-12520	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-0D030	ZZE141..RHD..4FC;ZRE143,ZZE142..(18E,18G,20G,20V)..(IDN,MA,PHL,TH) TYPE B:REFER ILLUST.	01/2008 - 08/2010	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-0D030	ZZE141..RHD..4FC;ZRE143,ZZE142..(18E,18G,20G,20V)..(IDN,MA,PHL,TH) TYPE B:REFER ILLUST.	01/2008 - 08/2010	1
85500 - LIGHTER ASSY, CIGARETTE
85500-20340	CE140,NDE140,NZE140,ZRE143,ZZE14#..4FC,5F,6F	12/2007 - 05/2011	1
85500B - BULB, CIGARETTE LIGHTER
90010-01163	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) 12V 1.2W,W(CAP)	12/2007 - 08/2010	1
Linked diagrams
8302

ILLUST NO. 1 OF 7(0712- )ZZE14#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60020	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) YAZAKI	12/2007 - 08/2010	1
83530-28020	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) DENSO	12/2007 - 08/2010	1
83530-60020	ZRE142..HTWCF;ZRE142..18G..(IDN,MA);ZZE141..(16G,LIMO)..TH;ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH);NZE140,ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,PKN,TAIW,TH)..HTWC YAZAKI	07/2010 - 12/2999	1
84540 - SWITCH ASSY, NEUTRAL START
84540-46010	ZZE14#..4FC	12/2007 - 05/2011	1
89465 - SENSOR, OXYGEN
89465-02210	ZRE143,ZZE14#..4FC,5F	12/2007 - 05/2011	1
89467B - SENSOR, AIR FUEL RATIO
89467-12100	ZZE141..16E..(MA,PHL);ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
89615 - SENSOR, KNOCK CONTROL
89615-20090	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
Common parts
82715-12L60
82715-42710
82715-52A40
90126-08046
90179-06219
90179-08153
90430-18008
91611-60822
91651-40620

ILLUST NO. 2 OF 8(0712- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
85928B - RESISTOR, COOLING FAN
85928-12030	ZZE141..16E..(MA,PHL);ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
Common parts
90119-T0096
91631-B0614
93315-14010

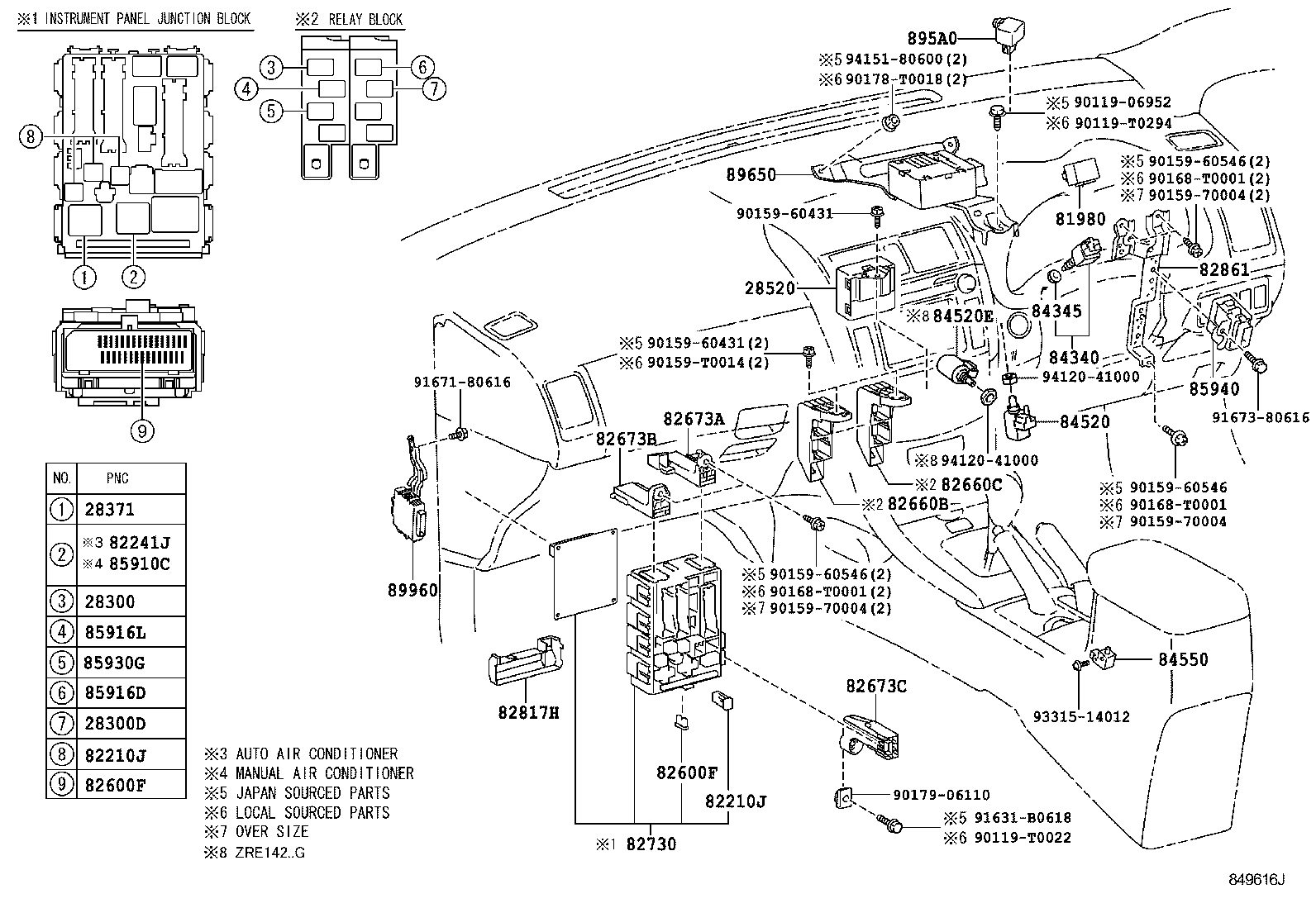

ILLUST NO. 4 OF 8(0801- )RHD

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-28010	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
28371 - RELAY, IGNITION, NO.1
90987-T2009	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-0D050	ZRE143,ZZE14#..IDN,MA,PHL,TH	09/2009 - 08/2010	1
81980-46010	ZZE142..18V..IND;CE140,NZE140,ZRE143;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,GLI,LIMO,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN)	12/2007 - 08/2009	1
82210J - FUSIBLE LINK
90982-08295	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH) 30A,TERM.:FEMALE,PNK	12/2007 - 08/2010	1
90982-08295	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH) 30A,TERM.:FEMALE,PNK	12/2007 - 08/2010	1
82210J - FUSIBLE LINK
90982-08295	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH) 30A,TERM.:FEMALE,PNK	12/2007 - 08/2010	1
90982-08295	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH) 30A,TERM.:FEMALE,PNK	12/2007 - 08/2010	1
82241J - PIN, SHORT
82241-42010	ZZE141..(16G,16V)..PHL;ZRE143,ZZE142..(18E,18G,20G,20V)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
82600F - FUSE, FUSE BLOCK
90982-09020	CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN	12/2007 - 05/2011	1
90982-09025	CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN	12/2007 - 05/2011	1
90982-09021	CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED	07/2010 - 12/2999	1
90982-09021	CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED	12/2007 - 05/2011	1
90982-09023	CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW	12/2007 - 05/2011	1
90982-09022	CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE	12/2007 - 05/2011	1
90982-09024	CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE	12/2007 - 05/2011	1
90982-09024	CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE	07/2010 - 12/2999	1
90982-09020	CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN	07/2010 - 12/2999	1
90982-09023	CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW	07/2010 - 12/2999	1
90982-09025	CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN	07/2010 - 12/2999	1
90982-09022	CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE	07/2010 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09020	CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN	12/2007 - 05/2011	1
90982-09025	CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN	12/2007 - 05/2011	1
90982-09021	CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED	07/2010 - 12/2999	1
90982-09021	CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED	12/2007 - 05/2011	1
90982-09023	CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW	12/2007 - 05/2011	1
90982-09022	CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE	12/2007 - 05/2011	1
90982-09024	CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE	12/2007 - 05/2011	1
90982-09024	CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE	07/2010 - 12/2999	1
90982-09020	CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN	07/2010 - 12/2999	1
90982-09023	CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW	07/2010 - 12/2999	1
90982-09025	CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN	07/2010 - 12/2999	1
90982-09022	CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE	07/2010 - 12/2999	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-02810	ZZE142..TH	01/2008 - 12/2008	1
82730-02M70	ZZE142..TH	12/2008 - 05/2009	1
82730-02M50	ZZE142..18E..TH SINGAPORE SPEC	05/2009 - 08/2010	1
82730-02M40	ZRE143,ZZE142..(18E,18G,20G)..TH	05/2009 - 08/2010	1
82817H - PROTECTOR, WIRING HARNESS
82817-12B50	CE140,NDE140,NZE140,ZRE143,ZZE14#..4FC,5F,6F	12/2007 - 05/2011	1
82861 - BRACKET, COMPUTER INTEGRATION, NO.1
82861-12040	ZRE143,ZZE141..RHD..4FC;ZZE142..(18E,18G,18J)..(IDN,MA,TH)	01/2008 - 08/2010	1
84340 - SWITCH ASSY, STOP LAMP
84340-69075	CE140,NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(IDN,IND,MA,PHL,PKN,TAIW,TH,VN)	12/2007 - 05/2011	1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-0K010	CE140,NDE140,NZE140,ZRE143,ZZE14#..4FC,5F,6F	12/2007 - 05/2011	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-02030	ZRE143,ZZE14#..IDN,MA,TH	01/2008 - 08/2010	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-T2003	ZZE142..18E..TH GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)	01/2008 - 12/2008	1
85916D - RELAY, FOG LAMP
90987-T2001	ZZE142..18G..TH;ZZE142..(18E,18V)..(IDN,PHL,TH)	01/2008 - 12/2008	1
90987-T2001	ZZE142..TH GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)	01/2008 - 12/2008	1
90987-T2001	ZZE142..18E..TH SINGAPORE SPEC	01/2008 - 12/2008	1
90987-T2001	ZZE142..18E..TH FRONT FOG LAMP-WITHOUT	01/2008 - 12/2008	1
85930G - RELAY, ACC
90987-T2001	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
90987-02027	ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC (J)	07/2010 - 12/2999	1
90987-T2001	ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..18G..(IDN,MA,VN);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC (L)	07/2010 - 12/2999	1
85940 - RELAY ASSY, WINDSHIELD WIPER
85940-12160	ZZE142..18E..TH SINGAPORE SPEC	01/2008 - 08/2010	1
895A0 - RELAY ASSY, STOP LAMP CONTROL
895A0-28010	ZZE142..18V..IND;CE140,NZE140,ZRE143;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,LIMO)..(IDN,IND,MA,PHL,PKN,TH,VN)	12/2007 - 09/2009	1
895A0-46020	ZRE143,ZZE14#..IDN,MA,PHL,TH	10/2009 - 08/2010	1
895A0-46020	ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..IDN,IND,MA,TAIW,VN;ZRE141,142..(16E,16G,16V,18E,D,N)..(MA,PHL,PKN,TH)..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)	07/2010 - 12/2999	1
89650 - COMPUTER ASSY, POWER STEERING
89650-12660	ZZE14#..(16G,18E)..TH SINGAPORE SPEC	01/2008 - 08/2010	1
89650-12570	ZZE14#..(16G,16J,18E,18G)..TH	01/2008 - 08/2010	1
89960 - COMPUTER ASSY, HEADLAMP LEVELING
89960-12470	ZZE142..18E..TH SINGAPORE SPEC	11/2009 - 08/2010	1
Common parts
90119-06952
90119-T0022
90119-T0294
90159-60431
90159-60546
90159-70004
90159-T0014
90168-T0001
90178-T0018
90179-06110
91631-B0618
91671-80616
91673-80616
93315-14012
94120-41000
94151-80600

ILLUST NO. 8 OF 8(0712- )

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & LUGGAGE

Part #	Description	Period	Qty
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-02070	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-02070	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-02070	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-02070	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-06050	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-06050	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-06050	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-06050	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-0D111	ZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V)..(IDN,MA,TH)	01/2008 - 08/2010	1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-0D111	ZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V)..(IDN,MA,TH)	01/2008 - 08/2010	1
89407C - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR
89407-12010	ZZE142..18E..TH SINGAPORE SPEC	11/2009 - 08/2010	1
Common parts
48966-68010
90159-40085
90164-40103
90164-T0005
90166-70001
91631-B0820
94150-10641

ILLUST NO. 6 OF 8(0712- )

Click highlighted areas on diagram

STEERING

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010	ZZE142..18J..IDN;CE140,NZE140,ZZE14#..IND,MA,PHL,PKN,TH,VN	12/2007 - 09/2008	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-02520	ZZE142..TH GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)	01/2008 - 12/2008	1
84140-06430	ZZE142..TH	01/2008 - 12/2008	1
84140-02520	ZZE142..TH	12/2008 - 08/2010	1
84140-06370	ZZE142..18E..TH SINGAPORE SPEC	01/2008 - 08/2010	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-02520	ZZE142..TH GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)	01/2008 - 12/2008	1
84140-06430	ZZE142..TH	01/2008 - 12/2008	1
84140-02520	ZZE142..TH	12/2008 - 08/2010	1
84140-06370	ZZE142..18E..TH SINGAPORE SPEC	01/2008 - 08/2010	1
84250A - SWITCH ASSY, STEERING PAD
84250-12060	ZZE142..18E..TH SINGAPORE SPEC	12/2008 - 08/2010	1
84250-12060	ZZE142..(18E,18G)..TAIW;ZZE142..(18G,18V,G)..(IDN,IND,MA,PHL,TH,VN);NDE140,ZRE143,ZZE141..(4FC,5F,6F)..(16G,16V,20E,20G,E,G)..(IND,PHL,TAIW)	12/2007 - 05/2011	1
84250-12060	ZZE142..18E..TH	12/2007 - 12/2008	1
84250A - SWITCH ASSY, STEERING PAD
84250-12060	ZZE142..18E..TH SINGAPORE SPEC	12/2008 - 08/2010	1
84250-12060	ZZE142..(18E,18G)..TAIW;ZZE142..(18G,18V,G)..(IDN,IND,MA,PHL,TH,VN);NDE140,ZRE143,ZZE141..(4FC,5F,6F)..(16G,16V,20E,20G,E,G)..(IND,PHL,TAIW)	12/2007 - 05/2011	1
84250-12060	ZZE142..18E..TH	12/2007 - 12/2008	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K050	ZZE142..18E..TH SINGAPORE SPEC	12/2008 - 03/2010	1
84306-0K050	ZZE142..(18E,18V)..(IDN,PHL,TH)	01/2008 - 12/2008	1
84306-0K050	ZZE141..(16G,16V)..PHL;ZZE142..4FC..(18V,ALT)..(IND,PKN);ZRE143,ZZE142..(18G,20G,20V,G)..(IDN,IND,MA,PHL,TH,VN)	01/2008 - 03/2010	1
84306-0K030	ZZE142..18E..TH GRADE MARK : 1.8J,1.8G OR 1.8E(THAILAND)&SRS AIR BAG-WITHOUT	01/2008 - 12/2008	1
84306-0K030	ZZE142..18E..TH SRS AIR BAG-WITHOUT	12/2008 - 08/2010	1
84306-06080	ZZE142..18E..TH	12/2008 - 08/2010	1
84306-0K051	ZZE14#..(16G,18E)..TH SINGAPORE SPEC	03/2010 - 08/2010	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200	ZRE143..4FC..VN;ZZE142..(18E,18J)..(IDN,TAIW);ZRE143,ZZE142..(4FC,5F)..(18E,18G,18J,18V,20G,ALT,G,GLI,XLI)..(GCC,IND,MA,PHL,PKN,TH,VN);CE140,NDE140,NZE140,ZRE143,ZZE141..(4FC,5F,6F)..(16E,16G,16J,16V,20D,20DSA,20E,E,G,GLI,LIMO,XLI)	12/2007 - 05/2011	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-06160	ZZE142..18E..TH SINGAPORE SPEC	01/2008 - 08/2010	1
84652-06230	ZZE142..18G..(IDN,MA);ZRE143,ZZE14#..(16G,18E,20G)..TH	01/2008 - 08/2010	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-06160	ZZE142..18E..TH SINGAPORE SPEC	01/2008 - 08/2010	1
84652-06230	ZZE142..18G..(IDN,MA);ZRE143,ZZE14#..(16G,18E,20G)..TH	01/2008 - 08/2010	1
Common parts
90159-50199
90159-50265
90159-T0007
90168-40113
90168-40129
Linked diagrams
4501

ILLUST NO. 7 OF 8(0712- )

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-06170E0	ZZE142..18E..TH SINGAPORE SPEC,GREGE,TRIM4#	01/2008 - 08/2010	1
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-06170E0	ZZE142..18E..TH SINGAPORE SPEC,GREGE,TRIM4#	01/2008 - 08/2010	1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-06180E0	ZZE142..18E..TH SINGAPORE SPEC,GREGE,TRIM4#	01/2008 - 08/2010	1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-06180E0	ZZE142..18E..TH SINGAPORE SPEC,GREGE,TRIM4#	01/2008 - 08/2010	1
84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR)
84920-06040E0	ZZE142..18E..TH SINGAPORE SPEC,GREGE,TRIM4#	01/2008 - 08/2010	1
84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR)
84920-06040E0	ZZE142..18E..TH SINGAPORE SPEC,GREGE,TRIM4#	01/2008 - 08/2010	1
84922B - SWITCH, FRONT POWER SEAT, RH
84922-06070	ZZE142..18E..TH SINGAPORE SPEC	01/2008 - 08/2010	1
Common parts
90167-40044
90167-T0019

ILLUST NO. 3 OF 8(0712- )

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

Part #	Description	Period	Qty
82210J - FUSIBLE LINK
90982-08295	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH) 30A,TERM.:FEMALE,PNK	12/2007 - 08/2010	1
90982-08295	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH) 30A,TERM.:FEMALE,PNK	12/2007 - 08/2010	1
82600F - FUSE, FUSE BLOCK
90982-09020	CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN	12/2007 - 05/2011	1
90982-09025	CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN	12/2007 - 05/2011	1
90982-09021	CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED	07/2010 - 12/2999	1
90982-09021	CE140,NDE140,NZE140,ZRE14#,ZZE14# 10A,MINI FUSE,RED	12/2007 - 05/2011	1
90982-09023	CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW	12/2007 - 05/2011	1
90982-09022	CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE	12/2007 - 05/2011	1
90982-09024	CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE	12/2007 - 05/2011	1
90982-09024	CE140,NDE140,NZE140,ZRE14#,ZZE14# 25A,MINI FUSE	07/2010 - 12/2999	1
90982-09020	CE140,NDE140,NZE140,ZRE14#,ZZE14# 7.5A,MINI FUSE,BROWN	07/2010 - 12/2999	1
90982-09023	CE140,NDE140,NZE140,ZRE14#,ZZE14# 20A,MINI FUSE,YELLOW	07/2010 - 12/2999	1
90982-09025	CE140,NDE140,NZE140,ZRE14#,ZZE14# 30A,MINI FUSE,GRN	07/2010 - 12/2999	1
90982-09022	CE140,NDE140,NZE140,ZRE14#,ZZE14# 15A,MINI FUSE,BLUE	07/2010 - 12/2999	1
82616 - PULLER, FUSE
82616-58010	CE140,NDE140,NZE140,ZRE14#,ZZE14#	12/2007 - 05/2011	1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-12280	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)	12/2007 - 05/2011	1
82620-12280	ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,TAIW;ZRE141,142..(16V,18E)..(PHL,TH)..HTWC;ZRE141..(16E,16G,D,N,XLI)..(GCC,MA,PKN,TH);CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)	07/2010 - 12/2999	1
82630 - HOLDER ASSY, FUSE
82631-12090	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.3	12/2007 - 05/2011	1
82631-12080	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.2	12/2007 - 05/2011	1
82631-12070	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.1	12/2007 - 05/2011	1
82630 - HOLDER ASSY, FUSE
82631-12090	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.3	12/2007 - 05/2011	1
82631-12080	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.2	12/2007 - 05/2011	1
82631-12070	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.1	12/2007 - 05/2011	1
82630 - HOLDER ASSY, FUSE
82631-12090	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.3	12/2007 - 05/2011	1
82631-12080	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.2	12/2007 - 05/2011	1
82631-12070	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI) NO.1	12/2007 - 05/2011	1
82641C - RELAY, INTEGRATION NO.2
82641-47020	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)	12/2007 - 05/2011	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-12410	ZZE14#..(16E,18G)..(IDN,MA,PHL);ZZE14#..(16G,16J,16V,18E,18J)..(IDN,PHL,TH)	01/2008 - 08/2010	1
82662-12420	ZZE142..18E..TH SINGAPORE SPEC	01/2008 - 08/2010	1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-12100	NZE140;ZRE143,ZZE14#..(4FC,5F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,GLI,XLI)..(GCC,IDN,MA,PHL,PKN,TAIW,TH,VN)	12/2007 - 04/2011	1
82741B - BLOCK, ENGINE ROOM RELAY
82741-12110	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)	12/2007 - 05/2011	1
82824L - PIN, SHORT
82824-20140	CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)	12/2007 - 05/2011	1
85916P - RELAY, HEADLAMP
90987-T2002	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
85926 - RELAY, HEADLAMP DIMMER
90987-T2003	ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
85927 - RELAY, COOLING FAN
90987-T2001	ZZE141..16E..(MA,PHL);ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
85927A - RELAY, COOLING FAN, NO.2
90080-87009	ZZE141..16E..(MA,PHL);ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
85934 - RELAY, MAGNET-CLUTCH
90987-02028	ZZE141..16E..(MA,PHL);ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
Common parts
91671-80616

ZZE142R-GEPEKT (2008)

ILLUST NO. 5 OF 8(0801- )RHD

ILLUST NO. 1 OF 7(0712- )ZZE14#

ILLUST NO. 2 OF 8(0712- )

ILLUST NO. 4 OF 8(0801- )RHD

ILLUST NO. 8 OF 8(0712- )

ILLUST NO. 6 OF 8(0712- )

ILLUST NO. 7 OF 8(0712- )

ILLUST NO. 3 OF 8(0712- )

Part Price Details
