ZZE142R-GEPEKT (2008)

Toyota Corolla/Altis

Production Jan 2008 - Aug 2010
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0712- )

Click highlighted areas on diagram

DOOR TRIM

diagram 67603 67603B 67603C 67604 67627 67628 67673B 67674B 68173B 68174A 7401 9015960303 90159T0013 9016450031 9018906018 90189T0011
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-02L50E2

ZZE14#..(16G,18E)..TH

SINGAPORE SPEC,GREGE,TRIM4#

 1
67630-02L70E0

ZRE143..IDN,PHL,TH;ZZE14#..(16G,18E,18G)..TH

GREGE,TRIM4#

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-T0019

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 16
67603C - CAP(FOR REAR DOOR TRIM BOARD)
74223-02040E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

GREGE,TRIM4#

 2
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-02L50E2

ZZE14#..(16G,18E)..TH

SINGAPORE SPEC,GREGE,TRIM4#

 1
67640-02L70E0

ZRE143..IDN,PHL,TH;ZZE14#..(16G,18E,18G)..TH

GREGE,TRIM4#

 1
67627 - BRACKET, REAR DOOR TRIM, RH
67625-02140

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
67628 - BRACKET, REAR DOOR TRIM, LH
67625-02140

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
67673B - GARNISH, REAR DOOR FRAME, RH
67673-48010

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
67674B - GARNISH, REAR DOOR FRAME, LH
67674-48010

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-02170

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-02140

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
Common parts
90159-60303
90159-T0013
90164-50031
90189-06018
90189-T0011
Linked diagrams
7401

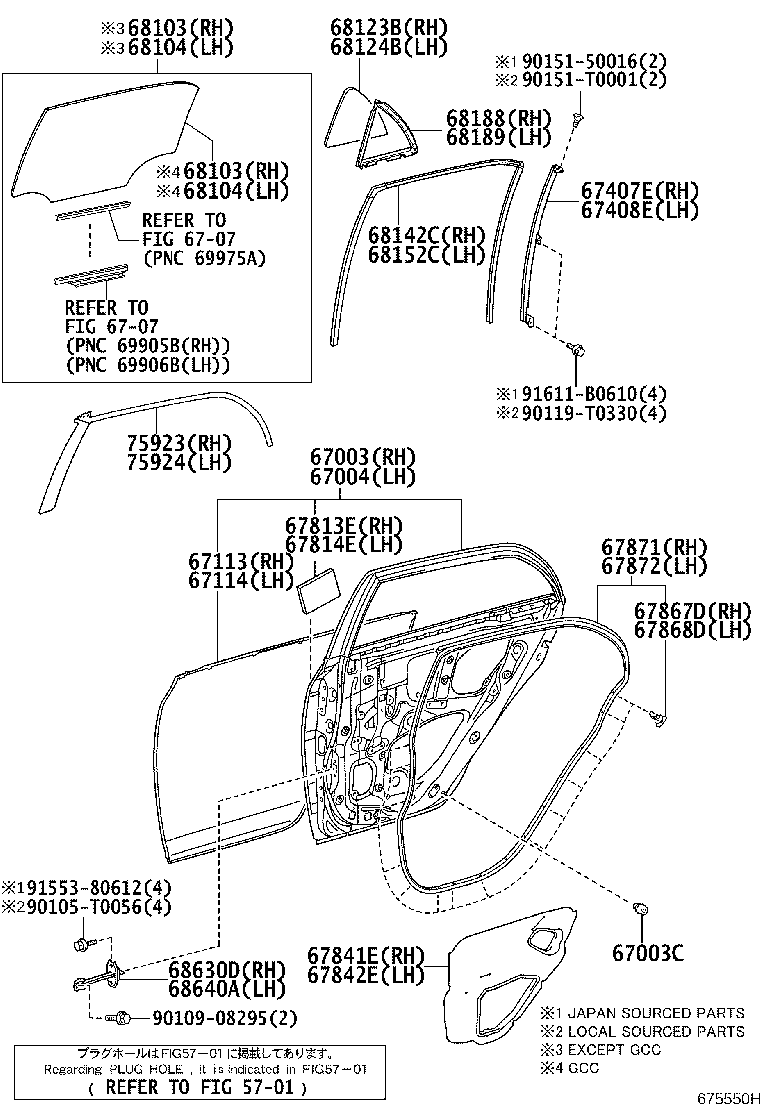

ILLUST NO. 1 OF 2(0712-1211)IDN,MA,PHL,TH ; (0712- )GCC,IND,PKN,TAIW,VN

Click highlighted areas on diagram

DOOR PANEL

diagram 5701 67003 67003C 67004 6707 6707 67113 67114 67407E 67408E 67813E 67814E 67841E 67842E 67867D 67868D 67871 67872 68103 68103 68104 68104 68123B 68124B 68142C 68152C 68188 68189 68630D 68640A 75923 75924 90105T0056 9010908295 90119T0330 9015150016 90151T0001 9155380612 91611B0610
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-02340

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

 1
67003-02340

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..IDN,IND,MA,TAIW,VN;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G);ZRE141,142..(16E,16G,16V,18E)..(MA,PHL,TH)..HTWC

 1
67003C - CUSHION, REAR DOOR PANEL
90541-09143

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 2
90541-09124

CE140,NZE140,ZZE14#

 2
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-02340

ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..IDN,IND,MA,TAIW,VN;NDE140,ZRE141,143..(6F,CVFC)..(16J,20G,20V,E,G);ZRE141,142..(16E,16G,16V,18E)..(MA,PHL,TH)..HTWC

 1
67004-02340

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

 1
67113 - PANEL, REAR DOOR, OUTER RH
67113-02160

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
67114 - PANEL, REAR DOOR, OUTER LH
67114-02160

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-02070

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-02070

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
67813E - SHEET, QUARTER PANEL SILENCER, RH
67817-47010

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
67814E - SHEET, QUARTER PANEL SILENCER, LH
67817-47010

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-02200

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-02180

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67868-02020

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 15
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150

ZRE143,ZZE14#..IDN,MA,PHL,TH

 15
67868-02020

ZZE142..18V..IND;ZZE142..(18E,18J)..TAIW;ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,LIMO)..(IDN,IND,MA,PHL,PKN,TH,VN);CE140,NZE140,ZRE143,ZZE141..(16E,20D,20DSA,20E,20G,20V,GLI,XLI)..(IDN,MA,PHL,PKN,TAIW)

 15
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-02190

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-02190

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-02161

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

*TEM,T=3.5,GREEN

 1
68103-02160

ZZE14#..IDN,MA,PHL,TH

*TEM,T=3.5,GREEN

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68103-02161

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

*TEM,T=3.5,GREEN

 1
68103-02160

ZZE14#..IDN,MA,PHL,TH

*TEM,T=3.5,GREEN

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-02261

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

*TEM,T=3.5,GREEN

 1
68104-02260

ZZE14#..IDN,MA,PHL,TH

*TEM,T=3.5,GREEN

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68104-02261

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

*TEM,T=3.5,GREEN

 1
68104-02260

ZZE14#..IDN,MA,PHL,TH

*TEM,T=3.5,GREEN

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-02230

ZZE14#..IDN,MA,PHL,TH

*TEM,T=3.5 GREEN

 1
68123-02231

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

*TEM,T=3.5 GREEN

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-02230

ZZE14#..IDN,MA,PHL,TH

*TEM,T=3.5 GREEN

 1
68124-02231

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

*TEM,T=3.5 GREEN

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-02240

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-02240

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-02130

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-02130

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
68630D - CHECK ASSY, REAR DOOR, RH
68630-02180

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
68640A - CHECK ASSY, REAR DOOR, LH
68630-02180

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
75923 - TAPE, BLACK OUT, NO.2 RH
75923-02180

ZZE141..5F..PHL;ZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..4FC..(16E,16G,16V,20G,20V)..(IDN,MA,PHL,TH)

 1
75924 - TAPE, BLACK OUT, NO.2 LH
75924-02180

ZZE141..5F..PHL;ZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..4FC..(16E,16G,16V,20G,20V)..(IDN,MA,PHL,TH)

 1
Common parts
90105-T0056
90109-08295
90119-T0330
90151-50016
90151-T0001
91553-80612
91611-B0610
Linked diagrams
5701
6707
