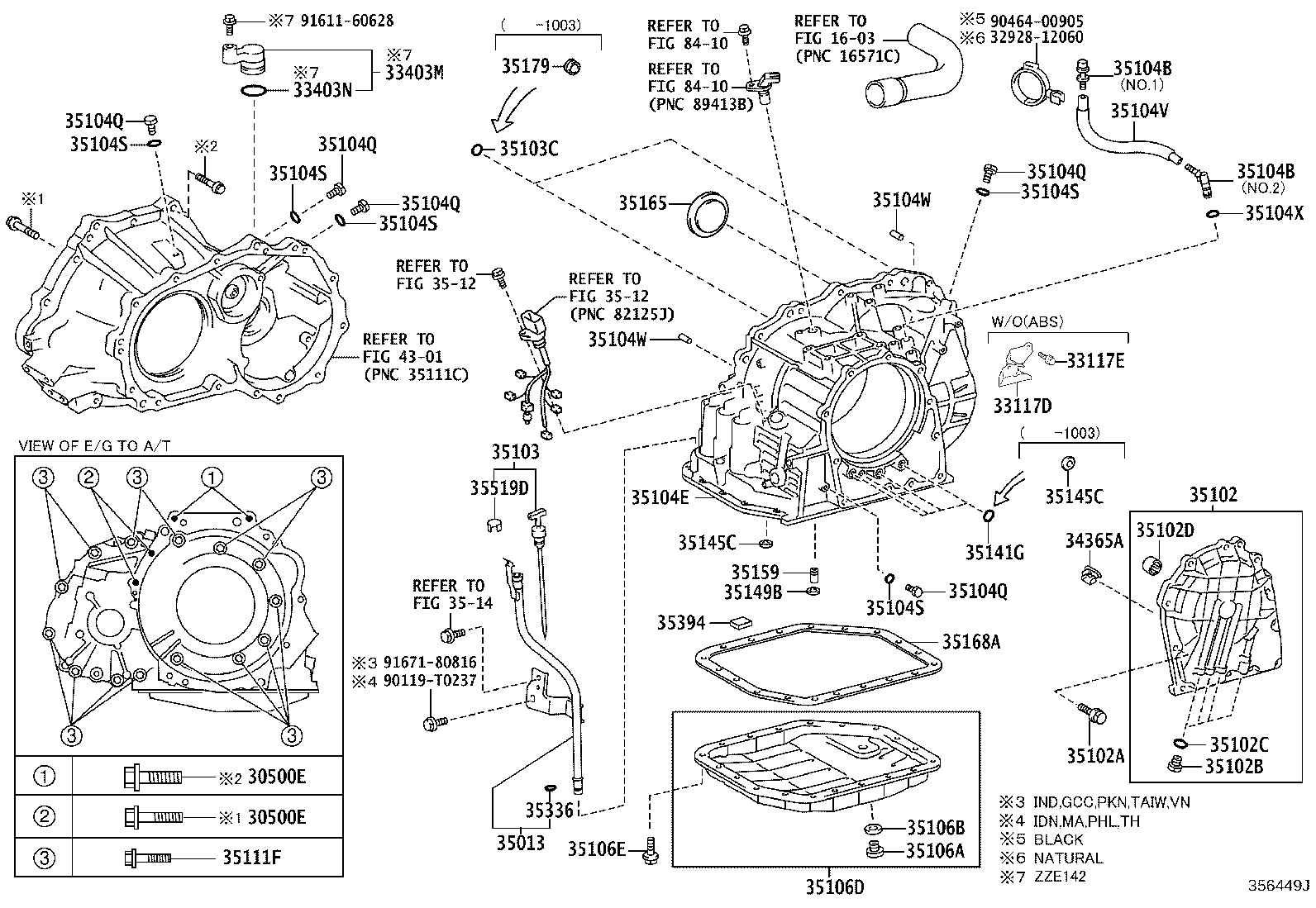

ZZE142R-GEPEKT (2008)
Toyota Corolla/Altis
(0712- )ZZE14#..4FC
U341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91642-81055 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) *10-1.25PX55-30 |
2 | ||
| 90119-T0214 |
ZZE14#..4FC..(IDN,MA,PHL,TH) *12-1.25PX55-30 |
2 | ||
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91642-81055 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) *10-1.25PX55-30 |
2 | ||
| 90119-T0214 |
ZZE14#..4FC..(IDN,MA,PHL,TH) *12-1.25PX55-30 |
2 | ||
| 33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) | ||||
| 33403-0D010 |
ZRE143,ZZE142..(18E,18G,20G,20V)..(IDN,MA,PHL,TH) |
1 | ||
| 33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 90301-T0044 |
ZRE143,ZZE142..(18E,18G,20G,20V)..(IDN,MA,PHL,TH) |
1 | ||
| 34365A - RETAINER, OUTER RACE | ||||
| 34365-52012 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
1 | ||
| 34365-52012 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-02070 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
1 | ||
| 35102 - COVER SUB-ASSY, TRANSAXLE REAR | ||||
| 35102-52020 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
1 | ||
| 35102-52020 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08365 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) *8-1.25PX28-20 |
11 | ||
| 90105-08365 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) *8-1.25PX28-20 |
11 | ||
| 35102B - PLUG(FOR TRANSAXLE REAR COVER) | ||||
| 90341-08001 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
4 | ||
| 90341-08001 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
4 | ||
| 35102C - RING, O(FOR TRANSAXLE REAR COVER PULG) | ||||
| 90301-06196 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
4 | ||
| 90301-06196 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
4 | ||
| 35102D - BEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER) | ||||
| 90364-14007 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
1 | ||
| 90364-14007 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-02150 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
1 | ||
| 35103C - RING, O | ||||
| 90301-06008 |
ZZE14#..4FC..(IDN,MA,PHL,TH) |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03166 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) NO.2 |
1 | ||
| 90930-03149 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) NO.1 |
1 | ||
| 90930-03149 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) NO.1 |
1 | ||
| 90930-03166 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) NO.2 |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03166 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) NO.2 |
1 | ||
| 90930-03149 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) NO.1 |
1 | ||
| 90930-03149 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) NO.1 |
1 | ||
| 90930-03166 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) NO.2 |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-20132 |
ZZE14#..4FC..(IDN,MA,PHL,TH) |
1 | ||
| 35104-20131 |
ZZE142..18V..IND;ZZE142..(18E,18J)..TAIW;ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,ALT,GLI,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN) |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
5 | ||
| 90341-08001 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
5 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
5 | ||
| 90341-08001 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
5 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
5 | ||
| 90341-08001 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
5 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
5 | ||
| 90341-08001 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
5 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
5 | ||
| 90341-08001 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
5 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
5 | ||
| 90301-06196 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
5 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
5 | ||
| 90301-06196 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
5 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
5 | ||
| 90301-06196 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
5 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
5 | ||
| 90301-06196 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
5 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
5 | ||
| 90301-06196 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
5 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 35121-12070 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
1 | ||
| 35121-12070 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10017 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
2 | ||
| 90250-10017 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
2 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10017 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
2 | ||
| 90250-10017 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
2 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
ZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH) |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 90341-18016 |
ZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH) |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90430-18008 |
ZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH) |
1 | ||
| 90430-18008 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-52020 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35106-52020 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
19 | ||
| 90119-06173 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
19 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-08071 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) *8-1.25PX30-25 |
14 | ||
| 90105-08071 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) *8-1.25PX30-25 |
1 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-10189 |
ZZE14#..4FC..(IDN,MA,PHL,TH) |
4 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-21010 |
ZZE14#..4FC..(IDN,MA,PHL,TH) |
1 | ||
| 35145-21010 |
ZZE142..18V..IND;ZZE142..(18E,18J)..TAIW;ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,ALT,GLI,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN) |
5 | ||
| 35145-21010 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35145C - GASKET, TRANSAXLE CASE | ||||
| 35145-21010 |
ZZE14#..4FC..(IDN,MA,PHL,TH) |
1 | ||
| 35145-21010 |
ZZE142..18V..IND;ZZE142..(18E,18J)..TAIW;ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,ALT,GLI,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN) |
5 | ||
| 35145-21010 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35149B - GASKET, TRANSAXLE CASE 2ND BRAKE | ||||
| 35149-21010 |
ZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH) |
1 | ||
| 35149-21010 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-21010 |
ZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH) |
1 | ||
| 35159-21010 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35165 - PLATE, TRANSMISSION CASE, NO.1 | ||||
| 35165-52030 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
1 | ||
| 35165-52030 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-52020 |
ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH) |
1 | ||
| 35168-52020 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35179 - GASKET, OVERDRIVE BRAKE | ||||
| 35179-32010 |
ZZE142..18V..IND;ZZE142..(18E,18J)..TAIW;ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,ALT,GLI,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN) |
2 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
ZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH) |
1 | ||
| 90301-09173 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
ZZE141..16G..TH;ZRE141,142..4FC..(16E,16G,16V,D,GLI,N,XLI) |
2 | ||
| 35394-30011 |
ZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH) |
2 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-41010 |
ZRE143,ZZE14#..4FC..(16E,16G,16J,16V,18E,18G,20G,20V)..(IDN,MA,PHL,TH) |
1 | ||
| Common parts | ||||
| 32928-12060 | ||||
| 90119-T0237 | ||||
| 90464-00905 | ||||
| 91611-60628 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3512 | ||||
| 3514 | ||||
| 4301 | ||||
| 8410 | ||||
