ZZE142R-GEMDKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0712- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(0808- )ZZE142..18J,ALT..IND,PKN ; (0808-)CE140,NZE140,ZRE141,142..IND,PKN

Click highlighted areas on diagram

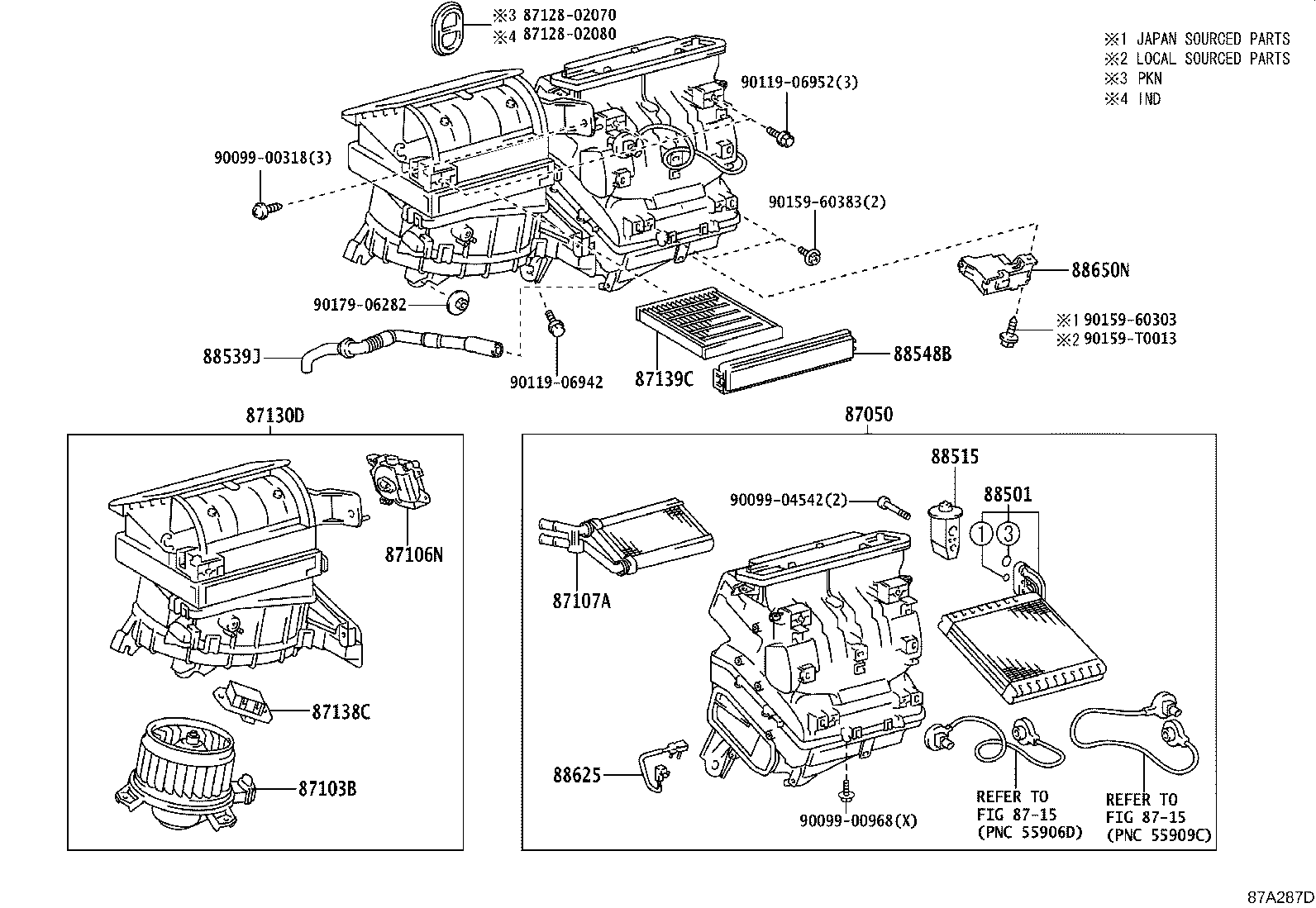

MANUAL AIR CONDITIONER

diagram 87050 87103B 87106N 87107A 8712802070 8712802080 87130D 87138C 87139C 8715 8715 88501 88515 88539J 88548B 88625 88650N 9009900318 9009900968 9009904542 9011906942 9011906952 9015960303 9015960383 90159T0013 9017906282
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02D10

ZZE142..(18G,18V,G)..IND

 1
87050-02D00

ZZE142..18J..IND

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02340

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
87103-02341

NDE140,ZZE142..18G,18V,E,G

 1
87103-02441

ZZE142..18J

 1
87103-02410

ZRE141,142,ZZE141..RHD..(4FC,5F,6F)

 1
87103-02440

ZZE142..18J..IND

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-02510

ZZE142..18J..IND

 1
87106-02520

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K040

NDE140,ZZE142..IND

 1
87130D - BLOWER ASSY
87130-02600

ZZE142..18J..IND

 1
87130-02610

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
87138C - RESISTOR, BLOWER
87138-0K090

ZRE141..6F..TH;CE140,NZE140,ZRE141,142,ZZE141..RHD..(16E,16G,18J,20D,20DSA,D,GLI,LIMO,N,XLI)

 1
87139C - FILTER, CLEAN AIR
87139-02060

NDE140,ZZE142..IND

 1
88515 - VALVE, COOLER EXPANSION
88515-02330

ZZE142..IND

 1
88515-02240

ZZE142..IND

 1
88539J - HOSE, DRAIN COOLER
88539-02210

NDE140,ZZE142..IND

 1
88548B - CASE, AIR FILTER
88548-02160

NDE140,ZZE142..IND

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

CE140,NZE140,ZZE14#..IDN,IND,MA,PHL,PKN,TH,VN

 1
88620-02110

NDE140,ZZE142..IND

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-02610

ZZE142..18J..IND

 1
88650-02620

ZZE142..(18G,18V,G)..IND

 1
Common parts
87128-02070
87128-02080
90099-00318
90099-00968
90099-04542
90119-06942
90119-06952
90159-60303
90159-60383
90159-T0013
90179-06282
Linked diagrams
8715
