ZZE142R-GEMDKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 7(0712- )ZZE14#

Click highlighted areas on diagram

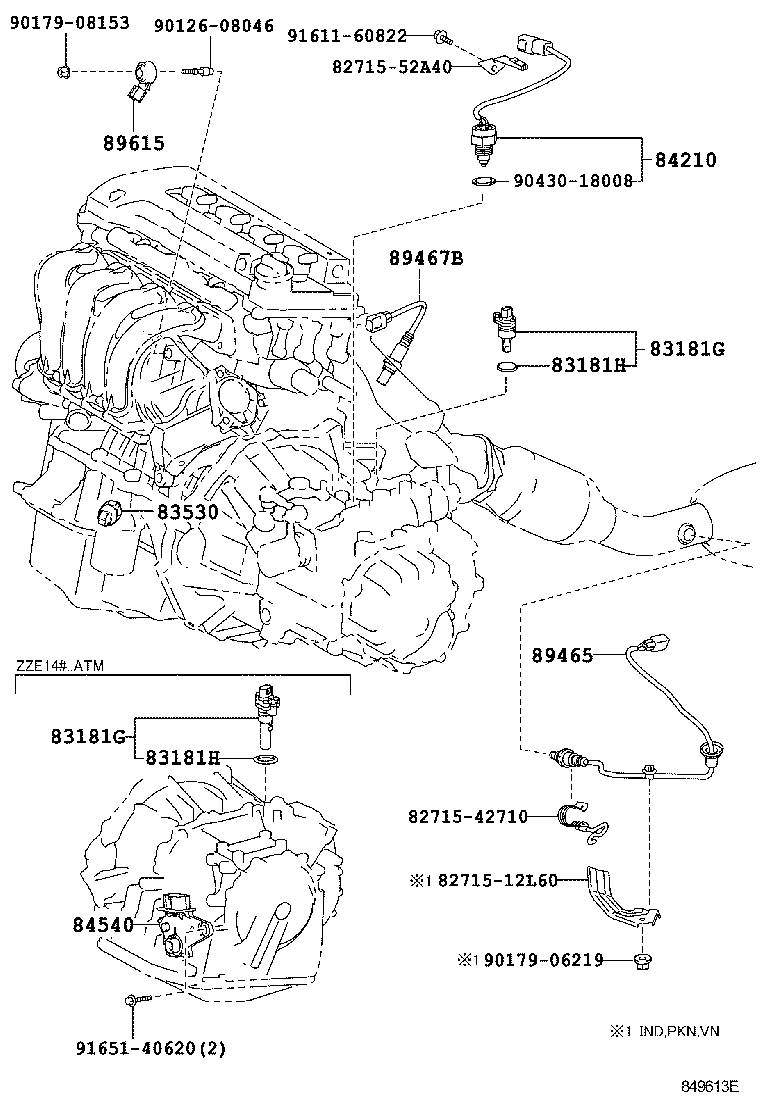

ENGINE & TRANSMISSION

diagram 8271512L60 8271542710 8271552A40 83181G 83181G 83181H 83181H 83530 84210 84540 89465 89467B 89615 9012608046 9017906219 9017908153 9043018008 9161160822 9165140620
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-60020

ZZE142..IND

YAZAKI

 1
83530-28020

ZZE142..IND

DENSO

 1
89465 - SENSOR, OXYGEN
89465-02210

ZRE143,ZZE14#..4FC,5F

 1
89467B - SENSOR, AIR FUEL RATIO
89467-12100

ZZE142..IND

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

ZZE142..IND

 1
Common parts
82715-12L60
82715-42710
82715-52A40
90126-08046
90179-06219
90179-08153
90430-18008
91611-60822
91651-40620

ILLUST NO. 2 OF 8(0712- )

Click highlighted areas on diagram

ENGINE ROOM

diagram 28610 85928B 85942 89257 89428 90119T0096 91631B0614 9331514010
Part # Description Qty Price
85928B - RESISTOR, COOLING FAN
85928-12030

ZZE142..IND

 1
Common parts
90119-T0096
91631-B0614
93315-14010

ILLUST NO. 8 OF 8(0712- )

Click highlighted areas on diagram

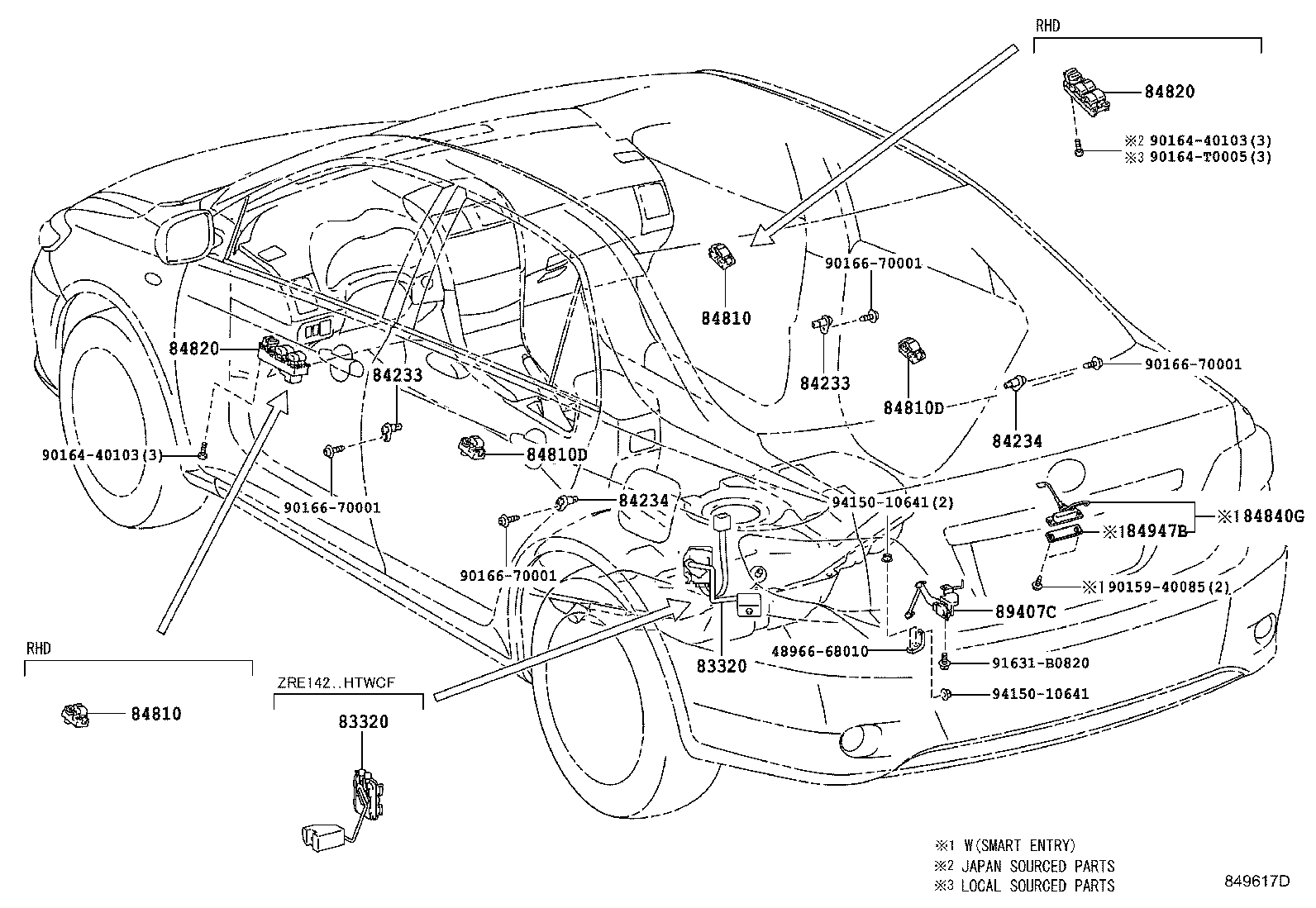

DOOR,ROOF,FLOOR & LUGGAGE

diagram 4896668010 83320 83320 84233 84233 84234 84234 84810 84810 84810D 84810D 84820 84820 84840G 84947B 89407C 9015940085 9016440103 9016440103 90164T0005 9016670001 9016670001 9016670001 9016670001 91631B0820 9415010641 9415010641
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-02120

NZE140,ZZE142..(18G,18J,18V,G,GLI,XLI)..(IND,PKN)

 1
83320 - GAGE ASSY, FUEL SENDER
83320-02120

NZE140,ZZE142..(18G,18J,18V,G,GLI,XLI)..(IND,PKN)

 1
Common parts
48966-68010
90159-40085
90164-40103
90164-T0005
90166-70001
91631-B0820
94150-10641

ILLUST NO. 6 OF 8(0712- )

Click highlighted areas on diagram

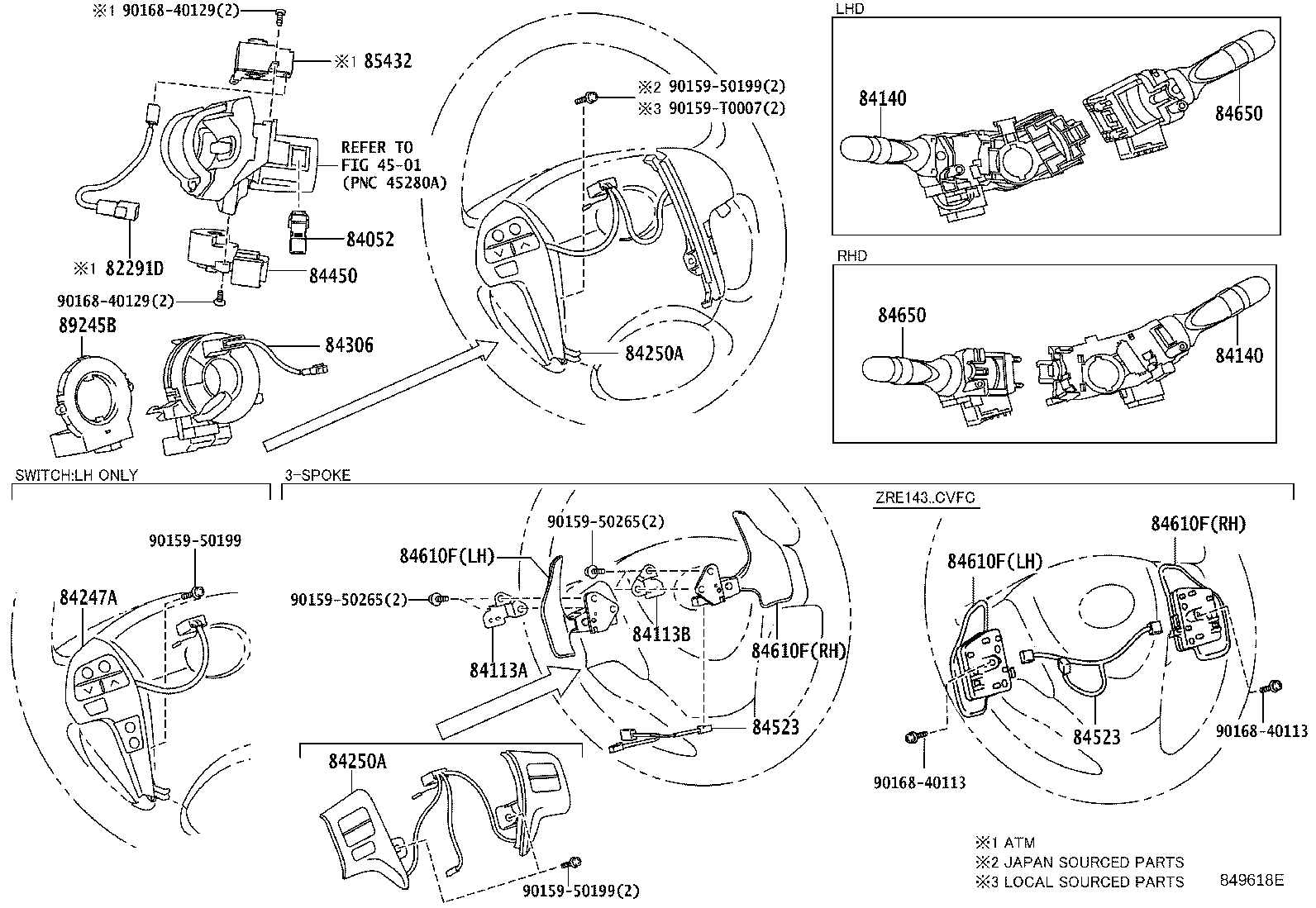

STEERING

diagram 4501 82291D 84052 84113A 84113B 84140 84140 84247A 84250A 84250A 84306 84450 84523 84523 84610F 84610F 84610F 84610F 84650 84650 85432 89245B 9015950199 9015950199 9015950199 9015950265 9015950265 90159T0007 9016840113 9016840113 9016840129 9016840129
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010

ZZE142..18J..IDN;CE140,NZE140,ZZE14#..IND,MA,PHL,PKN,TH,VN

 1
84052-0K020

ZZE142..18J..IDN;CE140,NDE140,ZRE143..(4FC,5F,6F)..(IND,PKN,VN);NZE140,ZRE143,ZZE14#..(4FC,5F)..(16E,16G,16J,16V,18E,18G,18J,18V,20G,ALT,G,GLI,LIMO,XLI)..(IND,MA,PHL,PKN,TH,VN)

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-02680

ZZE142..G;ZZE142..4FC..18G..IND

 1
84140-02690

NDE140,ZZE142..(18J,E)..IND

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-02680

ZZE142..G;ZZE142..4FC..18G..IND

 1
84140-02690

NDE140,ZZE142..(18J,E)..IND

 1
84250A - SWITCH ASSY, STEERING PAD
84250-12060

ZZE142..(18E,18G)..TAIW;ZZE142..(18G,18V,G)..(IDN,IND,MA,PHL,TH,VN);NDE140,ZRE143,ZZE141..(4FC,5F,6F)..(16G,16V,20E,20G,E,G)..(IND,PHL,TAIW)

 1
84250A - SWITCH ASSY, STEERING PAD
84250-12060

ZZE142..(18E,18G)..TAIW;ZZE142..(18G,18V,G)..(IDN,IND,MA,PHL,TH,VN);NDE140,ZRE143,ZZE141..(4FC,5F,6F)..(16G,16V,20E,20G,E,G)..(IND,PHL,TAIW)

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K051

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
84306-0K030

ZZE142..18J..IND

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200

ZRE143..4FC..VN;ZZE142..(18E,18J)..(IDN,TAIW);ZRE143,ZZE142..(4FC,5F)..(18E,18G,18J,18V,20G,ALT,G,GLI,XLI)..(GCC,IND,MA,PHL,PKN,TH,VN);CE140,NDE140,NZE140,ZRE143,ZZE141..(4FC,5F,6F)..(16E,16G,16J,16V,20D,20DSA,20E,E,G,GLI,LIMO,XLI)

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-02630

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
84652-02640

ZZE142..18J..IND

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-02630

NDE140,ZZE142..(18G,18V,E,G)..IND

 1
84652-02640

ZZE142..18J..IND

 1
Common parts
90159-50199
90159-50265
90159-T0007
90168-40113
90168-40129
Linked diagrams
4501

ILLUST NO. 7 OF 8(0712- )

Click highlighted areas on diagram

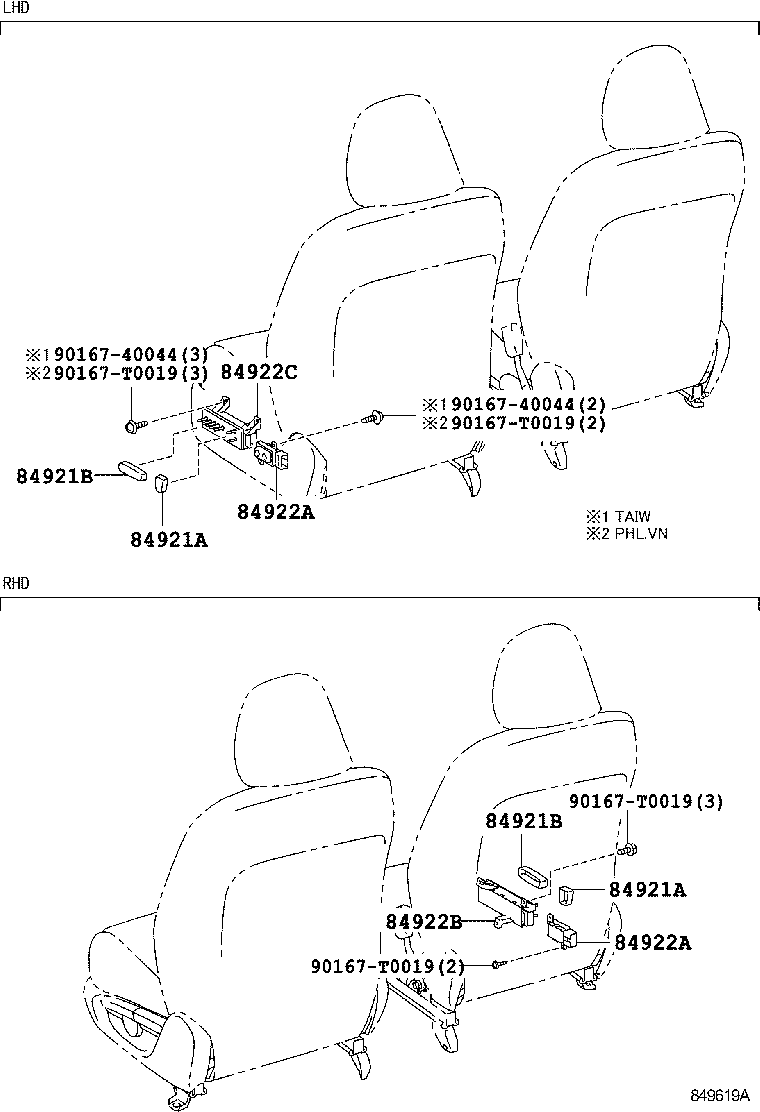

SEAT

diagram 84921A 84921A 84921B 84921B 84922A 84922A 84922B 84922C 9016740044 9016740044 90167T0019 90167T0019 90167T0019 90167T0019
Part # Description Qty Price
Common parts
90167-40044
90167-T0019

ILLUST NO. 3 OF 8(0712- )

Click highlighted areas on diagram

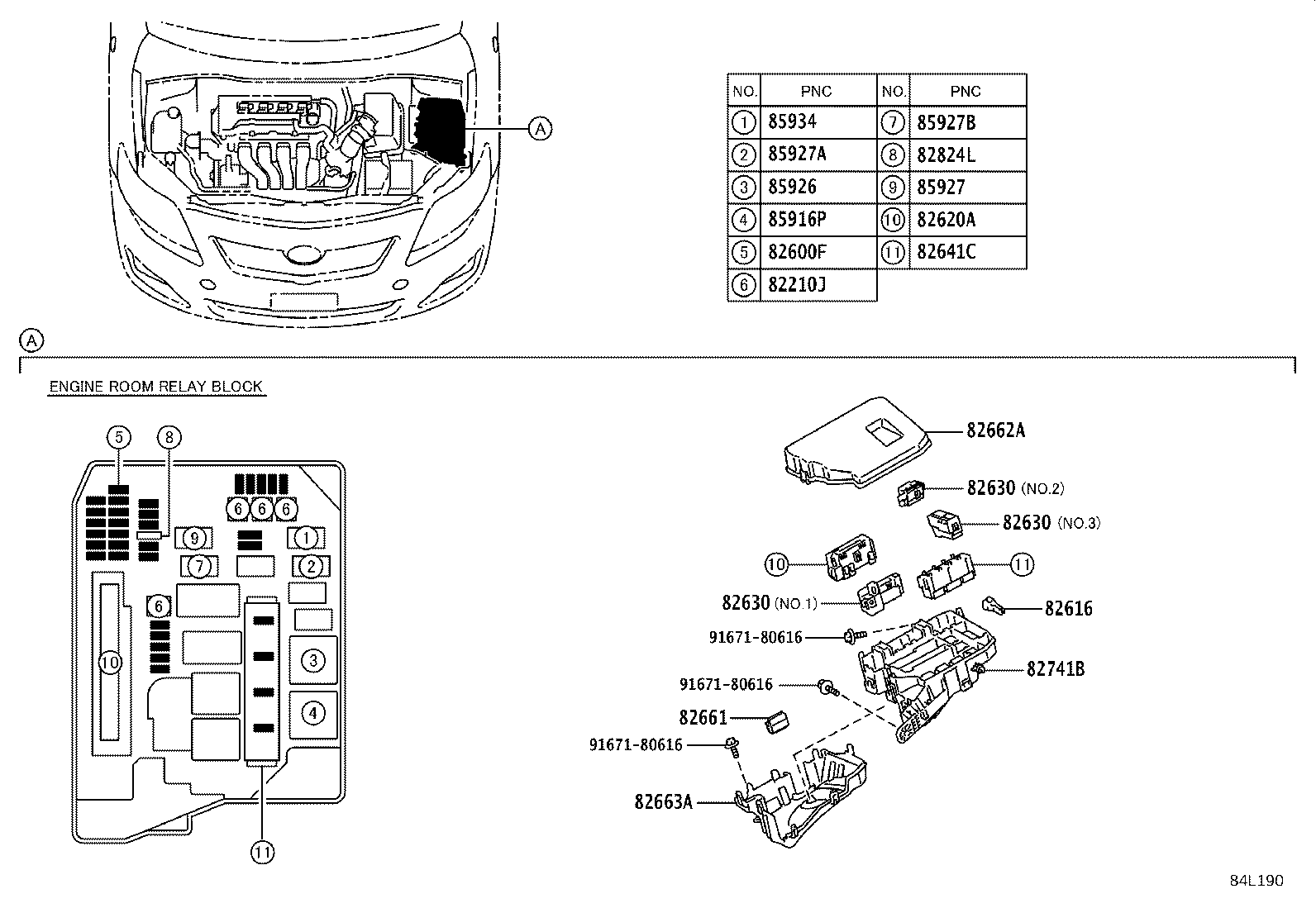

ENGINE ROOM RELAY BLOCK

diagram 82210J 82600F 82616 82620A 82630 82630 82630 82641C 82661 82662A 82663A 82741B 82824L 85916P 85926 85927 85927A 85927B 85934 9167180616 9167180616 9167180616
Part # Description Qty Price
82210J - FUSIBLE LINK
90982-08295

NDE140,ZZE142..IND

30A,TERM.:FEMALE,PNK

 1
90982-08295

NDE140,ZZE142..IND

30A,TERM.:FEMALE,PNK

 1
82600F - FUSE, FUSE BLOCK
90982-09020

CE140,NDE140,NZE140,ZRE14#,ZZE14#

7.5A,MINI FUSE,BROWN

 1
90982-09025

CE140,NDE140,NZE140,ZRE14#,ZZE14#

30A,MINI FUSE,GRN

 1
90982-09021

CE140,NDE140,NZE140,ZRE14#,ZZE14#

10A,MINI FUSE,RED

 1
90982-09021

CE140,NDE140,NZE140,ZRE14#,ZZE14#

10A,MINI FUSE,RED

 1
90982-09023

CE140,NDE140,NZE140,ZRE14#,ZZE14#

20A,MINI FUSE,YELLOW

 1
90982-09022

CE140,NDE140,NZE140,ZRE14#,ZZE14#

15A,MINI FUSE,BLUE

 1
90982-09024

CE140,NDE140,NZE140,ZRE14#,ZZE14#

25A,MINI FUSE

 1
90982-09024

CE140,NDE140,NZE140,ZRE14#,ZZE14#

25A,MINI FUSE

 1
90982-09020

CE140,NDE140,NZE140,ZRE14#,ZZE14#

7.5A,MINI FUSE,BROWN

 1
90982-09023

CE140,NDE140,NZE140,ZRE14#,ZZE14#

20A,MINI FUSE,YELLOW

 1
90982-09025

CE140,NDE140,NZE140,ZRE14#,ZZE14#

30A,MINI FUSE,GRN

 1
90982-09022

CE140,NDE140,NZE140,ZRE14#,ZZE14#

15A,MINI FUSE,BLUE

 1
82616 - PULLER, FUSE
82616-58010

CE140,NDE140,NZE140,ZRE14#,ZZE14#

 1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-12280

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

 1
82630 - HOLDER ASSY, FUSE
82631-12090

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

NO.3

 1
82631-12080

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

NO.2

 1
82631-12070

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

NO.1

 1
82630 - HOLDER ASSY, FUSE
82631-12090

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

NO.3

 1
82631-12080

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

NO.2

 1
82631-12070

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

NO.1

 1
82630 - HOLDER ASSY, FUSE
82631-12090

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

NO.3

 1
82631-12080

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

NO.2

 1
82631-12070

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

NO.1

 1
82641C - RELAY, INTEGRATION NO.2
82641-47020

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

 1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-12550

ZZE142..(18J,G)..IND;ZZE142..4FC..18G..IND

 1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-12100

ZZE142..IND

 1
82663-12090

NDE140,ZZE142..IND

 1
82741B - BLOCK, ENGINE ROOM RELAY
82741-12110

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

 1
82824L - PIN, SHORT
82824-20140

CE140;NDE140,NZE140,ZRE143,ZZE14#..(4FC,5F,6F)..(16E,16G,16J,16V,18E,18G,18J,18V,20E,20G,20V,ALT,E,G,GLI,XLI)

 1
85927 - RELAY, COOLING FAN
90987-T2001

NDE140,ZZE142..IND

 1
85927A - RELAY, COOLING FAN, NO.2
90080-87009

NDE140,ZZE142..IND

 1
85934 - RELAY, MAGNET-CLUTCH
90987-02028

ZZE142..IND

 1
Common parts
91671-80616
