ZZE142R-GEMDKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )

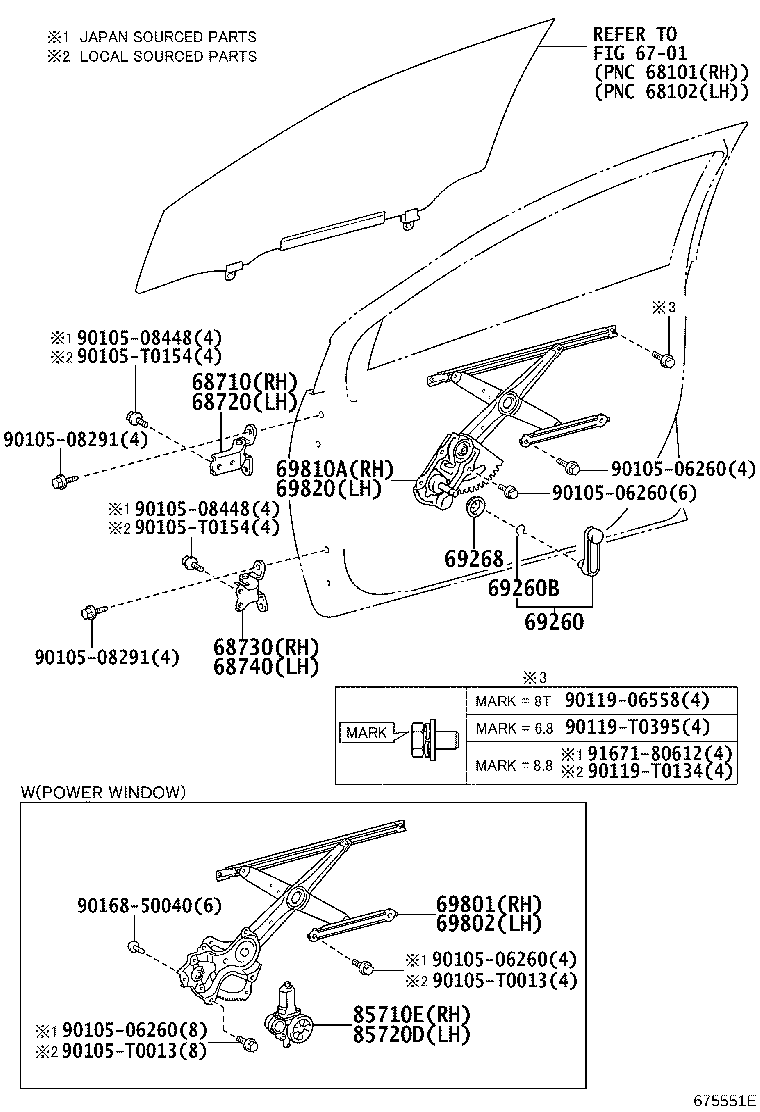

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69260 69260B 69268 69801 69802 69810A 69820 85710E 85720D 9010506260 9010506260 9010506260 9010506260 9010508291 9010508291 9010508448 9010508448 90105T0013 90105T0013 90105T0154 90105T0154 9011906558 90119T0134 90119T0395 9016850040 9167180612
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-0K030

NDE140,ZZE142..IND

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-0K030

NDE140,ZZE142..IND

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-02100

NDE140,ZZE142..IND

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-02100

NDE140,ZZE142..IND

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-02230

NDE140,ZZE142..IND

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-02240

NDE140,ZZE142..IND

 1
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-12361

NDE140,ZZE142..IND

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-02360

NDE140,ZZE142..IND

 1
Common parts
90105-06260
90105-08291
90105-08448
90105-T0013
90105-T0154
90119-06558
90119-T0134
90119-T0395
90168-50040
91671-80612
Linked diagrams
6701
