ZZE142R-GEMDKX (2008)

Toyota Corolla/Altis

Production Aug 2008 - May 2011
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

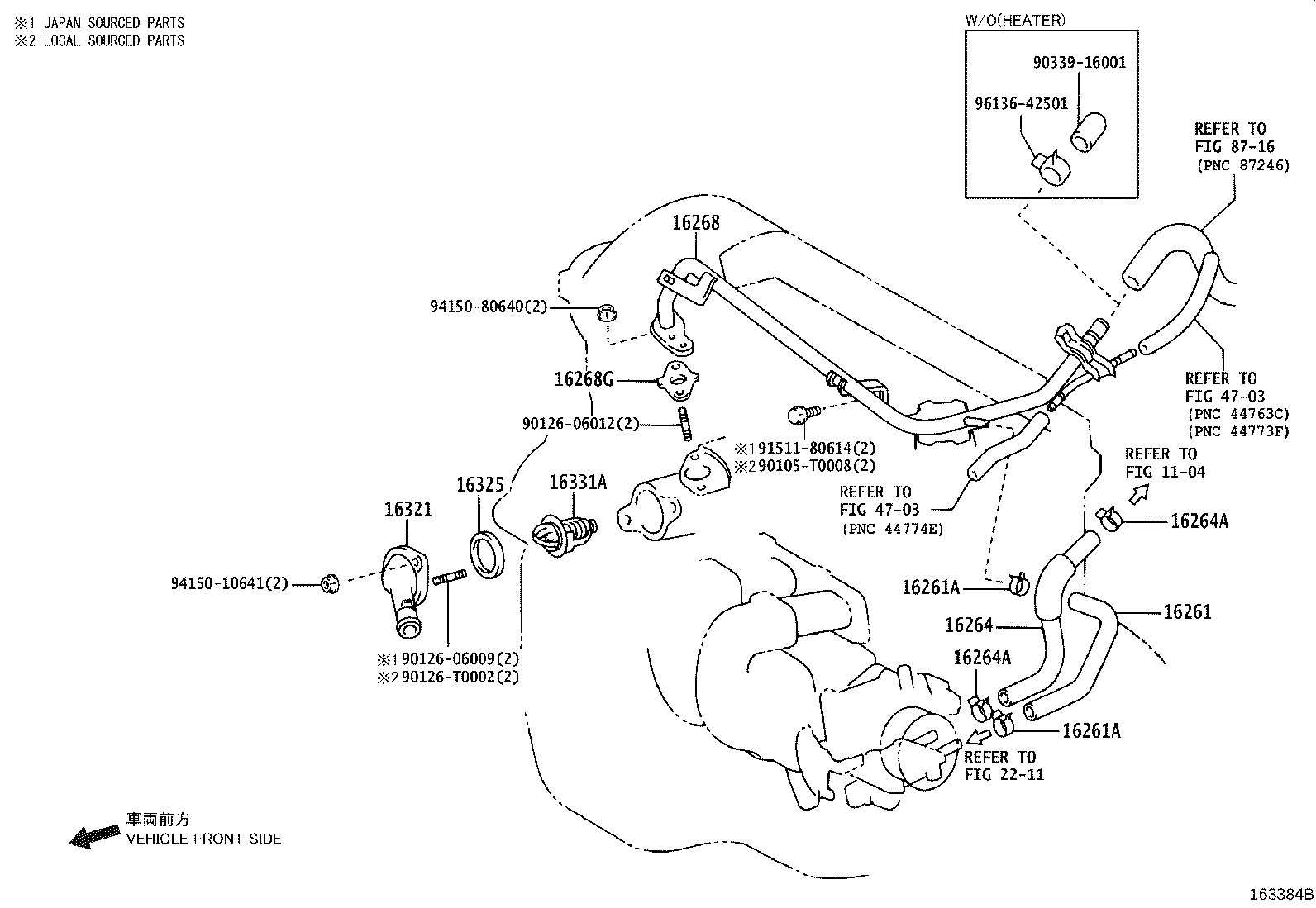

ILLUST NO. 2 OF 2(0712- )1ZZFE,3ZZFE

Click highlighted areas on diagram

diagram 1104 16261 16261A 16261A 16264 16264A 16264A 16268 16268G 16321 16325 16331A 2211 4703 4703 8716 90105T0008 9012606009 9012606012 90126T0002 9033916001 9151180614 9415010641 9415080640 9613642501
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-22142

1ZZFE..ZZE142..IND

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

1ZZFE..ZZE142..IND

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96137-41501

1ZZFE..ZZE142..IND

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-22123

1ZZFE..ZZE142..IND

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501

1ZZFE..ZZE142..IND

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-41501

1ZZFE..ZZE142..IND

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-0D090

1ZZFE,3ZZFE..ZZE14#

(L)

 1
16268-22161

1ZZFE..ZZE142..IND,PKN

 1
16268-22160

1ZZFE,3ZZFE..ZZE14#

(J)

 1
16268G - GASKET(FOR WATER BY-PASS PIPE)
16258-22010

1ZZFE,3ZZFE..ZZE14#

 1
16321 - INLET, WATER
16321-22070

1ZZFE..ZZE142..IND

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-0H020

1ZZFE..ZZE142..IND

(L)

 1
16325-62010

1ZZFE..ZZE142..IND

(J)

 1
16331A - THERMOSTAT
90916-03129

1ZZFE..ZZE142..IND

*WAX 82-95,KUZEH

 1
Common parts
90105-T0008
90126-06009
90126-06012
90126-T0002
90339-16001
91511-80614
94150-10641
94150-80640
96136-42501
Linked diagrams
1104
2211
4703
8716

ILLUST NO. 1 OF 2(0808- )1ZZFE,2ZRFE..5F,6F,CVFC..IND,PKN

Click highlighted areas on diagram

diagram 16261N 16261P 16261P 16361 16363 16400 16400B 16400B 16400F 16400F 16401 16470 16470B 16471 16473 16523A 16533 16535 16571A 16571A 16571C 16572A 16572A 16572D 16573B 16573C 16573C 16577C 16581B 16711 16712 8718 8718 8718 9009904119 9009904612 9009904612 9009905164 9011906448 91621B0816 91631B0616 9165140610
Part # Description Qty Price
16261N - HOSE, WATER BY-PASS, NO.2
16261-0D220

1ZZFE..ZZE142..IND

(L)

 1
16261P - CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

1ZZFE..ZZE142..IND

 2
16261P - CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

1ZZFE..ZZE142..IND

 2
16361 - FAN
16361-21110

1ZZFE..ZZE142..IND

 1
16363 - MOTOR, COOLING FAN
16363-28200

1ZZFE..ZZE142..IND

 1
16400 - RADIATOR ASSY
16410-0D410

1ZZFE..ZZE142..5F..IND

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-28530

1ZZFE..ZZE142..IND

NO.1

 1
16417-21280

1ZZFE..ZZE142..IND

NO.2

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-28530

1ZZFE..ZZE142..IND

NO.1

 1
16417-21280

1ZZFE..ZZE142..IND

NO.2

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1ZZFE..ZZE142..IND

NO.2

 1
16418-20290

1ZZFE..ZZE142..IND

NO.1

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1ZZFE..ZZE142..IND

NO.2

 1
16418-20290

1ZZFE..ZZE142..IND

NO.1

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90466-11003

1ZZFE..ZZE142..IND

 1
16473 - SUPPORT(FOR RADIATOR RESERVE TANK)
16473-64260

1ZZFE..ZZE142..IND

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96136-43901

1ZZFE..ZZE142..IND

NO.2

 1
96136-44301

1ZZFE..ZZE142..IND

NO.1

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96136-43901

1ZZFE..ZZE142..IND

NO.2

 1
96136-44301

1ZZFE..ZZE142..IND

NO.1

 1
16571C - HOSE, RADIATOR, NO.1
16571-0D300

1ZZFE..ZZE142..IND

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96136-44301

1ZZFE..ZZE142..IND

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96136-44301

1ZZFE..ZZE142..IND

 2
16572D - HOSE, RADIATOR, NO.2
16572-0D250

1ZZFE..ZZE142..IND

 1
16573B - HOSE, RADIATOR, NO.3
16573-0D120

1ZZFE..ZZE142..IND

(L)

 1
16577C - PIPE, RADIATOR
16577-0D040

1ZZFE..ZZE142..IND

 1
16581B - CLAMP, HOSE(FOR RADIATOR HOSE)
16581-22130

1ZZFE..ZZE142..IND

 1
16712 - SHROUD, FAN, NO.2
16712-0D210

1ZZFE..ZZE142..IND

 1
Common parts
90099-04119
90099-04612
90099-05164
90119-06448
91621-B0816
91631-B0616
91651-40610
Linked diagrams
8718
