ZZE142R-GEMDKX (2008)
Toyota Corolla/Altis
Production
Aug 2008
-
May 2011
Engine
1ZZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0712- )1ZZFE,3ZZFE

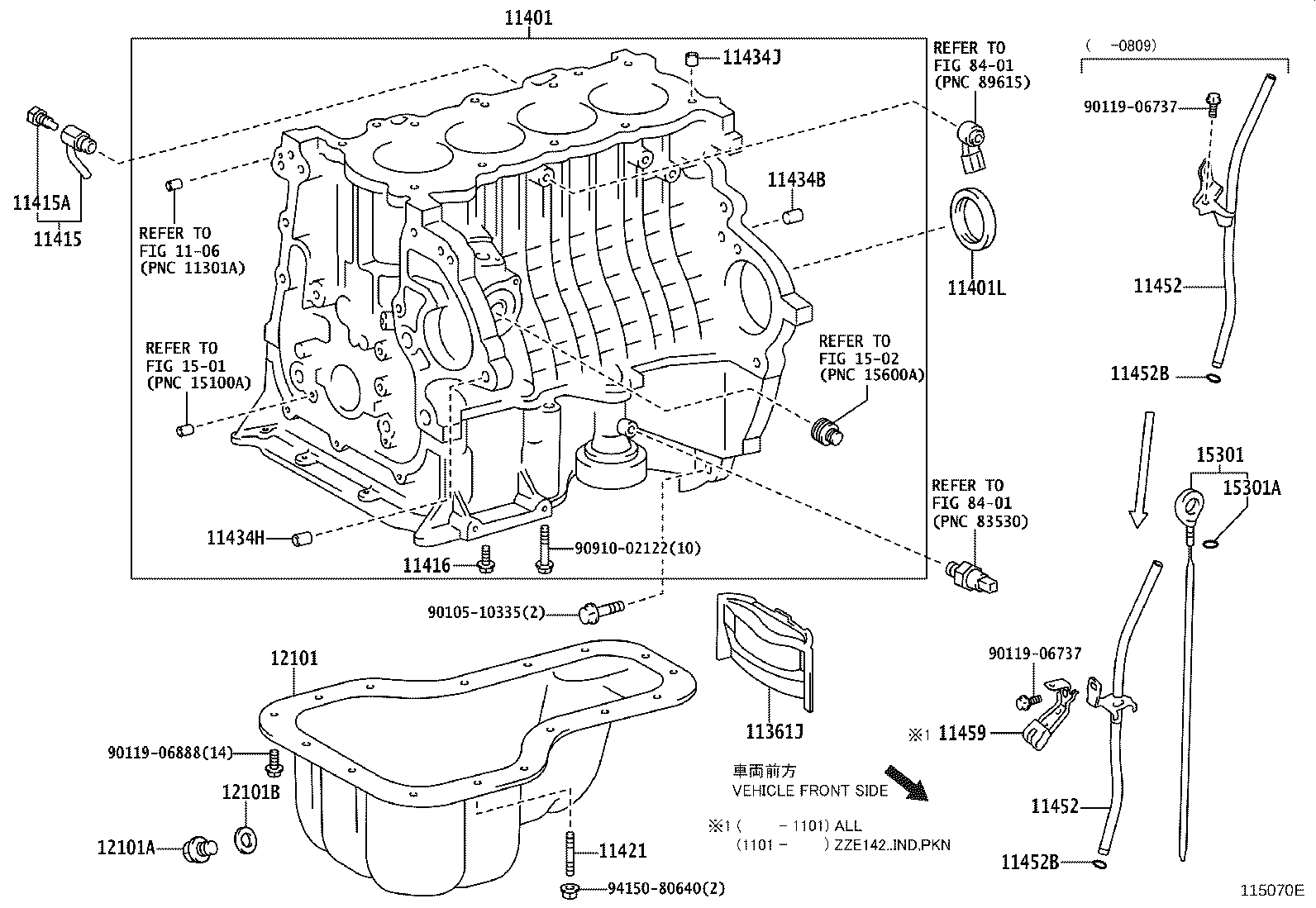

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-22030 |
1ZZFE..ZZE142..IND (L) |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-29165 |
1ZZFE..ZZE142 |
1 | ||
| 11410-29166 |
1ZZFE..ZZE142..IND |
1 | ||
| 11401L - SEAL, ENGINE REAR OIL | ||||
| 90311-76001 |
1ZZFE..ZZE142..IND |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09107 |
1ZZFE..ZZE142..IND |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1ZZFE..ZZE142..IND |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 91511-K0840 |
1ZZFE..ZZE142..IND |
10 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90126-06010 |
1ZZFE..ZZE142..IND |
2 | ||
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
1ZZFE..ZZE142..IND L=22,OD=10 |
2 | ||
| 11434H - PIN, RING (FOR TIMING BELT COVER SET) | ||||
| 90253-14003 |
1ZZFE..ZZE142..IND |
1 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
1ZZFE..ZZE142..IND |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-22030 |
1ZZFE..ZZE142..IND,PKN |
1 | ||
| 11452-22031 |
1ZZFE..ZZE142..IND |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-22030 |
1ZZFE..ZZE142..IND,PKN |
1 | ||
| 11452-22031 |
1ZZFE..ZZE142..IND |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1ZZFE..ZZE142..IND |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96721-19010 |
1ZZFE..ZZE142..IND |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 11459-22010 |
1ZZFE..ZZE142..IND |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-22024 |
1ZZFE..ZZE142..IND |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1ZZFE..ZZE142..IND |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1ZZFE..ZZE142..IND |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-22050 |
1ZZFE..ZZE142..IND |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
1ZZFE..ZZE142..IND |
1 | ||
| Common parts | ||||
| 90105-10335 | ||||
| 90119-06737 | ||||
| 90119-06888 | ||||
| 90910-02122 | ||||
| 94150-80640 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1501 | ||||
| 1502 | ||||
| 8401 | ||||
