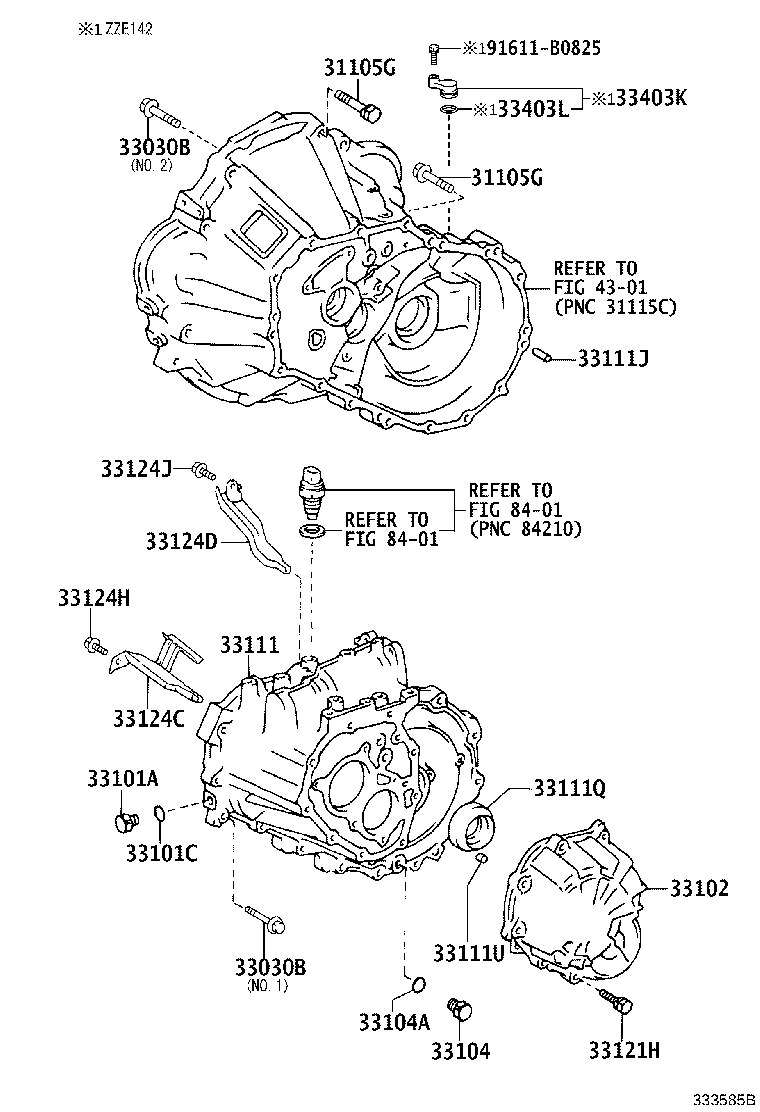

ZZE142R-GEMDKD (2008)
Toyota Corolla/Altis
(0801- )NZE140,ZZE14#..5F
C50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12168 |
ZZE14#..5F *12-1.25PX55-30 |
2 | ||
| 90119-T0214 |
ZZE14#..5F..(IDN,PHL,TH) *12-1.25PX55-30 |
2 | ||
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-12168 |
ZZE14#..5F *12-1.25PX55-30 |
2 | ||
| 90119-T0214 |
ZZE14#..5F..(IDN,PHL,TH) *12-1.25PX55-30 |
2 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08353 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) *8-1.25PX50-30,NO.1 |
13 | ||
| 90105-08430 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) *8-1.25PX45-27.5,NO.2 |
3 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08353 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) *8-1.25PX50-30,NO.1 |
13 | ||
| 90105-08430 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) *8-1.25PX45-27.5,NO.2 |
3 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18033 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) |
1 | ||
| 33102 - COVER SUB-ASSY, MANUAL TRANSMISSION CASE | ||||
| 33102-12021 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18033 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-12260 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-08054 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) L=23,OD=8 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) L=11,OD=11 |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-08429 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) |
9 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-20050 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-12021 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) |
1 | ||
| 33124H - BOLT(FOR OIL RECEIVER PIPE) | ||||
| 91611-G0820 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) |
1 | ||
| 33124J - BOLT, W/WASHER | ||||
| 91611-G0820 |
ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH) |
1 | ||
| 33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-35230 |
ZZE142..18J..IDN |
1 | ||
| 33403L - RING, O | ||||
| 96711-24030 |
ZZE142..18J..IDN |
1 | ||
| Common parts | ||||
| 91611-B0825 | ||||
| Linked diagrams | ||||
| 4301 | ||||
| 8401 | ||||
