ZZE142R-GEMDKD (2008)

Toyota Corolla/Altis

Production Jan 2008 - Aug 2010
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )RHD..MTM

Click highlighted areas on diagram

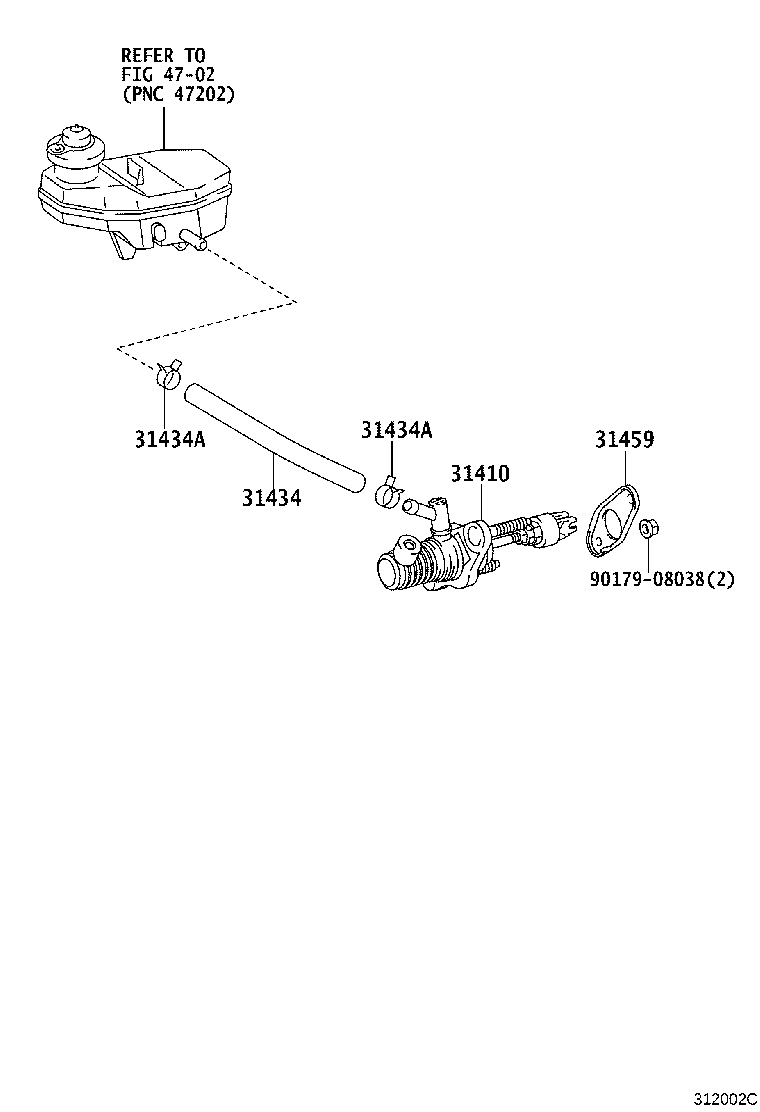

diagram 31410 31434 31434A 31434A 31459 4702 9017908038
Part # Description Qty Price
31434 - TUBE, CLUTCH RESERVOIR
31434-12140

ZZE14#..5F..(16J,18J,LIMO)..(IDN,TH)

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96136-41801

ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96136-41801

ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)

 2
31459 - BRACKET, CLUTCH MASTER CYLINDER
31459-42040

ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)

 1
Common parts
90179-08038
Linked diagrams
4702
