ZZE142R-GEMDKD (2008)

Toyota Corolla/Altis

Production Jan 2008 - Aug 2010
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

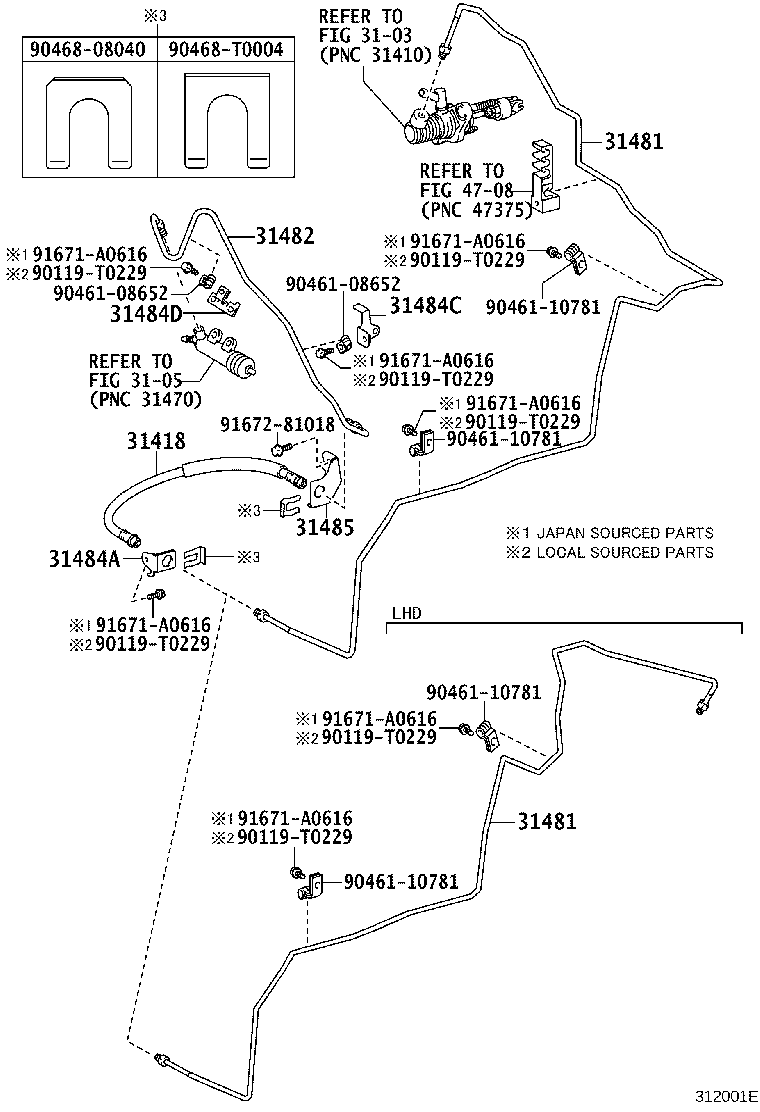

ILLUST NO. 2 OF 2(0801- )ZZE14#..5F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31481 31482 31484A 31484C 31484D 31485 4708 90119T0229 90119T0229 90119T0229 90119T0229 90119T0229 90119T0229 90119T0229 9046108652 9046108652 9046110781 9046110781 9046110781 9046110781 9046808040 90468T0004 91671A0616 91671A0616 91671A0616 91671A0616 91671A0616 91671A0616 91671A0616 9167281018
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-T2039

ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-02300

ZZE14#..5F..(16J,18J)..(IDN,TH)

 1
31481-02380

ZZE14#..5F..(16J,18J,LIMO)..(IDN,TH)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-02300

ZZE14#..5F..(16J,18J)..(IDN,TH)

 1
31481-02380

ZZE14#..5F..(16J,18J,LIMO)..(IDN,TH)

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-02290

ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12380

ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-52150

NZE140,ZZE14#..5F

 1
31484D - BRACKET, CLUTCH TUBE, NO.2
31484-20460

CE140,ZZE14#..5F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-02020

NZE140,ZZE14#..5F

 1
Common parts
90119-T0229
90461-08652
90461-10781
90468-08040
90468-T0004
91671-A0616
91672-81018
Linked diagrams
3103
3105
4708
