ZZE142R-GEMDKD (2008)

Toyota Corolla/Altis

Production Jan 2008 - Aug 2010
Engine 1ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0801- )CE140,ZZE14#..5F

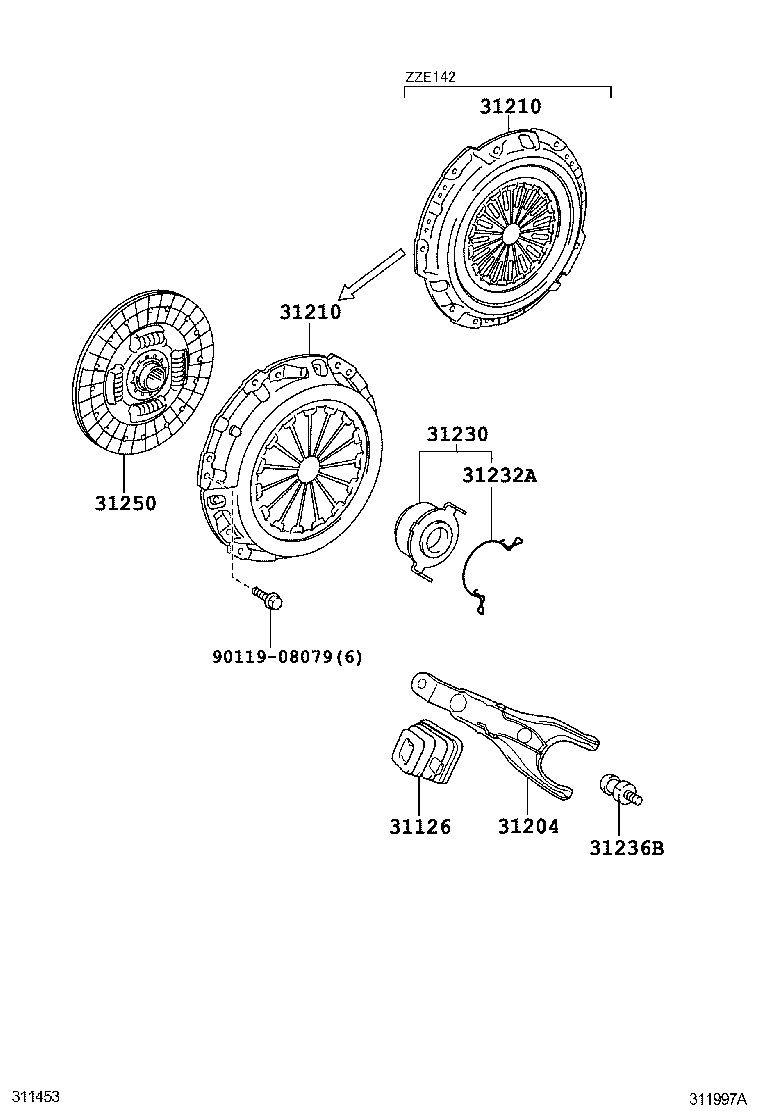

Click highlighted areas on diagram

diagram 31126 31204 31210 31210 31230 31232A 31236B 31250 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12051

ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-17010

ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)

 1
31210 - COVER ASSY, CLUTCH
31210-12310

ZZE142..18J..IDN

 1
31210 - COVER ASSY, CLUTCH
31210-12310

ZZE142..18J..IDN

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-12191

ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)

 1
31232A - CLIP, RELEASE BEARING HUB
31232-12070

ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)

 1
31236B - SUPPORT, RELEASE FORK
31236-12020

ZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)

 1
31250 - DISC ASSY, CLUTCH
31250-52050

ZZE14#..5F

 1
Common parts
90119-08079
