Toyota Corolla/altis ZZE142 RADIATOR & WATER OUTLET

Manufacturers Home
Toyota
GR
COROLLA/ALTIS
ZZE142R-GEMDKD (2008)
1603 - RADIATOR & WATER OUTLET

ZZE142R-GEMDKD (2008)

Toyota Corolla/Altis

Production Jan 2008 - Aug 2010

Engine 1ZZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

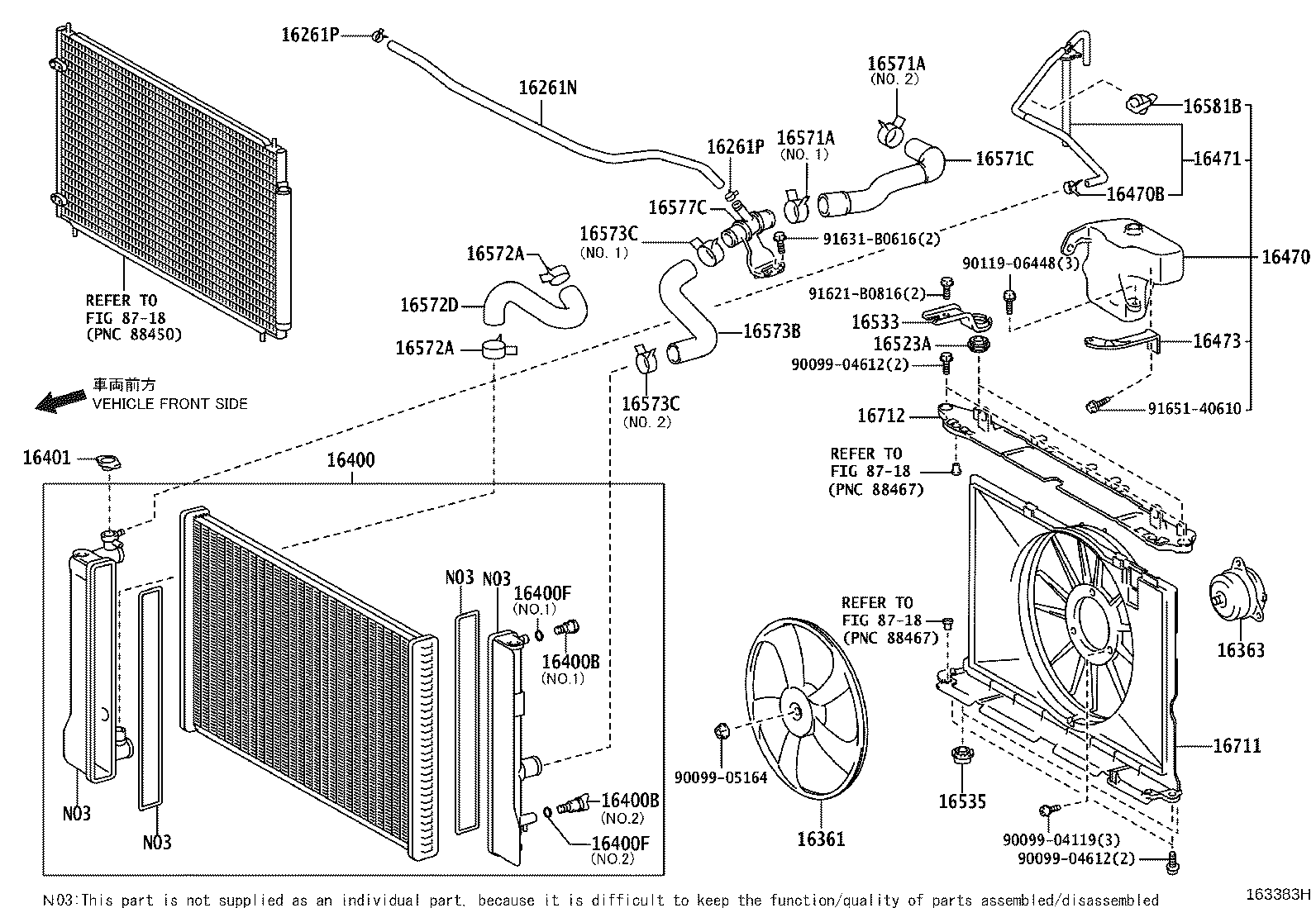

ILLUST NO. 1 OF 2(0801- )1ZZFE,3ZZFE..5F..IDN,PHL,TH,VN

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261N - HOSE, WATER BY-PASS, NO.2
16261-0D200	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
16261P - CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
16261P - CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
16361 - FAN
16361-0D200	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
16363 - MOTOR, COOLING FAN
16363-0M010	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
16400 - RADIATOR ASSY
16410-0D390	3ZZFE..ZZE141..16E..PHL;1ZZFE,3ZZFE..ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)	01/2008 - 08/2010	1
16400B - PLUG, RADIATOR DRAIN COCK
16417-21280	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.2	12/2007 - 08/2010	1
16417-28530	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.1	12/2007 - 08/2010	1
16400B - PLUG, RADIATOR DRAIN COCK
16417-21280	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.2	12/2007 - 08/2010	1
16417-28530	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.1	12/2007 - 08/2010	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-20290	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.1	12/2007 - 08/2010	1
16492-21050	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.2	12/2007 - 08/2010	1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-20290	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.1	12/2007 - 08/2010	1
16492-21050	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.2	12/2007 - 08/2010	1
16401 - CAP SUB-ASSY, RADIATOR
16401-05040	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
16470 - TANK ASSY, RADIATOR RESERVE
16470-0D050	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90466-11003	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-0D100	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
16473 - SUPPORT(FOR RADIATOR RESERVE TANK)
16473-64260	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
16523A - CUSHION, RADIATOR SUPPORT
16523-0D060	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	2
16533 - SUPPORT, RADIATOR, UPPER
16533-0D060	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	2
16535 - SUPPORT, RADIATOR, LOWER
16535-0D140	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96136-43901	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.2	12/2007 - 08/2010	1
96136-44301	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.1	12/2007 - 08/2010	1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
96136-43901	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.2	12/2007 - 08/2010	1
96136-44301	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.1	12/2007 - 08/2010	1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96136-44301	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96136-44301	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
16572D - HOSE, RADIATOR, NO.2
16572-0D220	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
16573B - HOSE, RADIATOR, NO.3
16573-0D100	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96136-44301	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.1	01/2008 - 08/2010	1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
96136-44301	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH) NO.1	01/2008 - 08/2010	1
16577C - PIPE, RADIATOR
16577-0D030	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
16581B - CLAMP, HOSE(FOR RADIATOR HOSE)
16581-22130	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
16711 - SHROUD, FAN
16711-0D260	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
16712 - SHROUD, FAN, NO.2
16712-0D150	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3Z#..ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)	01/2008 - 08/2010	1
Common parts
90099-04119
90099-04612
90099-05164
90119-06448
91621-B0816
91631-B0616
91651-40610
Linked diagrams
8718

ILLUST NO. 2 OF 2(0712- )1ZZFE,3ZZFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
16261 - HOSE, WATER BY-PASS
16261-22142	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH) (J)	12/2007 - 08/2010	1
16261-0D210	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH) (L)	12/2007 - 08/2010	1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96135-51300	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
16264 - HOSE, WATER BY-PASS, NO.2
16264-0D160	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH) (L)	12/2007 - 08/2010	1
16264-22123	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH) (J)	12/2007 - 08/2010	1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-51300	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96135-51300	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	2
16268 - PIPE, WATER BY-PASS, NO.1
16268-0D090	1ZZFE,3ZZFE..ZZE14# (L)	12/2007 - 06/2008	1
16268-22160	1ZZFE,3ZZFE..ZZE14# (J)	12/2007 - 06/2008	1
16268G - GASKET(FOR WATER BY-PASS PIPE)
16258-22010	1ZZFE,3ZZFE..ZZE14#	12/2007 - 07/2008	1
16258-28030	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	07/2008 - 08/2010	1
16321 - INLET, WATER
16321-22070	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)	12/2007 - 08/2010	1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-0H020	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH) (L)	12/2007 - 08/2010	1
16325-62010	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH) (J)	12/2007 - 08/2010	1
16331A - THERMOSTAT
90916-03125	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH) *WAX 82-95,FUJISEIKO	12/2007 - 08/2010	1
90916-03129	3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH) *WAX 82-95,KUZEH	12/2007 - 08/2010	1
Common parts
90105-T0008
90126-06009
90126-06012
90126-T0002
90339-16001
91511-80614
94150-10641
94150-80640
96136-42501
Linked diagrams
1104
2211
4703
8716

ZZE142R-GEMDKD (2008)

ILLUST NO. 1 OF 2(0801- )1ZZFE,3ZZFE..5F..IDN,PHL,TH,VN

ILLUST NO. 2 OF 2(0712- )1ZZFE,3ZZFE
