ZZE142L-GEPNKV (2009)

Toyota Corolla/Altis

Production Jan 2009 - Jul 2010
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0712- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

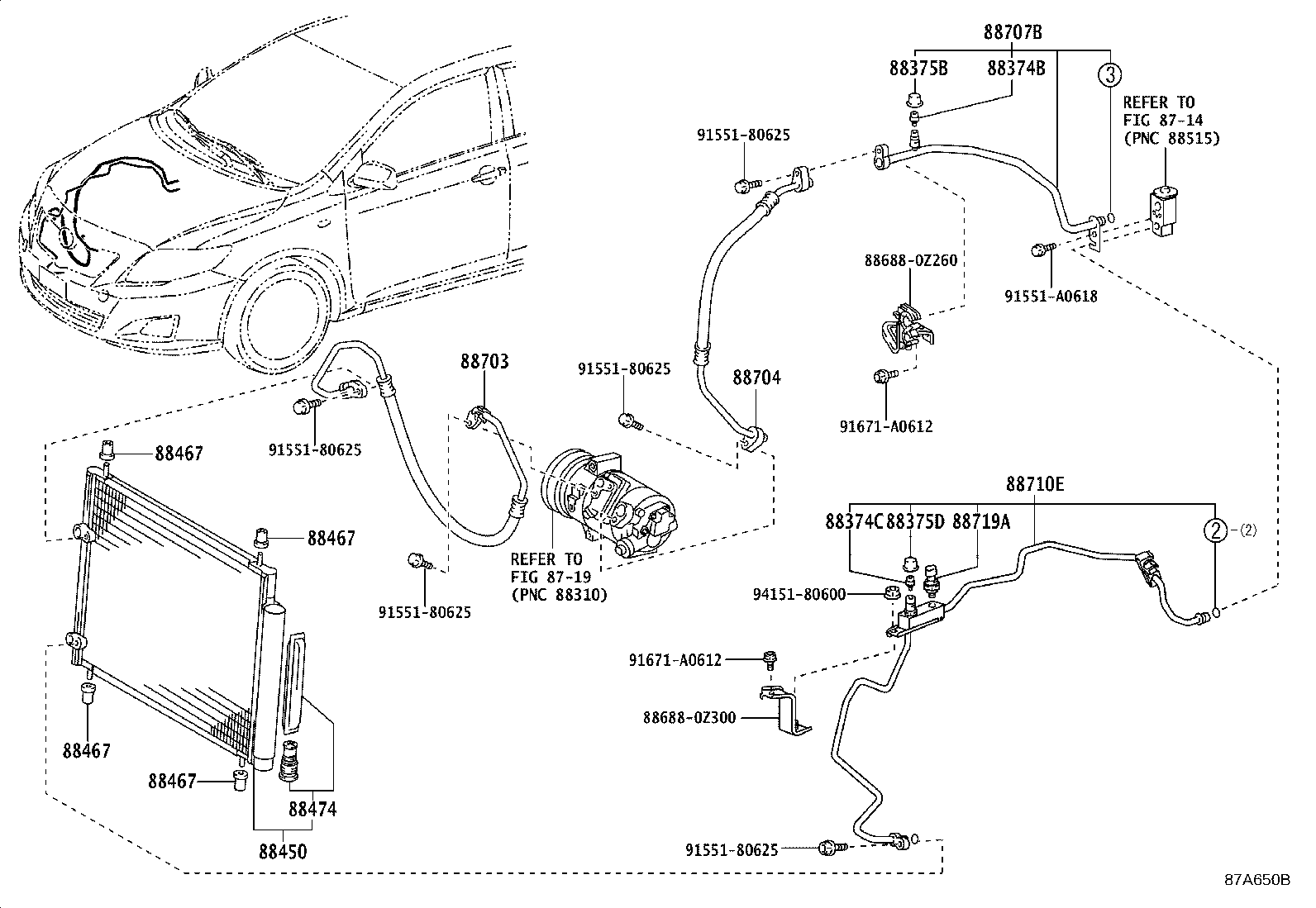

ILLUST NO. 1 OF 2(0901- )ZZE14#..GCC

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88450 88467 88467 88467 88467 88474 886880Z260 886880Z300 88703 88704 88707B 88710E 88719A 9155180625 9155180625 9155180625 9155180625 9155180625 91551A0618 91671A0612 91671A0612 9415180600
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
88374-30010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88374-30010

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
88375-30290

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
88375-30280

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02360

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
88450-02360

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 4
16716-28010

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 4
16716-28010

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 4
16716-28010

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 4
16716-28010

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 4
88474 - DRYER, COOLER
88474-17010

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
88474-17010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-02670

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
88703-02670

ZZE14#..GCC

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0Z030

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
88704-0Z030

ZZE14#..GCC

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-02100

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
88707-02100

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0Z240

ZZE14#..GCC

 1
88710-0Z240

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
Common parts
88688-0Z260
88688-0Z300
91551-80625
91551-A0618
91671-A0612
94151-80600
Linked diagrams
8714
8719
