ZZE142L-GEPNKV (2009)

Toyota Corolla/Altis

Production Jan 2009 - Jul 2010
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0712- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(0901- )ZZE14#..GCC

Click highlighted areas on diagram

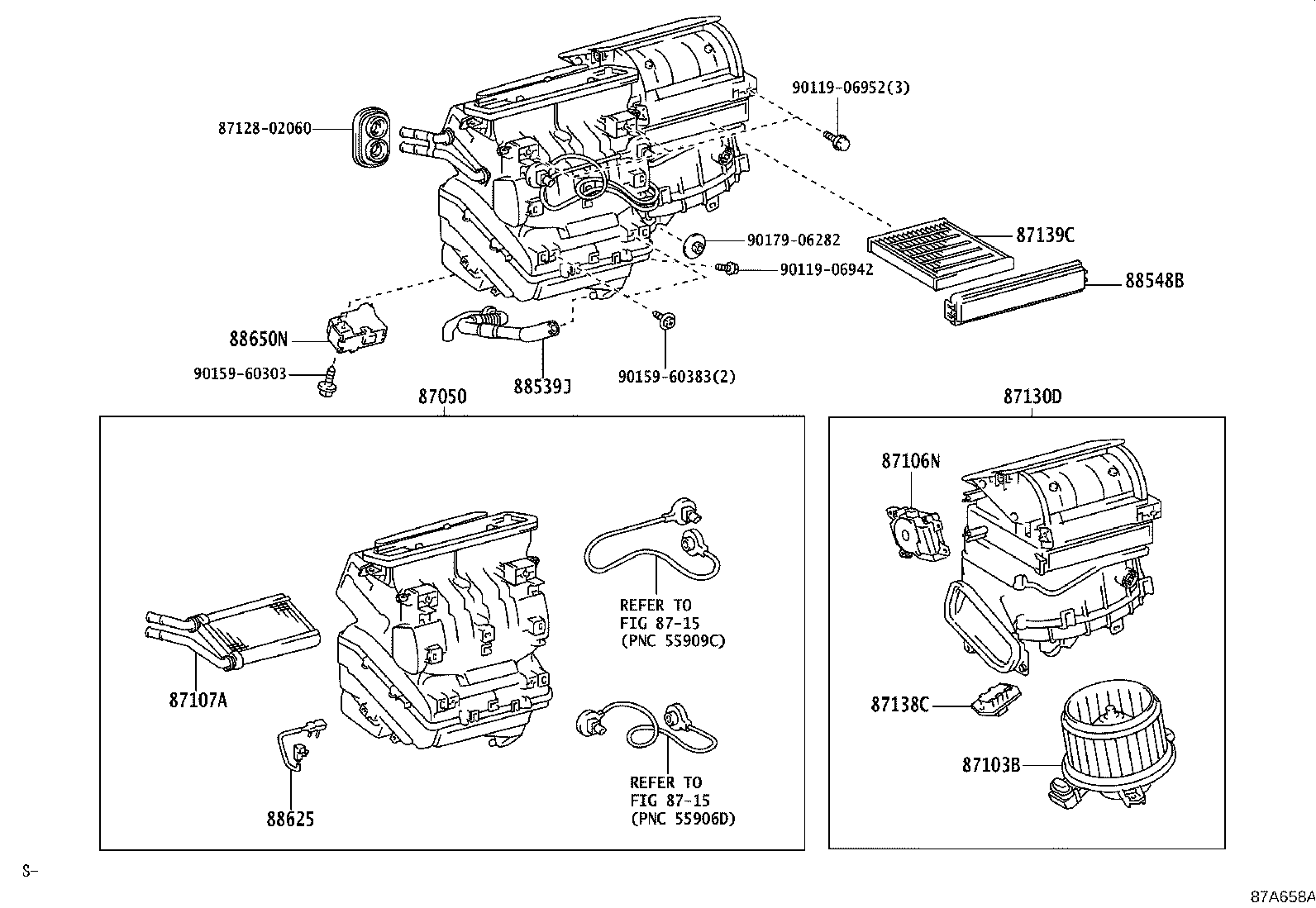

BOOST VENTILATOR,W/O(COOLER)

diagram 87050 87103B 87106N 87107A 8712802060 87130D 87138C 87139C 8715 8715 88539J 88548B 88625 88650N 9011906942 9011906952 9015960303 9015960383 9017906282
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-02F30

ZZE14#..GCC

 1
87050-02F20

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
87050-02F00

ZZE142..GLI

AIR CONDITIONER-AUTO SINGLE MODE

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-02380

ZZE14#..GCC

 1
87103-02390

ZZE142..GLI

AIR CONDITIONER-AUTO SINGLE MODE

 1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-02470

ZZE14#..4FC..(18J,GLI,XLI)

 1
87106-02480

ZZE142..GLI

AIR CONDITIONER-AUTO SINGLE MODE

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K070

ZRE143,ZZE14#..GCC,TAIW

 1
87130D - BLOWER ASSY
87130-02680

ZZE14#..GCC

 1
87130-02690

ZZE142..GLI

AIR CONDITIONER-AUTO SINGLE MODE

 1
87138C - RESISTOR, BLOWER
87138-71010

ZZE14#..4FC..(18J,GLI,XLI)

 1
87139C - FILTER, CLEAN AIR
87139-02110

ZZE14#..GCC

 1
88539J - HOSE, DRAIN COOLER
88539-02190

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88548B - CASE, AIR FILTER
88548-0K030

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12A80

ZZE14#..GCC

 1
88650-12B40

ZZE142..GLI

AIR CONDITIONER-AUTO SINGLE MODE

 1
88650-12A80

ZZE14#..GCC

AIR CONDITIONER-WITHOUT

 1
Common parts
87128-02060
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
Linked diagrams
8715
