ZZE142L-GEPNKV (2009)

Toyota Corolla/Altis

Production Jan 2009 - Jul 2010
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0901-1007)GCC

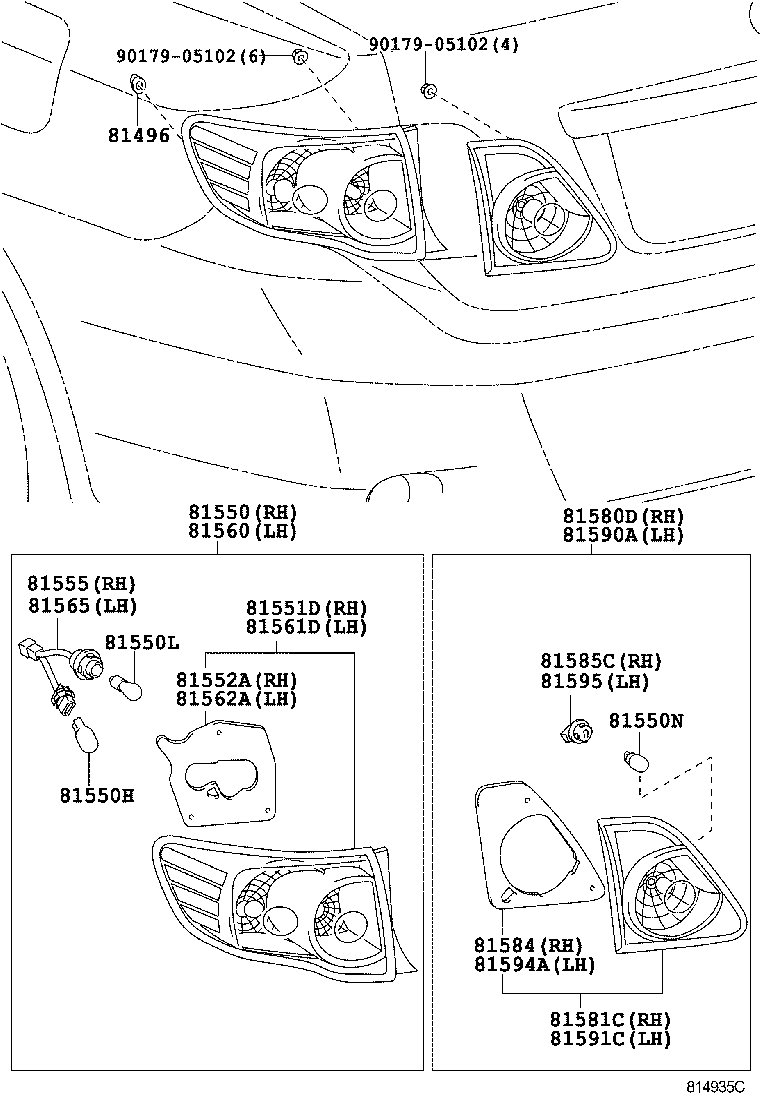

Click highlighted areas on diagram

diagram 81496 81550 81550H 81550L 81550N 81551D 81552A 81555 81560 81561D 81562A 81565 81580D 81581C 81584 81585C 81590A 81591C 81594A 81595 9017905102 9017905102
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 2
81550H - BULB, TAIL & STOP LAMP
90981-13044

ZZE14#..GCC

 2
81550L - BULB, REAR TURN SIGNAL LAMP
99132-11210

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-02510

ZZE14#..GCC

 1
81552A - GASKET, REAR COMBINATION LAMP, RH
81552-02510

ZZE14#..GCC

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-02510

ZZE14#..GCC

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-02510

ZZE14#..GCC

 1
81562A - GASKET, REAR COMBINATION LAMP, LH
81552-02510

ZZE14#..GCC

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-02510

ZZE14#..GCC

 1
81581C - LENS AND BODY, REAR LAMP, RH
81581-02260

ZZE14#..GCC

 1
81584 - PACKING, REAR LAMP RH
81584-02260

ZZE14#..GCC

 1
81585C - SOCKET & WIRE, REAR LAMP, RH
90075-8C012

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
81591C - LENS, REAR LAMP, LH
81591-02260

ZZE14#..GCC

 1
81594A - GASKET, REAR LAMP LH
81594-02260

ZZE14#..GCC

 1
81595 - SOCKET & WIRE, REAR LAMP, LH
90075-8C012

ZZE14#..GCC

 1
Common parts
90179-05102
