ZZE142L-GEPNKV (2009)
Toyota Corolla/Altis

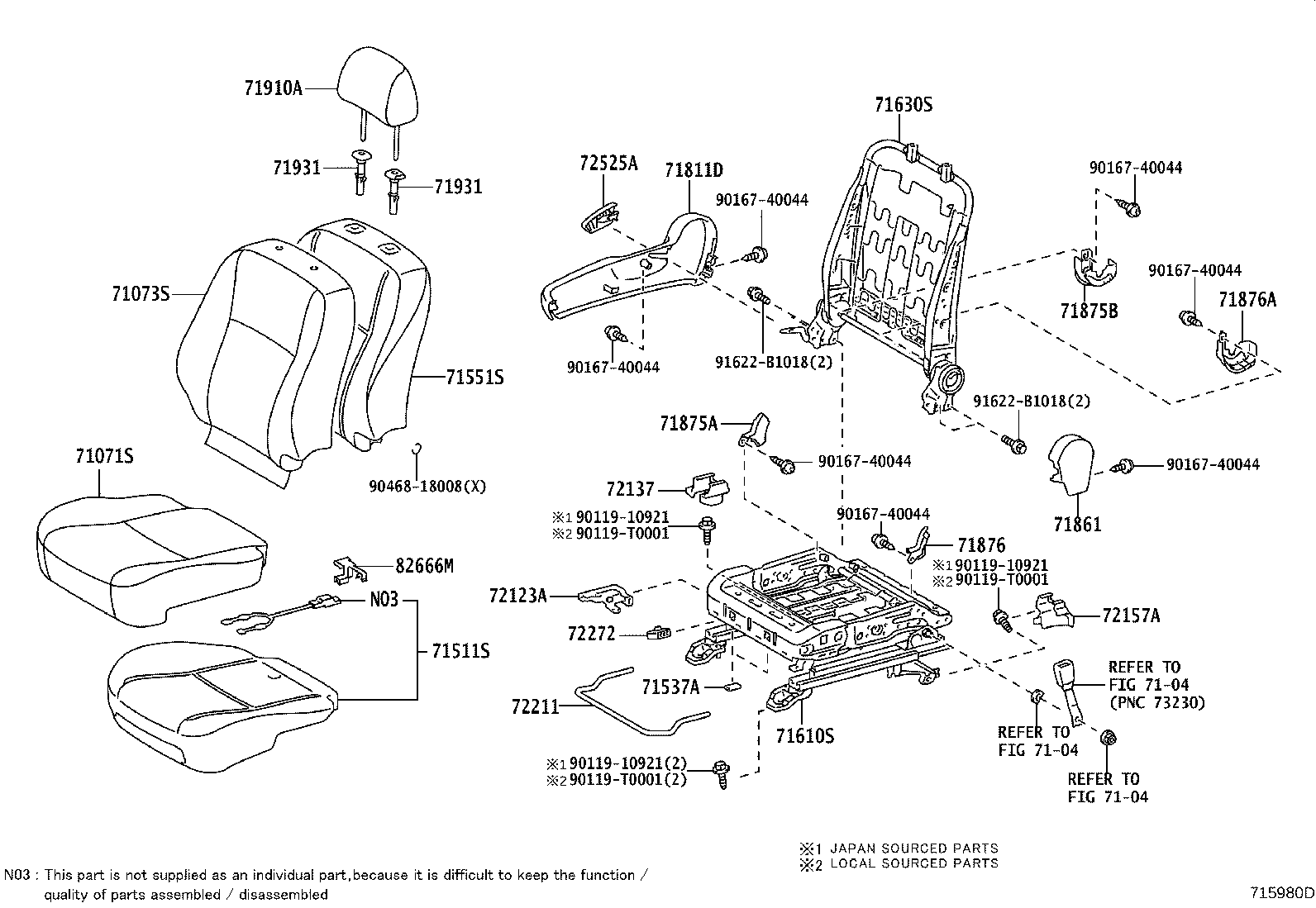

ILLUST NO. 1 OF 2(0901- )GCC
RH MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-02V30B0 |
ZZE142..GCC GRAY,TRIM1# |
1 | ||
| 71071-02V30E0 |
ZZE142..GCC GREGE,TRIM4# |
1 | ||
| 71071-02Z50E0 |
ZZE142..GLI SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-02Z90E0 |
ZZE142..GLI SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71073-02W80E0 |
ZZE142..GCC GREGE,TRIM4# |
1 | ||
| 71073-02W80B0 |
ZZE142..GCC GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-02170 |
ZZE14#..GCC |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
4 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-02660 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-02090 |
ZZE14#..GCC |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-02450 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02320B0 |
ZZE14#..GCC GRAY,TRIM1# |
1 | ||
| 71811-02320E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-06060B1 |
ZZE14#..GCC GRAY,TRIM1# |
1 | ||
| 71861-06060E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06070E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 71875-06070B1 |
ZZE14#..GCC GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06370 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06320E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 71876-06320B1 |
ZZE14#..GCC GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06400 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02E20E0 |
ZZE142..GLI SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-02E50B0 |
ZZE142..GCC GRAY,TRIM1# |
2 | ||
| 71910-02E50E0 |
ZZE142..GCC GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B2 |
ZZE14#..GCC W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010P4 |
ZZE14#..GCC W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B2 |
ZZE14#..GCC W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010P4 |
ZZE14#..GCC W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-02040 |
ZZE14#..GCC |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-02170 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02170 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06020 |
ZRE143,ZZE14#..4FC..(18J,20E,GLI,XLI) |
2 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-02050 |
ZZE14#..GCC |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-06030E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 72525-06030B1 |
ZZE14#..GCC GRAY,TRIM1# |
1 | ||
| 82666M - HOLDER, CONNECTOR | ||||
| 82666-12420 |
ZZE14#..GCC |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90468-18008 | ||||
| 91622-B1018 | ||||
| Linked diagrams | ||||
| 7104 | ||||

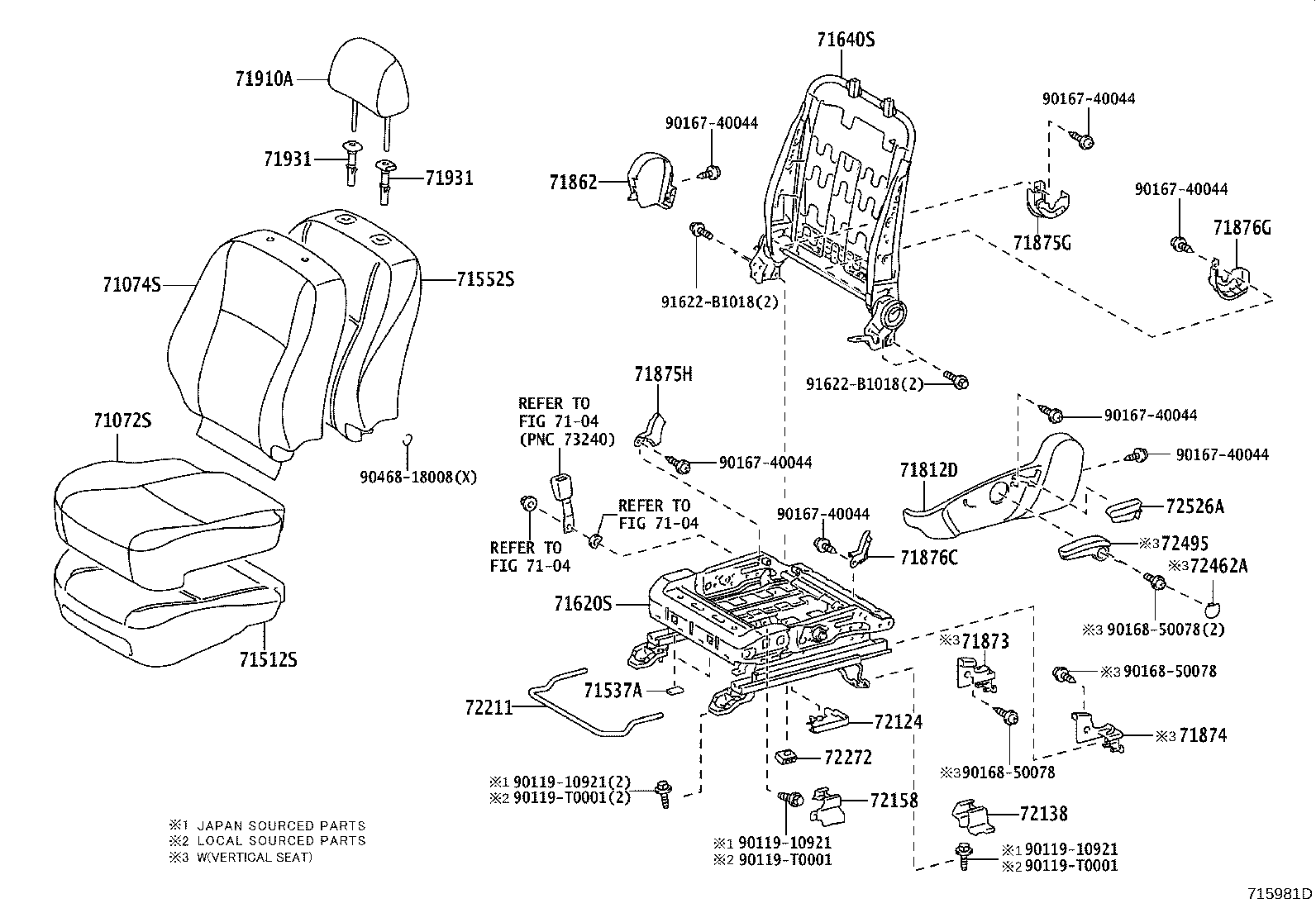

ILLUST NO. 2 OF 2(0901- )GCC
LH MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-02Q50B0 |
ZZE142..GLI GRAY,TRIM1# |
1 | ||
| 71072-02Q50E0 |
ZZE142..GLI GREGE,TRIM4# |
1 | ||
| 71072-02U90E0 |
ZZE142..GLI SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-0Z150E0 |
ZZE142..GLI SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 71074-02X50B0 |
ZZE142..GCC GRAY,TRIM1# |
1 | ||
| 71074-02X50E0 |
ZZE142..GCC GREGE,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-02280 |
ZRE143,ZZE142..4FC..(18J,20E,GLI) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
4 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-02450 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-02150 |
ZZE142..GLI |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-02360 |
ZRE143,ZZE14#..4FC..(18J,20E,GLI,XLI) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02240B0 |
ZZE142..GLI GRAY,TRIM1# |
1 | ||
| 71812-02240E0 |
ZRE143,ZZE142..4FC..(18J,20E,GLI) GREGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06070B1 |
ZZE14#..GCC GRAY,TRIM1# |
1 | ||
| 71862-06070E0 |
ZRE143,ZZE14#..4FC..(18J,20E,GLI,XLI) GREGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06250 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI)..(GCC,TAIW) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06260 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V,GLI)..(GCC,TAIW) |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06370 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-06070E0 |
ZRE143,ZZE14#..4FC..(18J,20E,GLI,XLI) GREGE,TRIM4# |
1 | ||
| 71875-06070B1 |
ZZE14#..GCC GRAY,TRIM1# |
1 | ||
| 71876C - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06320E0 |
ZRE143,ZZE14#..4FC..(18J,20E,GLI,XLI) GREGE,TRIM4# |
1 | ||
| 71876-06320B1 |
ZZE14#..GCC GRAY,TRIM1# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-06400 |
ZRE143,ZZE14#..4FC..(18J,20E,GLI,XLI) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02E20E0 |
ZZE142..GLI SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
2 | ||
| 71910-02E50B0 |
ZZE142..GCC GRAY,TRIM1# |
2 | ||
| 71910-02E50E0 |
ZZE142..GCC GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B2 |
ZZE14#..GCC W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010P4 |
ZZE14#..GCC W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-44020B2 |
ZZE14#..GCC W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47010P4 |
ZZE14#..GCC W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71930-44020E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W(LOCK),GREGE,TRIM4# |
2 | ||
| 71931-47010E4 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) W/O(LOCK),GREGE,TRIM4# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-02040 |
ZRE143,ZZE14#..4FC..(18J,20E,GLI,XLI) |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02160 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-06020 |
ZRE143,ZZE14#..4FC..(18J,20E,GLI,XLI) |
2 | ||
| 72272 - CLAMP, SEAT TRACK CONTROL CABLE | ||||
| 72272-02050 |
ZZE14#..GCC |
2 | ||
| 72462A - COVER, VERTICAL ADJUSTER LH | ||||
| 72462-06010B1 |
ZZE142..GLI GRAY,TRIM1# |
1 | ||
| 72462-06010E0 |
ZRE143,ZZE142..4FC..(18J,20E,GLI) GREGE,TRIM4# |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72494-02100B0 |
ZZE142..GLI GRAY,TRIM1# |
1 | ||
| 72494-02100E0 |
ZRE143,ZZE142..4FC..(18J,20E,GLI) GREGE,TRIM4# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-06060B1 |
ZZE142..GLI GRAY,TRIM1# |
1 | ||
| 72526-06060E0 |
ZRE143,ZZE142..4FC..(18J,20E,GLI) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90468-18008 | ||||
| 91622-B1018 | ||||
| Linked diagrams | ||||
| 7104 | ||||
