ZZE142L-GEPNKV (2009)
Toyota Corolla/Altis
(0901- )GCC

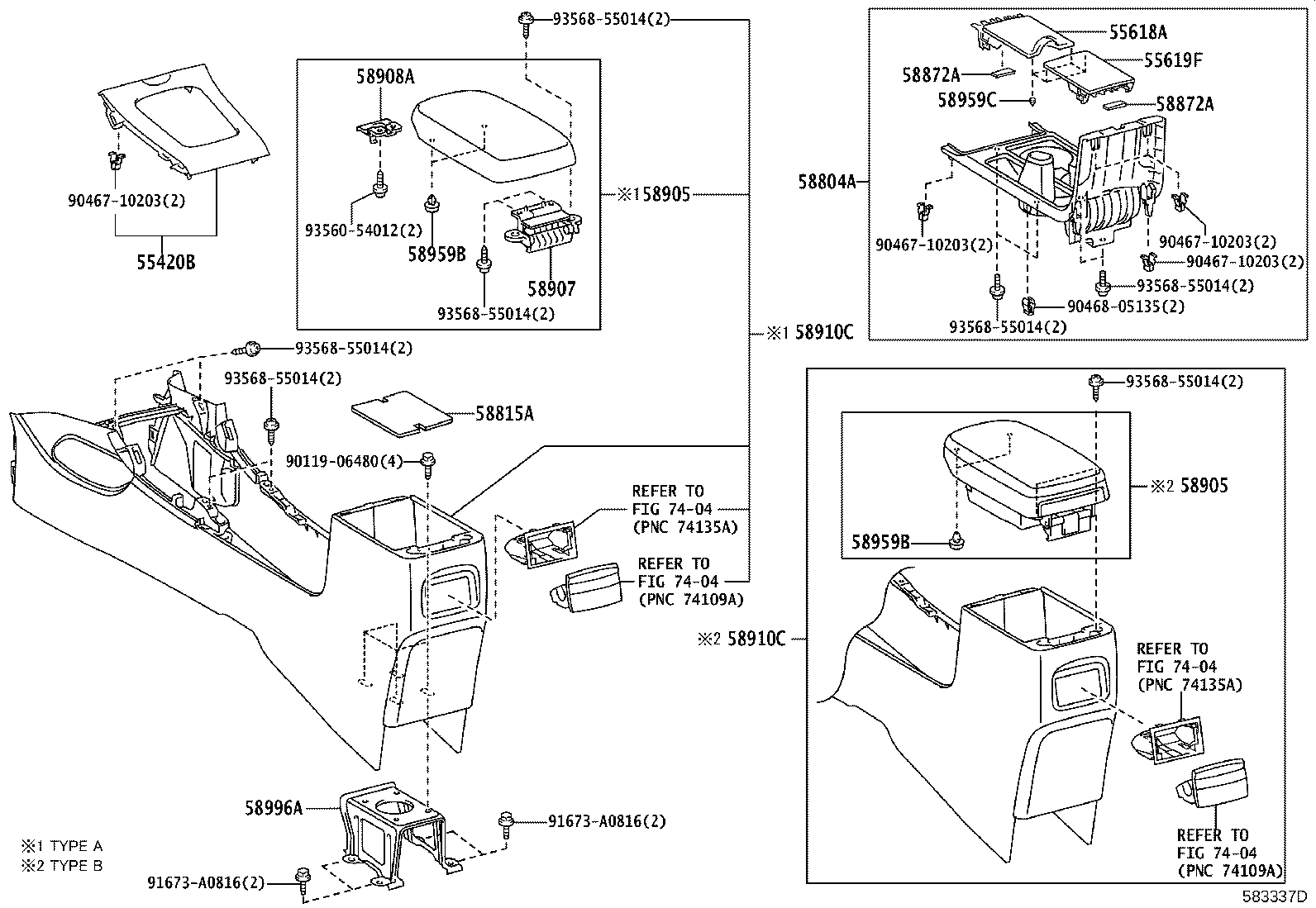

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55420B - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55420-02450 |
ZZE14#..GCC INSTRUMENT PANEL CENTER CLUSTER-SILVER |
1 | ||
| 55420-02550 |
ZZE14#..4FC..(18J,GLI,XLI) |
1 | ||
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55618-02110B0 |
ZZE14#..(16E,16G,18G,GLI,XLI)..(GCC,PHL,VN) GRAY,TRIM1# |
1 | ||
| 55618-02110E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 55619F - HOLDER, CONSOLE BOX CUP, NO.2 | ||||
| 55619-02120B0 |
ZZE14#..(16E,16G,18G,GLI,XLI)..(GCC,PHL,VN) GRAY,TRIM1# |
1 | ||
| 55619-02120E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-02090B0 |
ZZE14#..(16E,16G,18G,GLI,XLI)..(GCC,PHL,VN) GRAY,TRIM1# |
1 | ||
| 58804-02090E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 58872A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58872-02040 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 58872A - CUSHION, CONSOLE BOX, NO.2 | ||||
| 58872-02040 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-02290B0 |
ZZE14#..GCC GRAY,TRIM1#,TYPE A:REFER ILLUST. |
1 | ||
| 58905-02670E1 |
ZZE14#..GCC CONSOLE BOX-WITH(LID & FABRIC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 58905-02490E0 |
ZZE142..GLI CONSOLE BOX-WITH(LID & LEATHER),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 58905-02290E0 |
ZZE14#..GCC GREGE,TRIM4#,TYPE A:REFER ILLUST. |
1 | ||
| 58905-02670B1 |
ZZE14#..GCC CONSOLE BOX-WITH(LID & FABRIC),GRAY,TRIM1#,TYPE B:REFER ILLUST. |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-02290B0 |
ZZE14#..GCC GRAY,TRIM1#,TYPE A:REFER ILLUST. |
1 | ||
| 58905-02670E1 |
ZZE14#..GCC CONSOLE BOX-WITH(LID & FABRIC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 58905-02490E0 |
ZZE142..GLI CONSOLE BOX-WITH(LID & LEATHER),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 58905-02290E0 |
ZZE14#..GCC GREGE,TRIM4#,TYPE A:REFER ILLUST. |
1 | ||
| 58905-02670B1 |
ZZE14#..GCC CONSOLE BOX-WITH(LID & FABRIC),GRAY,TRIM1#,TYPE B:REFER ILLUST. |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-02110 |
ZZE14#..GCC |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-33030 |
ZZE14#..GCC |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-02220B0 |
ZZE14#..GCC GRAY,TRIM1#,TYPE A:REFER ILLUST. |
1 | ||
| 58910-02240E0 |
ZZE14#..GCC CONSOLE BOX-WITH(LID & FABRIC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 58910-02230E0 |
ZZE142..GLI CONSOLE BOX-WITH(LID & LEATHER),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 58910-02220E0 |
ZZE14#..GCC GREGE,TRIM4#,TYPE A:REFER ILLUST. |
1 | ||
| 58910-02240B0 |
ZZE14#..GCC CONSOLE BOX-WITH(LID & FABRIC),GRAY,TRIM1#,TYPE B:REFER ILLUST. |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-02220B0 |
ZZE14#..GCC GRAY,TRIM1#,TYPE A:REFER ILLUST. |
1 | ||
| 58910-02240E0 |
ZZE14#..GCC CONSOLE BOX-WITH(LID & FABRIC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 58910-02230E0 |
ZZE142..GLI CONSOLE BOX-WITH(LID & LEATHER),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 58910-02220E0 |
ZZE14#..GCC GREGE,TRIM4#,TYPE A:REFER ILLUST. |
1 | ||
| 58910-02240B0 |
ZZE14#..GCC CONSOLE BOX-WITH(LID & FABRIC),GRAY,TRIM1#,TYPE B:REFER ILLUST. |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
2 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-12040 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
4 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-02080 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| Common parts | ||||
| 90119-06480 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 91673-A0816 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7404 | ||||
