ZZE142L-GEPNKV (2009)

Toyota Corolla/Altis

Production Jan 2009 - Jul 2010
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )ZZE142..18J,GLI,XLI..GCC,IDN ; (0712-)ZRE141,142,ZZE141..4FC,5F,6F..

Click highlighted areas on diagram

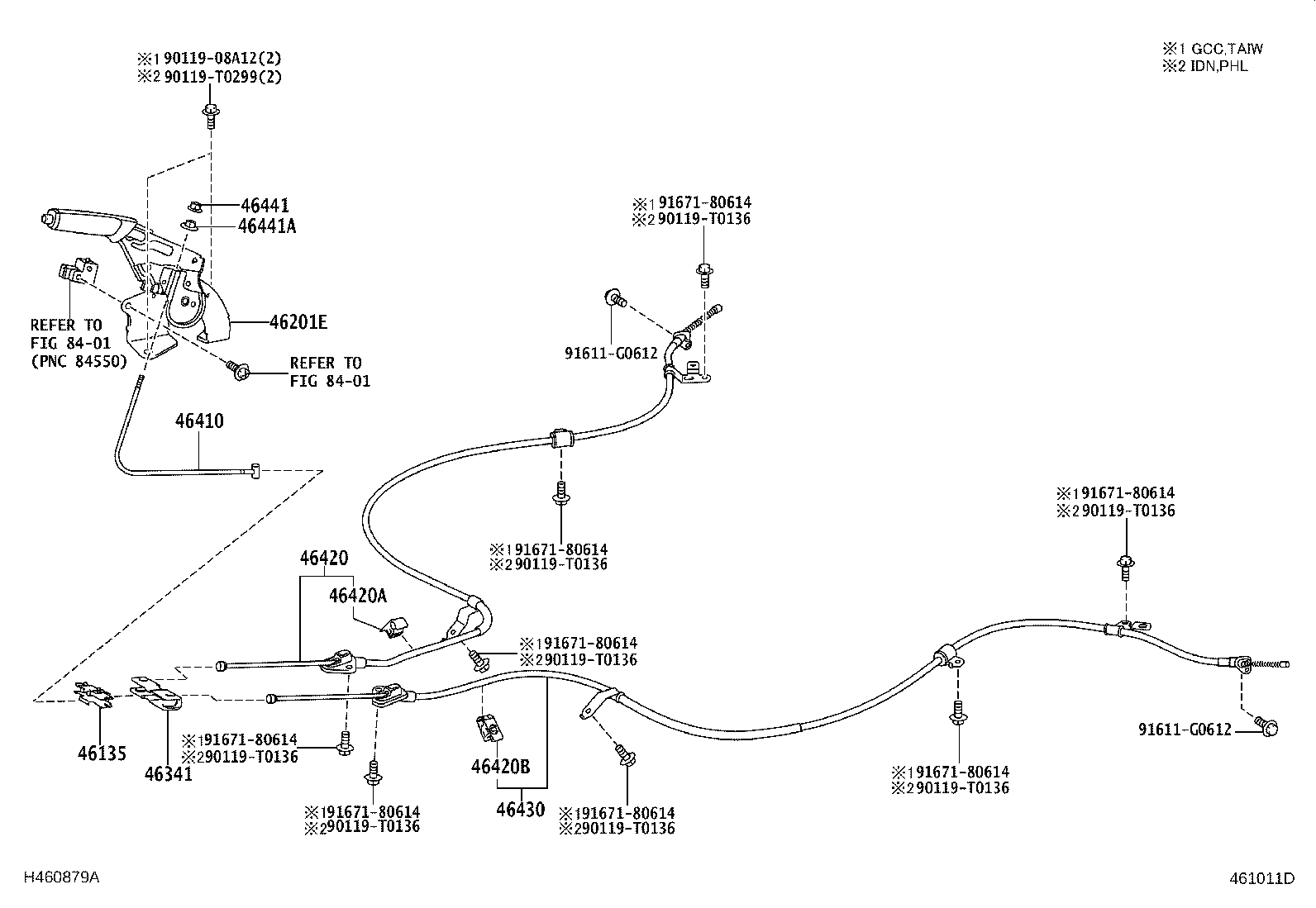

DRUM BRAKE

diagram 46135 46201E 46341 46410 46420 46420A 46420B 46430 46441 46441A 8401 8401 9011908A12 90119T0136 90119T0136 90119T0136 90119T0136 90119T0136 90119T0136 90119T0136 90119T0136 90119T0299 91611G0612 91611G0612 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614 9167180614
Part # Description Qty Price
46135 - STOPPER, PARKING BRAKE CABLE END
46135-12010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-12440B0

ZZE14#..GCC

REAR WHEEL BRAKE-DRUM BRAKE,DK.GRAY,TRIM1#

 1
46201-02410E0

ZRE143,ZZE14#..(18E,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

ASH BROWN,TRIM4#

 1
46201-02410B0

ZRE143,ZZE14#..(18E,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

DK.GRAY,TRIM1#

 1
46201-12440E0

ZZE14#..GCC

REAR WHEEL BRAKE-DRUM BRAKE,ASH BROWN,TRIM4#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12040

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-02130

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
46410-12300

ZZE14#..GCC

REAR WHEEL BRAKE-DRUM BRAKE

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-02210

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
46420-12670

ZZE14#..GCC

REAR WHEEL BRAKE-DRUM BRAKE

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
46402-12020

ZZE14#..GCC

REAR WHEEL BRAKE-DRUM BRAKE

 1
46402-02050

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
46402-12020

ZZE14#..GCC

REAR WHEEL BRAKE-DRUM BRAKE

 1
46402-02050

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-02210

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
46430-12560

ZZE14#..GCC

REAR WHEEL BRAKE-DRUM BRAKE

 1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
46441A - NUT, WIRE ADJUSTING, NO.2
46441-12010

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
Common parts
90119-08A12
90119-T0136
90119-T0299
91611-G0612
91671-80614
