ZZE142L-GEPDKR (2007)

Toyota Corolla/Altis

Production Dec 2007 - Jul 2010
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )1ZZFE

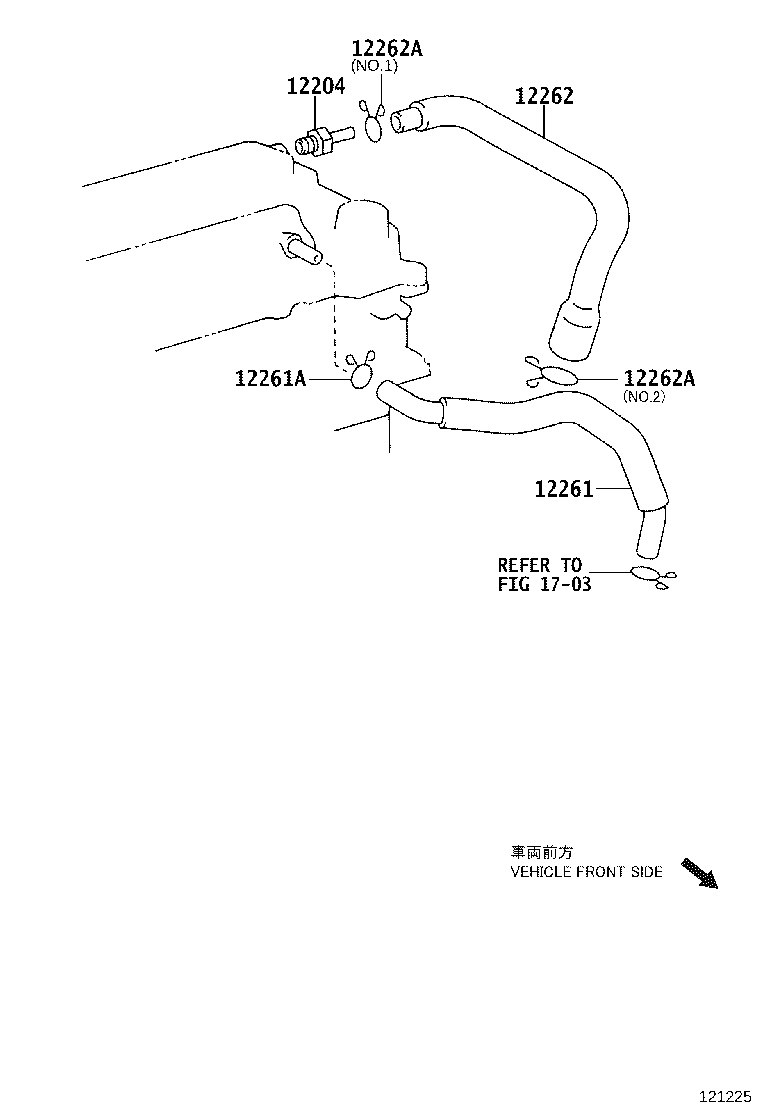

diagram 12204 12261 12261A 12262 12262A 12262A 1703
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-22051

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
12261 - HOSE, VENTILATION
12261-0D120

1ZZFE..ZZE142..LHD..(18E,18J,GLI,XLI)

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-21152

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
12262 - HOSE, VENTILATION, NO.2
12262-0D120

1ZZFE..ZZE142..LHD..(18E,18J,GLI,XLI)

(L)

 1
12262-22130

1ZZFE..ZZE142..LHD..(18E,18J,GLI,XLI)

(J)

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-18002

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

NO.2

 1
90467-13103

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

NO.1

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90466-18002

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

NO.2

 1
90467-13103

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

NO.1

 1
Linked diagrams
1703
