ZZE142L-GEPDKR (2007)

Toyota Corolla/Altis

Production Dec 2007 - Jul 2010
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0712- )

Click highlighted areas on diagram

MANUAL HEATER CONTROL

diagram 5501 55901 55902B 55903A 55906D 55909C 55910B 55910B 55910B
Part # Description Qty Price
55901 - BASE SUB-ASSY, HEATER CONTROL
55901-02090

ZZE14#..4FC..(18J,GLI,XLI)

 1
55902B - CONTROL SUB-ASSY, HEATER
55902-02090

ZZE14#..4FC..(18J,GLI,XLI)

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-02170

ZZE14#..4FC..(18J,GLI,XLI)

 1
55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2
55906-0K010

ZZE14#..4FC..(18J,GLI,XLI)

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K010

ZZE14#..4FC..(18J,GLI,XLI)

 1
55910B - BULB, HEATER CONTROL
90010-01122

ZZE14#..4FC..(18J,GLI,XLI)

 3
55910B - BULB, HEATER CONTROL
90010-01122

ZZE14#..4FC..(18J,GLI,XLI)

 3
55910B - BULB, HEATER CONTROL
90010-01122

ZZE14#..4FC..(18J,GLI,XLI)

 3
Linked diagrams
5501

ILLUST NO. 1 OF 3(0712- )

Click highlighted areas on diagram

AUTO HEATER CONTROL

diagram 55900
Part # Description Qty Price

ILLUST NO. 2 OF 3(0712- )LHD

Click highlighted areas on diagram

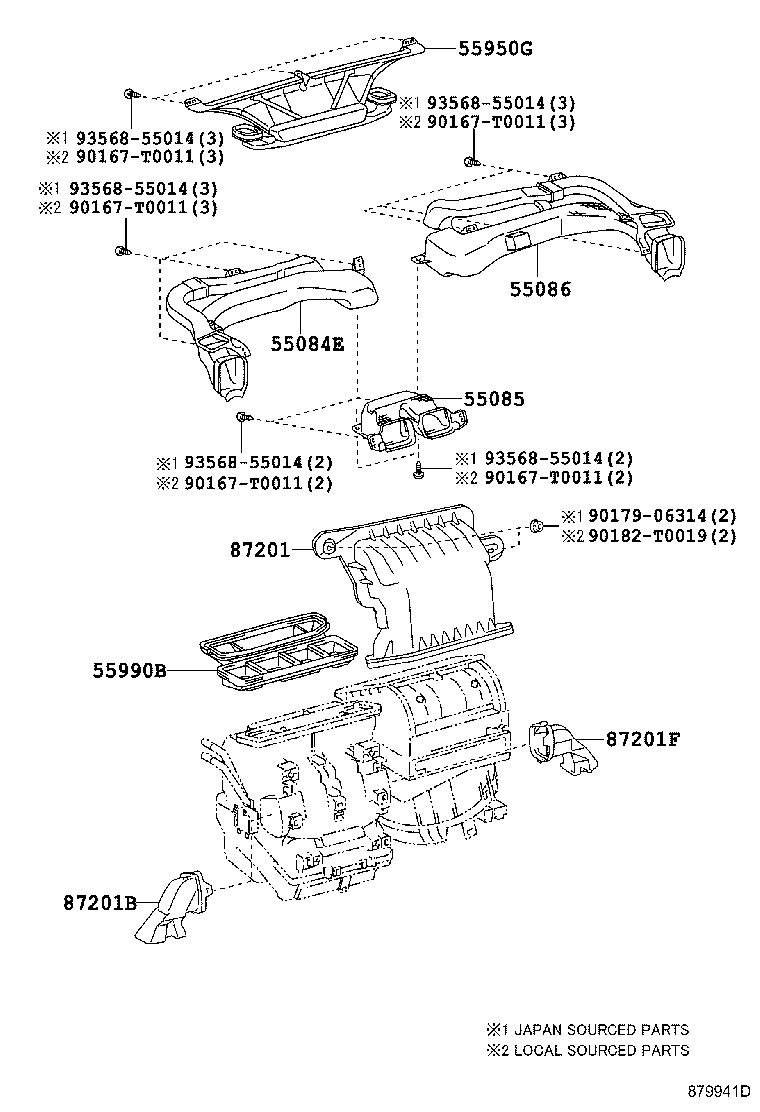

AIR DUCT

diagram 55084E 55085 55086 55950G 55990B 87201 87201B 87201F 90167T0011 90167T0011 90167T0011 90167T0011 90167T0011 9017906314 90182T0019 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-02070

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55085-02110

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3
55086-02120

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-02200

ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-02110

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87220-02100

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-02380

ZRE143,ZZE14#..GCC,TAIW

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87211-02390

ZRE143,ZZE14#..GCC,TAIW

 1
Common parts
90167-T0011
90179-06314
90182-T0019
93568-55014

ILLUST NO. 3 OF 3(0712- )

Click highlighted areas on diagram

SENSOR

diagram 88505 88625H 88625Q 886880Z330 886880Z340 886880Z350 886880Z360 88790B
Part # Description Qty Price
Common parts
88688-0Z330
88688-0Z340
88688-0Z350
88688-0Z360
