ZZE142L-GEPDKR (2007)

Toyota Corolla/Altis

Production Dec 2007 - Jul 2010
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

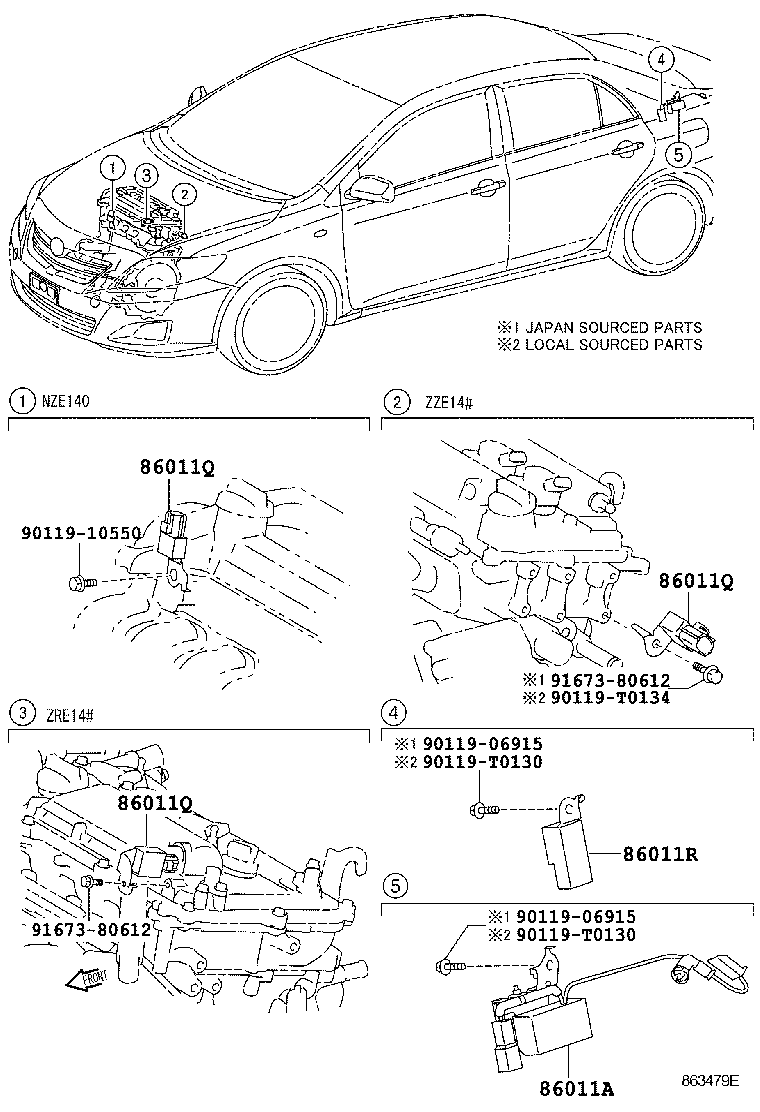

ILLUST NO. 2 OF 2(0712- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011Q 86011Q 86011Q 86011R 9011906915 9011906915 9011910550 90119T0130 90119T0130 90119T0134 9167380612 9167380612
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04154

ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
86011Q - CONDENSER, RADIO SETTING
90980-04154

ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
86011Q - CONDENSER, RADIO SETTING
90980-04154

ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
86011R - CONDENSER, RADIO SETTING
90980-04179

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
Common parts
90119-06915
90119-10550
90119-T0130
90119-T0134
91673-80612

ILLUST NO. 1 OF 3(0712- )

Click highlighted areas on diagram

diagram 86120 86120A 86120A 86190C 86211 86212 86221A 86221D 90119T0260 90119T0260 9015350010 9015350010 90153T0001 90153T0001 9167180616 9167180616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02A00

ZZE142..18J..TAIW

PANASONIC,ID=52836

 1
86120-02A00

ZZE142..18J..TAIW

PANASONIC,ID=52836,TYPE C:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-02230

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
86212 - BRACKET, RADIO, NO.2
86212-02230

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
Common parts
90119-T0260
90153-50010
90153-T0001
91671-80616

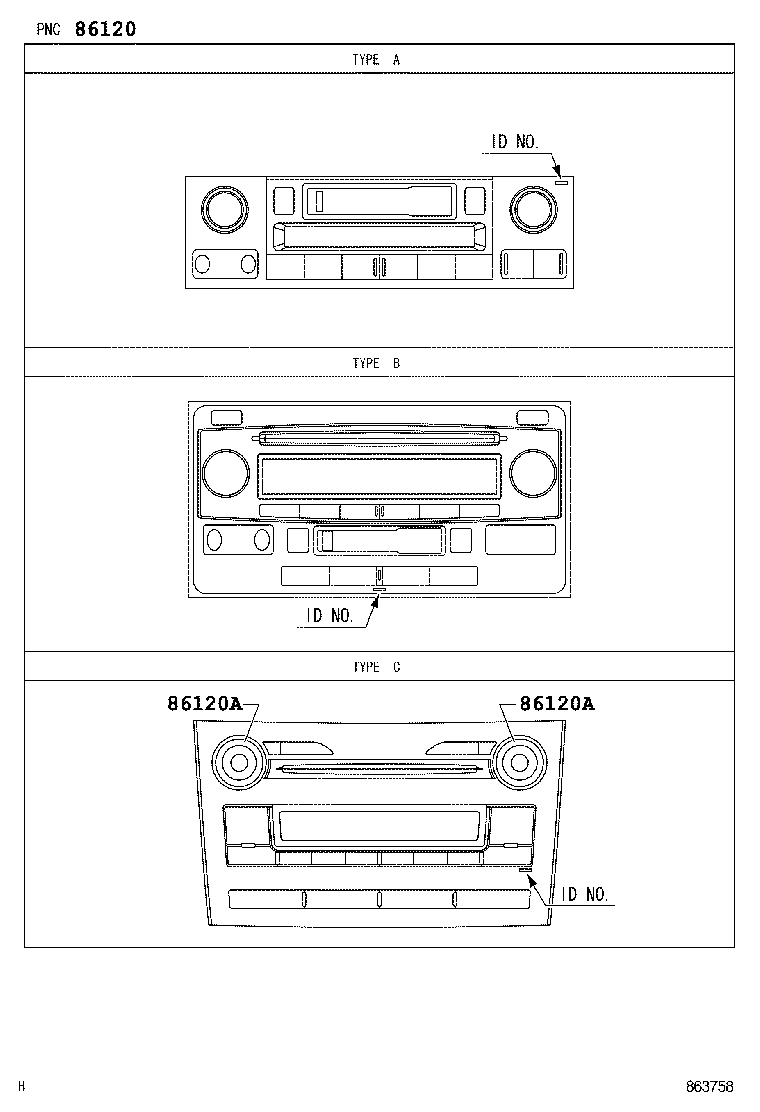

ILLUST NO. 2 OF 3(0712- )

Click highlighted areas on diagram

diagram 86120 86120A 86120A
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-02A00

ZZE142..18J..TAIW

PANASONIC,ID=52836

 1
86120-02A00

ZZE142..18J..TAIW

PANASONIC,ID=52836,TYPE C:REFER TO ILLUSTRATION

 1
