Toyota Corolla/altis ZZE142 MUDGUARD & SPOILER

Part #	Description	Period	Qty
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-12060	ZRE143,ZZE14#..GCC,TAIW	11/2008 - 07/2010	1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-12060	ZRE143,ZZE14#..GCC,TAIW	11/2008 - 07/2010	1
75867B - CLIP, ROCKER PANEL MOULDING
75867-12040	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	16
75867B - CLIP, ROCKER PANEL MOULDING
75867-12040	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	16
75867B - CLIP, ROCKER PANEL MOULDING
75867-12040	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	16
75867B - CLIP, ROCKER PANEL MOULDING
75867-12040	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	16
76911B - MUDGUARD, SIDE, RH
76911-02911	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	1
76911B - MUDGUARD, SIDE, RH
76911-02911	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	1
76912D - MUDGUARD, SIDE, LH
76912-02911	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	1
76912D - MUDGUARD, SIDE, LH
76912-02911	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	1
76924A - RETAINER, SIDE MUDGUARD, NO.2
76924-12040	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	18
76924A - RETAINER, SIDE MUDGUARD, NO.2
76924-12040	ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)	12/2007 - 07/2010	18
Common parts
90159-60498
90159-60602
90162-40035
90183-06019
90189-04059
90189-06006
90189-06013
90467-06165C0
Linked diagrams
5302

ZZE142L-GEPDKR (2007)

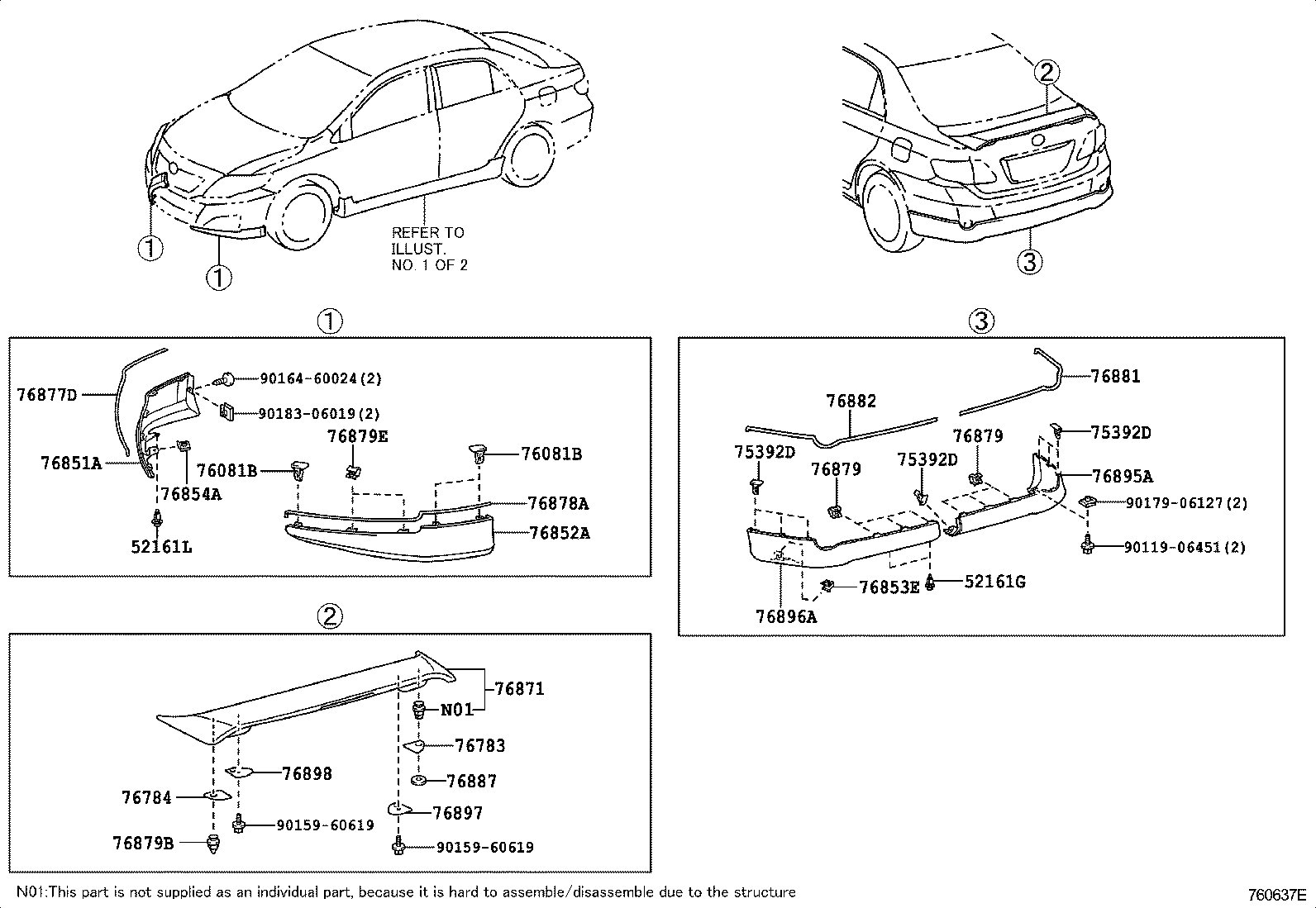

ILLUST NO. 1 OF 2(0712- )

ILLUST NO. 2 OF 2(0712-1007)GCC,TAIW ; (0712-1008)ZRE143..TH

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
90119-06451
90159-60619
90164-60024
90179-06127
90183-06019
