ZZE142L-GEPDKR (2007)
Toyota Corolla/Altis
ILLUST NO. 2 OF 2(0712- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-02F20E1 |
ZRE143,ZZE142..(18E,18J,20E)..TAIW GREGE,TRIM4# |
1 | ||
| 74310-02F20B1 |
ZRE143,ZZE142..(18E,18J,20E)..TAIW LT.GRAY,TRIM1# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-52010B1 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 74317-52010E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74318-52020E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
1 | ||
| 74318-52020B1 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) LT.GRAY,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-02880B1 |
ZRE143,ZZE142..(18J,20E)..TAIW LT.GRAY,TRIM1# |
1 | ||
| 74320-02880E1 |
ZRE143,ZZE142..(18J,20E)..TAIW GREGE,TRIM4# |
1 | ||
| 74336 - CLIP, VISOR ARM SET | ||||
| 74336-52010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
4 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040E0 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) GREGE,TRIM4# |
2 | ||
| 74348-33040B1 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) LT.GRAY,TRIM1# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-52020E0 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW GREGE,TRIM4# |
3 | ||
| 74610-52020B1 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW LT.GRAY,TRIM1# |
3 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-52030E0 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW GREGE,TRIM4# |
6 | ||
| 74612-52030B1 |
ZRE143,ZZE142..(18E,18J,20E,20G,20V)..TAIW LT.GRAY,TRIM1# |
6 | ||
| Linked diagrams | ||||
| 7403 | ||||

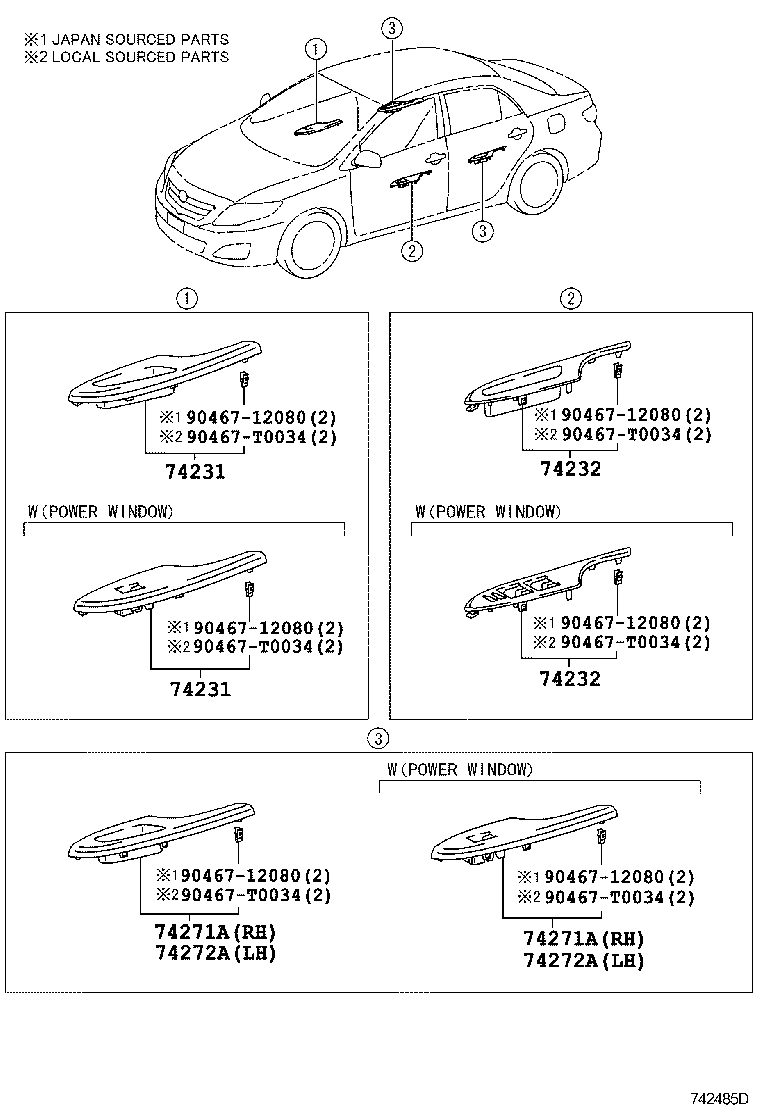

ILLUST NO. 1 OF 2(0712- )LHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02A30B0 |
ZZE14#..(16J,18J)..TAIW GRAY,TRIM1# |
1 | ||
| 74231-02A30E0 |
ZZE142..18J..TAIW GREGE,TRIM4# |
1 | ||
| 74231-02A30B0 |
ZZE142..18J..TAIW GRAY,TRIM11 |
1 | ||
| 74231-02A30B2 |
ZZE142..18J..TAIW DK.GRAY,TRIM12 |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-02A30B0 |
ZZE14#..(16J,18J)..TAIW GRAY,TRIM1# |
1 | ||
| 74231-02A30E0 |
ZZE142..18J..TAIW GREGE,TRIM4# |
1 | ||
| 74231-02A30B0 |
ZZE142..18J..TAIW GRAY,TRIM11 |
1 | ||
| 74231-02A30B2 |
ZZE142..18J..TAIW DK.GRAY,TRIM12 |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-02520E0 |
ZZE142..18J..TAIW GREGE,TRIM4# |
1 | ||
| 74232-02520B2 |
ZZE142..18J..TAIW DK.GRAY,TRIM12 |
1 | ||
| 74232-02520B0 |
ZZE14#..(16J,18J)..TAIW GRAY,TRIM1# |
1 | ||
| 74232-02520B0 |
ZZE142..18J..TAIW GRAY,TRIM11 |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-02520E0 |
ZZE142..18J..TAIW GREGE,TRIM4# |
1 | ||
| 74232-02520B2 |
ZZE142..18J..TAIW DK.GRAY,TRIM12 |
1 | ||
| 74232-02520B0 |
ZZE14#..(16J,18J)..TAIW GRAY,TRIM1# |
1 | ||
| 74232-02520B0 |
ZZE142..18J..TAIW GRAY,TRIM11 |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-02430E0 |
ZZE142..18J..TAIW GREGE,TRIM4# |
1 | ||
| 74271-02430B0 |
ZZE142..18J..TAIW GRAY,TRIM11 |
1 | ||
| 74271-02430B0 |
ZZE14#..(16J,18J)..TAIW GRAY,TRIM1# |
1 | ||
| 74271-02430B2 |
ZZE142..18J..TAIW DK.GRAY,TRIM12 |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-02430E0 |
ZZE142..18J..TAIW GREGE,TRIM4# |
1 | ||
| 74271-02430B0 |
ZZE142..18J..TAIW GRAY,TRIM11 |
1 | ||
| 74271-02430B0 |
ZZE14#..(16J,18J)..TAIW GRAY,TRIM1# |
1 | ||
| 74271-02430B2 |
ZZE142..18J..TAIW DK.GRAY,TRIM12 |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-02420B0 |
ZZE14#..(16J,18J)..TAIW GRAY,TRIM1# |
1 | ||
| 74272-02420E0 |
ZZE142..18J..TAIW GREGE,TRIM4# |
1 | ||
| 74272-02420B0 |
ZZE142..18J..TAIW GRAY,TRIM11 |
1 | ||
| 74272-02420B2 |
ZZE142..18J..TAIW DK.GRAY,TRIM12 |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-02420B0 |
ZZE14#..(16J,18J)..TAIW GRAY,TRIM1# |
1 | ||
| 74272-02420E0 |
ZZE142..18J..TAIW GREGE,TRIM4# |
1 | ||
| 74272-02420B0 |
ZZE142..18J..TAIW GRAY,TRIM11 |
1 | ||
| 74272-02420B2 |
ZZE142..18J..TAIW DK.GRAY,TRIM12 |
1 | ||
| Common parts | ||||
| 90467-12080 | ||||
| 90467-T0034 | ||||
