ZZE142L-GEPDKR (2007)

Toyota Corolla/Altis

Production Dec 2007 - Jul 2010
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )TAIW

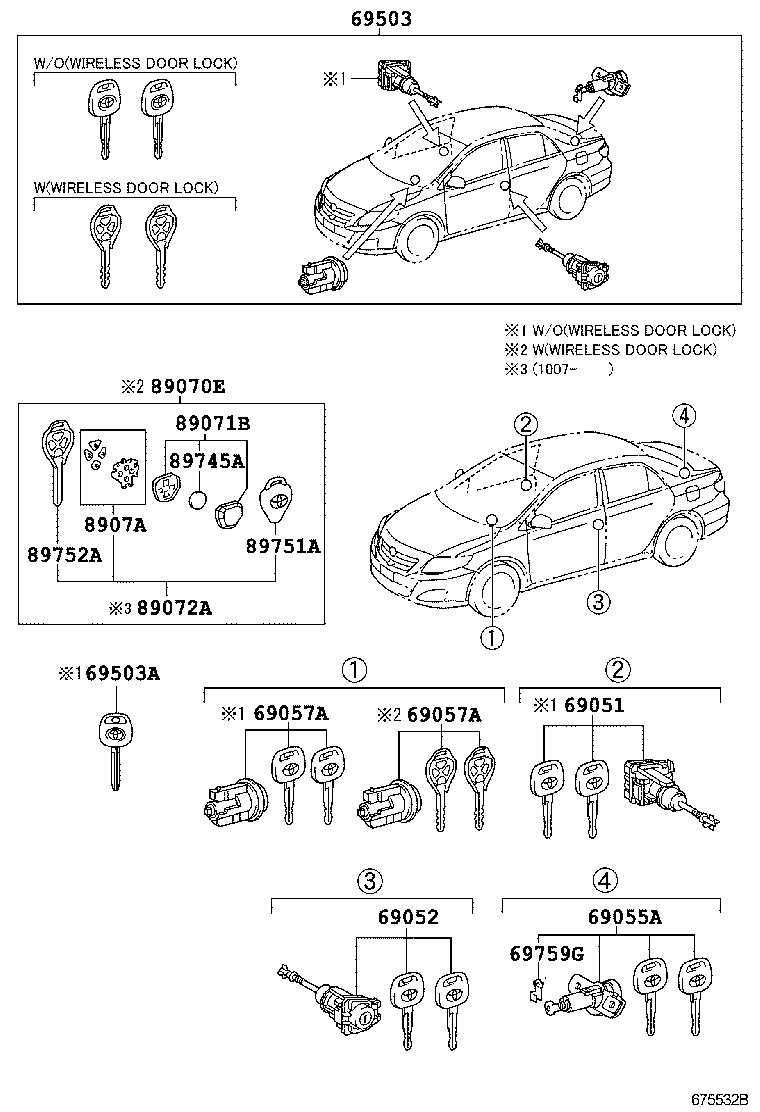

Click highlighted areas on diagram

W/O(SMART ENTRY)

diagram 69051 69052 69055A 69057A 69057A 69503 69503A 69759G 89070E 89071B 89072A 8907A 89745A 89751A 89752A
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-02180

ZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI)

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-02220

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-02440

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-02440

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 1
69503 - CYLINDER SET, LOCK
69005-02500

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24080

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-02370

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 1
89070-0K550

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-12120

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 2
8907A - SWITCH SET, TRANSMITTER
8907A-71020

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 2
89745A - BATTERY, TRANSMITTER
89745-71010

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 1
89751A - COVER, TRANSMITTER HOUSING
89751-02060

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 2
89751-0M010

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 2
89752A - CASE, TRANSMITTER HOUSING
89752-71080

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 1

(0712- )IDN,IND,PHL,TAIW,TH,VN

Click highlighted areas on diagram

W(SMART ENTRY)

diagram 69051 69052 69055A 69503 69503A 69503B 69759G 8424 89745C 89904B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-02180

ZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI)

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-02220

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 1
69503 - CYLINDER SET, LOCK
69005-02500

ZRE143,ZZE142..(18E,18J,20E)..TAIW

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24080

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
Linked diagrams
8424
