ZZE142L-GEPDKR (2007)

Toyota Corolla/Altis

Production Dec 2007 - Jul 2010
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )LHD

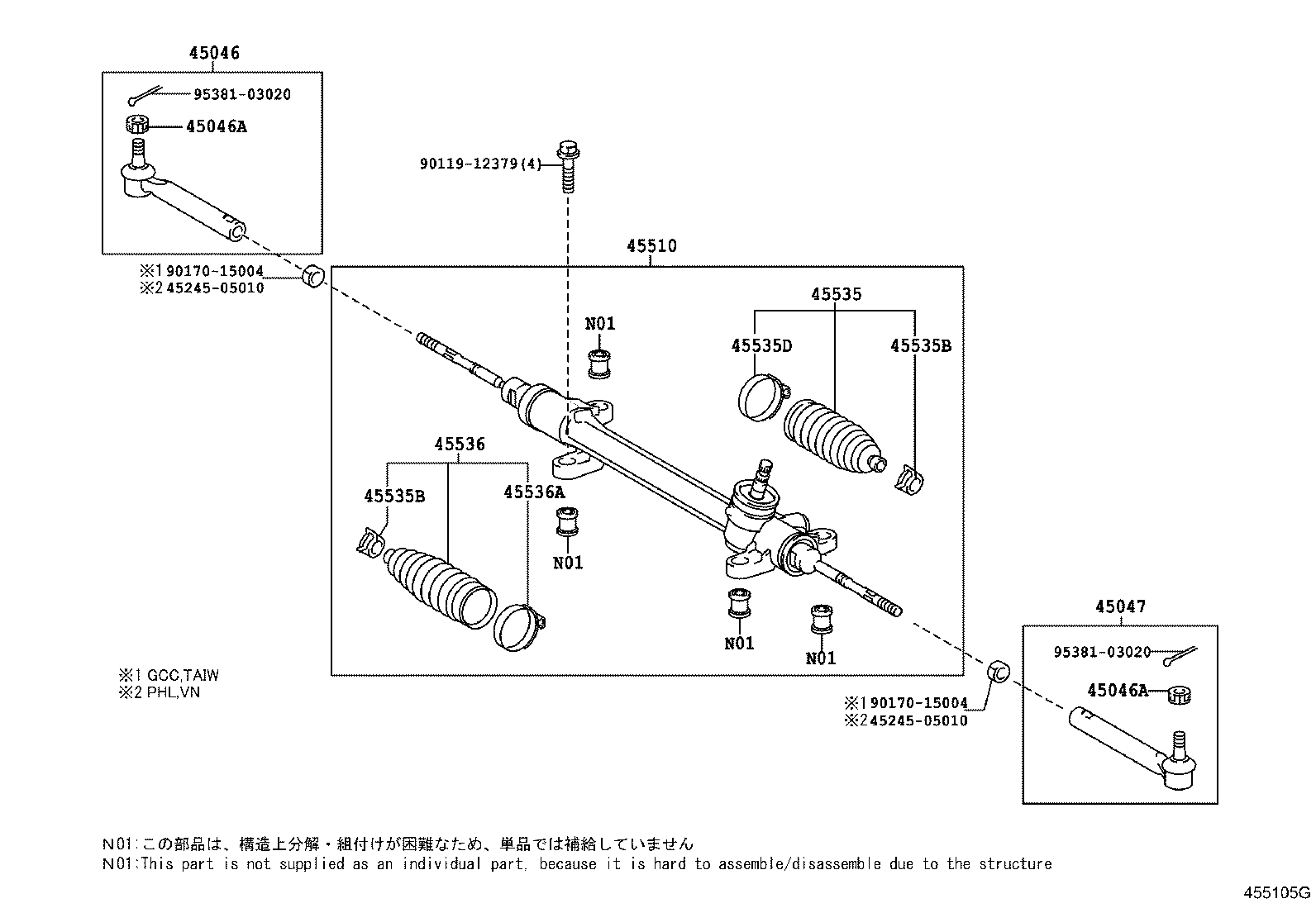

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 4524505010 4524505010 45510 45535 45535B 45535B 45535D 45536 45536A 9011912379 9017015004 9017015004 9538103020 9538103020
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-19435

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

(J)

 2
90171-T0004

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

(L)

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

(J)

 2
90171-T0004

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

(L)

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-19435

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
45510 - GEAR ASSY, STEERING
45510-12450

ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
Common parts
45245-05010
90119-12379
90170-15004
95381-03020
