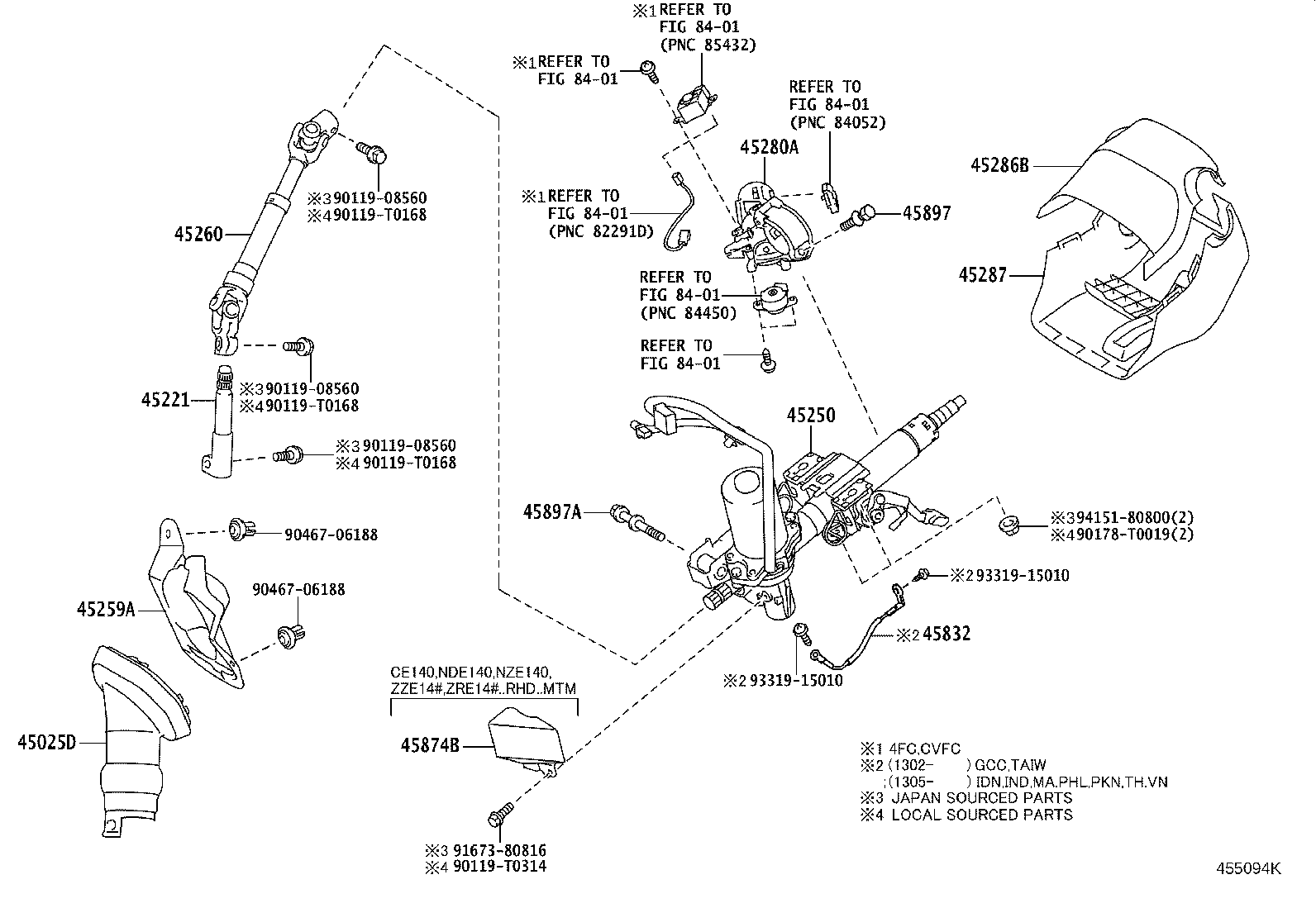

ZZE142L-GEPDKR (2007)
Toyota Corolla/Altis
(0712- )NDE140,NZE140,ZRE141,143,ZZE142..16E,16G,16J,18E,18G,18J,18V,20G,ALT,D,E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45025-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45025-02150 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45221-12350 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45221-12350 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45221-12350 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-12C41 |
ZZE14#..16J,18E,18J |
1 | ||
| 45250-12C41 |
ZZE14#..16J,18E,18J |
1 | ||
| 45250-12C41 |
ZZE14#..16J,18E,18J |
1 | ||
| 45250-12C42 |
ZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI) |
1 | ||
| 45250-12C42 |
ZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI) |
1 | ||
| 45250-12C42 |
ZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI) |
1 | ||
| 45259A - SHEET, COLUMN HOLE COVER SILENCER | ||||
| 45259-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45259-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45259-02140 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-12620 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45260-12620 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45260-12620 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-02270 |
ZRE143,ZZE14#..LHD..(16J,18E,18J,20E,GLI,XLI) |
1 | ||
| 45280-02270 |
ZRE143,ZZE14#..LHD..(16J,18E,18J,20E,GLI,XLI) |
1 | ||
| 45280-02270 |
ZRE143,ZZE14#..LHD..(16J,18E,18J,20E,GLI,XLI) |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-02340B0 |
ZRE143,ZZE142..(18E,18J,20E)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45286-02340B0 |
ZRE143,ZZE142..(18E,18J,20E)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45286-02340B0 |
ZRE143,ZZE142..(18E,18J,20E)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45286-02340E0 |
ZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI) ASH BROWN,TRIM4# |
1 | ||
| 45286-02340E0 |
ZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI) ASH BROWN,TRIM4# |
1 | ||
| 45286-02340E0 |
ZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI) ASH BROWN,TRIM4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-02330E0 |
ZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI) ASH BROWN,TRIM4# |
1 | ||
| 45287-02330E0 |
ZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI) ASH BROWN,TRIM4# |
1 | ||
| 45287-02330E0 |
ZRE143,ZZE14#..LHD..(18E,18J,20E,GLI,XLI) ASH BROWN,TRIM4# |
1 | ||
| 45287-02330B0 |
ZRE143,ZZE142..(18E,18J,20E)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45287-02330B0 |
ZRE143,ZZE142..(18E,18J,20E)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45287-02330B0 |
ZRE143,ZZE142..(18E,18J,20E)..TAIW DK.GRAY,TRIM1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-12020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-12020 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 45897-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| 45897-42010 |
ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW) |
1 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-T0168 | ||||
| 90119-T0314 | ||||
| 90178-T0019 | ||||
| 90467-06188 | ||||
| 91673-80816 | ||||
| 93319-15010 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
