ZZE142L-GEPDKR (2007)

Toyota Corolla/Altis

Production Dec 2007 - Jul 2010
Engine 1ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712- )1ZZFE,3ZZFE..GCC,IDN,MA,PHL,TAIW,TH,VN

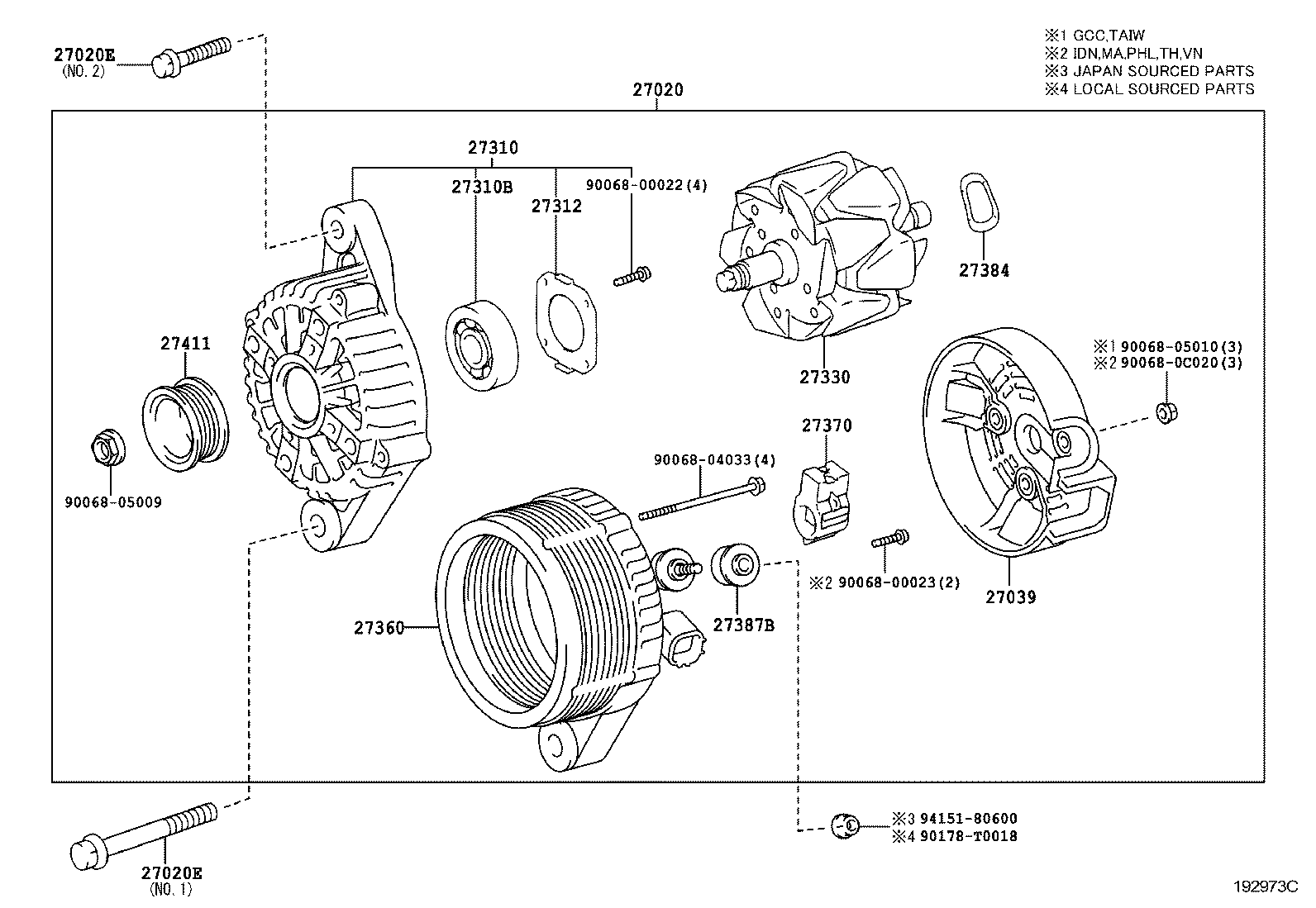

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27020E 27039 27310 27310B 27312 27330 27360 27370 27384 27387B 27411 9006800022 9006800023 9006804033 9006805009 9006805010 900680C020 90178T0018 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0D260

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

NO.1

 1
91511-80830

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

NO.2

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10075

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

NO.1

 1
91511-80830

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

NO.2

 1
27039 - COVER, ALTERNATOR REAR END
27039-0H080

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0D200

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10036

1ZZFE,3ZZFE..ZZE14#..GCC,TAIW

 1
27312 - PLATE, RETAINER
27312-0H080

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0M040

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
27360 - COIL ASSY, ALTERNATOR
27360-0D200

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)

 1
27384 - WASHER
27384-0H080

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-0H080

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
27411 - PULLEY, ALTERNATOR
27411-0D200

1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)

 1
Common parts
90068-00022
90068-00023
90068-04033
90068-05009
90068-05010
90068-0C020
90178-T0018
94151-80600
