ZZE141R-GEPEKE (2008)

Toyota Corolla/Altis

Production Jan 2008 - Aug 2010
Engine 3ZZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

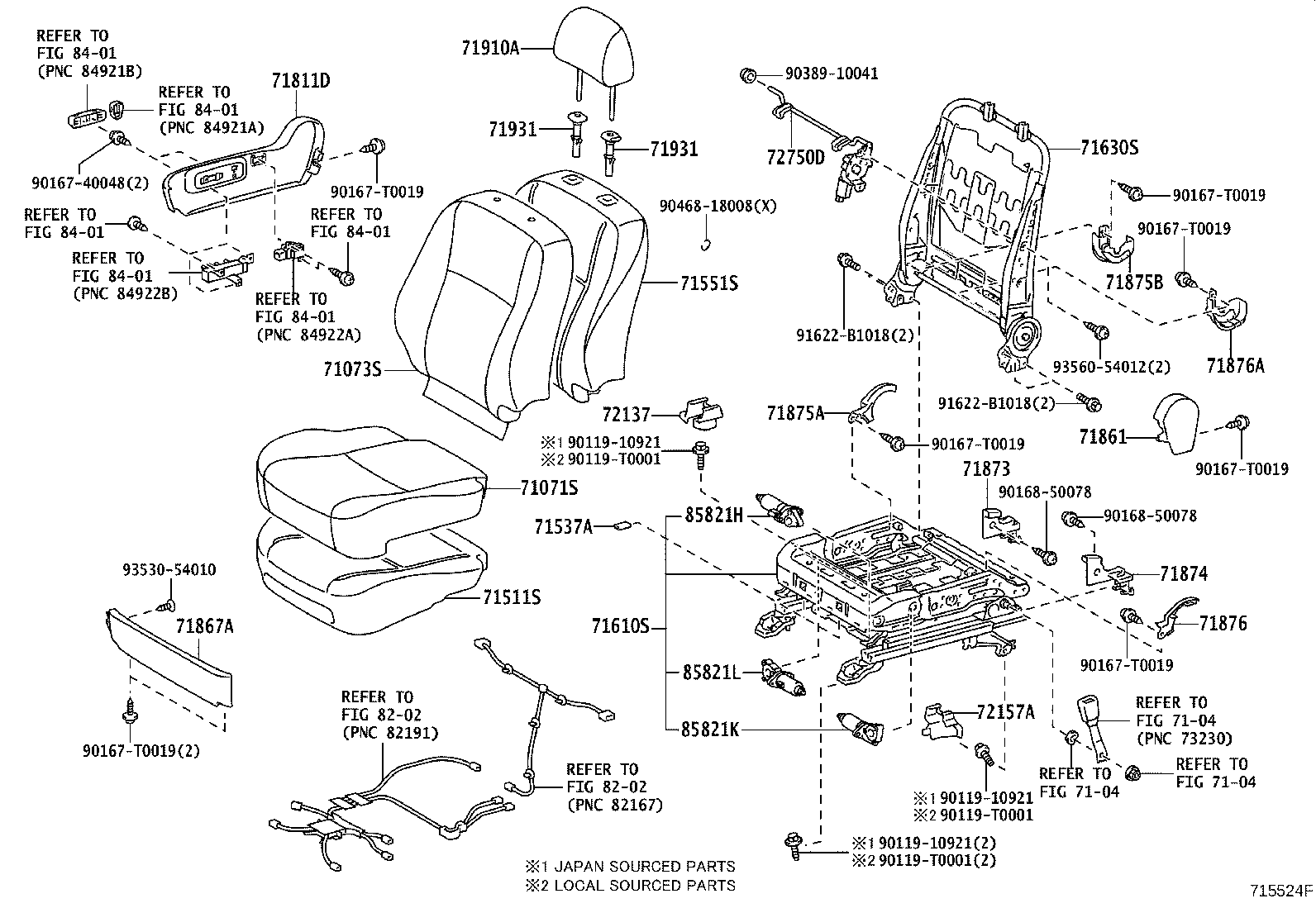

ILLUST NO. 1 OF 2(0801- )IDN,MA,TH

Click highlighted areas on diagram

RH MANUAL SEAT

diagram 7104 7104 7104 71071S 71073S 71511S 71537A 71551S 71610S 71630S 71811D 71861 71873 71874 71875A 71875B 71876 71876A 71910A 71931 71931 72123A 72137 72157A 72211 72272 72462 72494 72525A 9011910921 9011910921 9011910921 90167T0019 90167T0019 90167T0019 90167T0019 90167T0019 90167T0019 90167T0019 9016850078 9016850078 9016850078 9046818008 91622B1018 91622B1018
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-02S70E1

ZZE14#..(16E,18J)..(IDN,MA)

GREGE,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-02V70E0

ZZE14#..(16E,18J)..(IDN,MA)

GREGE,TRIM4#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-02530

ZZE141..MA;ZZE142..18G..IDN;ZRE143,ZZE14#..(16G,16J,18E,18J,20G,LIMO)..(IDN,TH)

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 4
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02630

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-02040

ZZE141..MA;ZZE142..18G..IDN;ZRE143,ZZE14#..(16G,16J,18E,18J,20G,LIMO)..(IDN,TH)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-02470

ZZE142..18G..IDN;ZRE143,ZZE141..(16E,20V)..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18J,20G,LIMO)..(IDN,PHL,TH)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-02350E0

ZZE142..18G..IDN;ZZE142..(18E,18J)..(IDN,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G)

GREGE,TRIM4#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06060E0

ZZE142..18G..IDN;ZZE142..(18E,18J)..(IDN,TH);ZRE143,ZZE141..(16V,20V)..PHL;ZRE143,ZZE141..RHD..4FC..(16E,16G,20G)

GREGE,TRIM4#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06250

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-06260

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-06070E0

ZZE142..18G..IDN;ZZE142..(18E,18J)..(IDN,TH);ZRE143,ZZE141..(16V,20V)..PHL;ZRE143,ZZE141..RHD..4FC..(16E,16G,20G)

GREGE,TRIM4#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-06370

ZZE142..18G..IDN;ZRE143,ZZE141..(16E,20V)..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18J,20G,LIMO)..(IDN,PHL,TH)

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-06320E0

ZZE142..18G..IDN;ZZE142..(18E,18J)..(IDN,TH);ZRE143,ZZE141..(16V,20V)..PHL;ZRE143,ZZE141..RHD..4FC..(16E,16G,20G)

GREGE,TRIM4#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-06400

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-02D00E0

ZZE14#..(16E,18J)..(IDN,MA)

GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020E0

ZZE141..RHD..(16E,16G);ZZE14#..(16V,18E,18G,18J,18V)..(IDN,MA,PHL,TH)

W(LOCK),GREGE,TRIM4#

 2
71931-47010E4

ZZE141..RHD..(16E,16G);ZZE14#..(16V,18E,18G,18J,18V)..(IDN,MA,PHL,TH)

W/O(LOCK),GREGE,TRIM4#

 2
71931-02130E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

W/O(LOCK),GREGE,TRIM4#

 2
71930-02370E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020E0

ZZE141..RHD..(16E,16G);ZZE14#..(16V,18E,18G,18J,18V)..(IDN,MA,PHL,TH)

W(LOCK),GREGE,TRIM4#

 2
71931-47010E4

ZZE141..RHD..(16E,16G);ZZE14#..(16V,18E,18G,18J,18V)..(IDN,MA,PHL,TH)

W/O(LOCK),GREGE,TRIM4#

 2
71931-02130E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

W/O(LOCK),GREGE,TRIM4#

 2
71930-02370E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-02050

ZZE142..18G..IDN;ZRE143,ZZE141..(16E,20V)..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18J,20G,LIMO)..(IDN,PHL,TH)

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-02170

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-02170

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-06020

ZZE142..18G..IDN;ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18J,20G,LIMO)..(IDN,PHL,TH)

 2
72272 - CLAMP, SEAT TRACK CONTROL CABLE
72272-02050

ZZE142..18G..IDN;ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18J,20G,LIMO)..(IDN,PHL,TH)

 1
72462 - COVER, VERTICAL ADJUSTER RH
72462-06010E0

ZZE142..18G..IDN;ZZE142..(18E,18J)..(IDN,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G)

GREGE,TRIM4#

 1
72494 - HANDLE, VERTICAL ADJUSTING, RH
72494-02090E0

ZZE142..18G..IDN;ZZE142..(18E,18J)..(IDN,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G)

GREGE,TRIM4#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-06060E0

ZZE142..18G..IDN;ZZE142..(18E,18J)..(IDN,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G)

GREGE,TRIM4#

 1
Common parts
90119-10921
90167-T0019
90168-50078
90468-18008
91622-B1018
Linked diagrams
7104

ILLUST NO. 2 OF 2(0801- )IDN,MA,TH

Click highlighted areas on diagram

LH MANUAL SEAT

diagram 7104 7104 7104 71072S 71074S 71512S 71537A 71552S 71620S 71640S 71812D 71862 71875G 71875H 71876C 71876G 71910A 71931 71931 72138 72158 72211 72272 72526A 90119T0001 90119T0001 90119T0001 90167T0019 90167T0019 90167T0019 90167T0019 90167T0019 90167T0019 90167T0019 9046818008 91622B1018 91622B1018
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-02M60E1

ZZE14#..(16E,18J)..(IDN,MA)

GREGE,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-02T90E1

ZZE14#..(16E,18J)..(IDN,MA)

GREGE,TRIM4#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-02320

ZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 4
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-02480

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-02120

ZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-02390

ZZE141..16E..(MA,PHL);ZZE141..(16G,16J,16V,LIMO)..(PHL,TH);ZRE143,ZZE142..(18E,18G,18J,20G,20V)..(IDN,MA,TH)

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-02410E0

ZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G,20V)

GREGE,TRIM4#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-06070E0

ZRE143,ZZE141..RHD..4FC..(16E,16G,20G,20V);ZZE14#..(16V,18E,18G,18J)..(IDN,MA,PHL,TH)

GREGE,TRIM4#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-06370

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
71875H - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-06070E0

ZRE143,ZZE141..RHD..4FC..(16E,16G,20G,20V);ZZE14#..(16V,18E,18G,18J)..(IDN,MA,PHL,TH)

GREGE,TRIM4#

 1
71876C - COVER, RECLINING ADJUSTER INSIDE, LH
71876-06320E0

ZRE143,ZZE141..RHD..4FC..(16E,16G,20G,20V);ZZE14#..(16V,18E,18G,18J)..(IDN,MA,PHL,TH)

GREGE,TRIM4#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-06400

ZZE141..16E..(MA,PHL);ZZE141..(16G,16J,16V,LIMO)..(PHL,TH);ZRE143,ZZE142..(18E,18G,18J,20G,20V)..(IDN,MA,TH)

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-02D00E0

ZZE14#..(16E,18J)..(IDN,MA)

GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020E0

ZZE141..RHD..(16E,16G);ZZE14#..(16V,18E,18G,18J,18V)..(IDN,MA,PHL,TH)

W(LOCK),GREGE,TRIM4#

 2
71931-47010E4

ZZE141..RHD..(16E,16G);ZZE14#..(16V,18E,18G,18J,18V)..(IDN,MA,PHL,TH)

W/O(LOCK),GREGE,TRIM4#

 2
71931-02130E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

W/O(LOCK),GREGE,TRIM4#

 2
71930-02370E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020E0

ZZE141..RHD..(16E,16G);ZZE14#..(16V,18E,18G,18J,18V)..(IDN,MA,PHL,TH)

W(LOCK),GREGE,TRIM4#

 2
71931-47010E4

ZZE141..RHD..(16E,16G);ZZE14#..(16V,18E,18G,18J,18V)..(IDN,MA,PHL,TH)

W/O(LOCK),GREGE,TRIM4#

 2
71931-02130E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

W/O(LOCK),GREGE,TRIM4#

 2
71930-02370E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
72138 - COVER, SEAT TRACK, OUTER LH
72138-02150

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-02160

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-06020

ZZE142..18G..IDN;ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18J,20G,LIMO)..(IDN,PHL,TH)

 2
72272 - CLAMP, SEAT TRACK CONTROL CABLE
72272-02050

ZZE142..18G..IDN;ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18J,20G,LIMO)..(IDN,PHL,TH)

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-06030E0

ZZE142..(18E,18G,18J)..(IDN,MA,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G,20V)

GREGE,TRIM4#

 1
Common parts
90119-T0001
90167-T0019
90468-18008
91622-B1018
Linked diagrams
7104

ILLUST NO. 1 OF 2(0801- )ZRE142..18V,G ; (0801- )ZRE142..IDN,MA,TH..HTWC ; (0801- )NDE140,Z

Click highlighted areas on diagram

RH W(POWER SEAT)

diagram 7104 7104 7104 71071S 71073S 71511S 71537A 71551S 71610S 71630S 71811D 71861 71867A 71873 71874 71875A 71875B 71876 71876A 71910A 71931 71931 72137 72157A 72750D 8202 8202 8401 8401 8401 8401 8401 8401 85821H 85821K 85821L 9011910921 9011910921 9011910921 90119T0001 90119T0001 90119T0001 9016740048 90167T0019 90167T0019 90167T0019 90167T0019 90167T0019 90167T0019 90167T0019 9016850078 9016850078 9038910041 9046818008 91622B1018 91622B1018 9353054010 9356054012
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-02S70E1

ZZE14#..(16E,18J)..(IDN,MA)

GREGE,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-02V70E0

ZZE14#..(16E,18J)..(IDN,MA)

GREGE,TRIM4#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-02530

ZZE141..MA;ZZE142..18G..IDN;ZRE143,ZZE14#..(16G,16J,18E,18J,20G,LIMO)..(IDN,TH)

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-26010

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 4
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02630

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-02040

ZZE141..MA;ZZE142..18G..IDN;ZRE143,ZZE14#..(16G,16J,18E,18J,20G,LIMO)..(IDN,TH)

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-02470

ZZE142..18G..IDN;ZRE143,ZZE141..(16E,20V)..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18J,20G,LIMO)..(IDN,PHL,TH)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-02350E0

ZZE142..18G..IDN;ZZE142..(18E,18J)..(IDN,TH);ZRE143,ZZE141..RHD..4FC..(16E,16G,20G)

GREGE,TRIM4#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06060E0

ZZE142..18G..IDN;ZZE142..(18E,18J)..(IDN,TH);ZRE143,ZZE141..(16V,20V)..PHL;ZRE143,ZZE141..RHD..4FC..(16E,16G,20G)

GREGE,TRIM4#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06250

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-06260

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-06070E0

ZZE142..18G..IDN;ZZE142..(18E,18J)..(IDN,TH);ZRE143,ZZE141..(16V,20V)..PHL;ZRE143,ZZE141..RHD..4FC..(16E,16G,20G)

GREGE,TRIM4#

 1
71875B - COVER, RECLINING ADJUSTER INSIDE, RH
71875-06370

ZZE142..18G..IDN;ZRE143,ZZE141..(16E,20V)..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18J,20G,LIMO)..(IDN,PHL,TH)

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-06320E0

ZZE142..18G..IDN;ZZE142..(18E,18J)..(IDN,TH);ZRE143,ZZE141..(16V,20V)..PHL;ZRE143,ZZE141..RHD..4FC..(16E,16G,20G)

GREGE,TRIM4#

 1
71876A - COVER, RECLINING ADJUSTER INSIDE, LH
71876-06400

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-02D00E0

ZZE14#..(16E,18J)..(IDN,MA)

GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020E0

ZZE141..RHD..(16E,16G);ZZE14#..(16V,18E,18G,18J,18V)..(IDN,MA,PHL,TH)

W(LOCK),GREGE,TRIM4#

 2
71931-47010E4

ZZE141..RHD..(16E,16G);ZZE14#..(16V,18E,18G,18J,18V)..(IDN,MA,PHL,TH)

W/O(LOCK),GREGE,TRIM4#

 2
71931-02130E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

W/O(LOCK),GREGE,TRIM4#

 2
71930-02370E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-44020E0

ZZE141..RHD..(16E,16G);ZZE14#..(16V,18E,18G,18J,18V)..(IDN,MA,PHL,TH)

W(LOCK),GREGE,TRIM4#

 2
71931-47010E4

ZZE141..RHD..(16E,16G);ZZE14#..(16V,18E,18G,18J,18V)..(IDN,MA,PHL,TH)

W/O(LOCK),GREGE,TRIM4#

 2
71931-02130E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

W/O(LOCK),GREGE,TRIM4#

 2
71930-02370E0

ZZE141..RHD..4FC..(16E,16G);ZRE143,ZZE14#..(16V,18E,18G,18J,20G,20V)..(IDN,MA,PHL,TH)

W(LOCK)&W(BUTTON),GREGE,TRIM4#

 2
72137 - COVER, SEAT TRACK, OUTER RH
72137-02170

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-02170

ZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)

 1
Common parts
90119-10921
90119-T0001
90167-40048
90167-T0019
90168-50078
90389-10041
90468-18008
91622-B1018
93530-54010
93560-54012
Linked diagrams
7104
8202
8401
