ZZE141R-GEMRKT (2008)

Toyota Corolla/Altis

Production Nov 2008 - Aug 2010
Engine 3ZZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 9 OF12(0811- )HTWCF ; (0811- )ZRE143,ZZE14#..4FC..20E,20G,20V,GLI,XLI ; (1007- )

Click highlighted areas on diagram

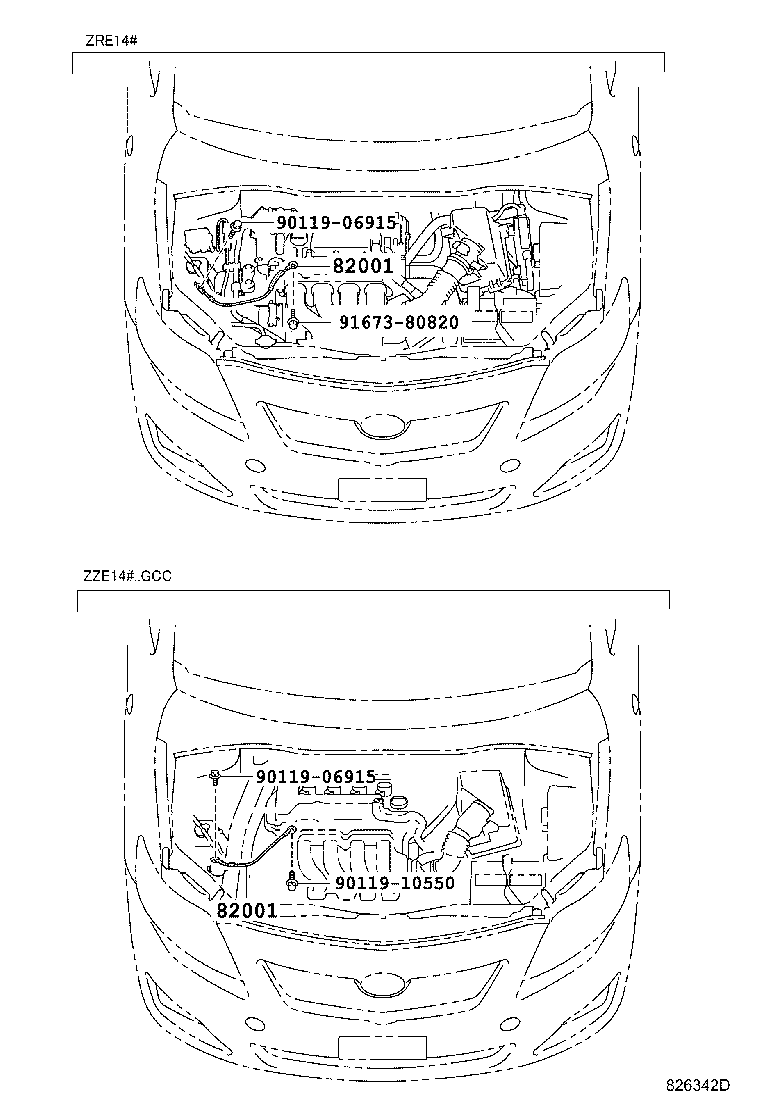

CABLE BOND

diagram 82001 82001 9011906915 9011906915 9011910550 9167380820
Part # Description Qty Price
Common parts
90119-06915
90119-10550
91673-80820
