ZWE211R-GEXVBE (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

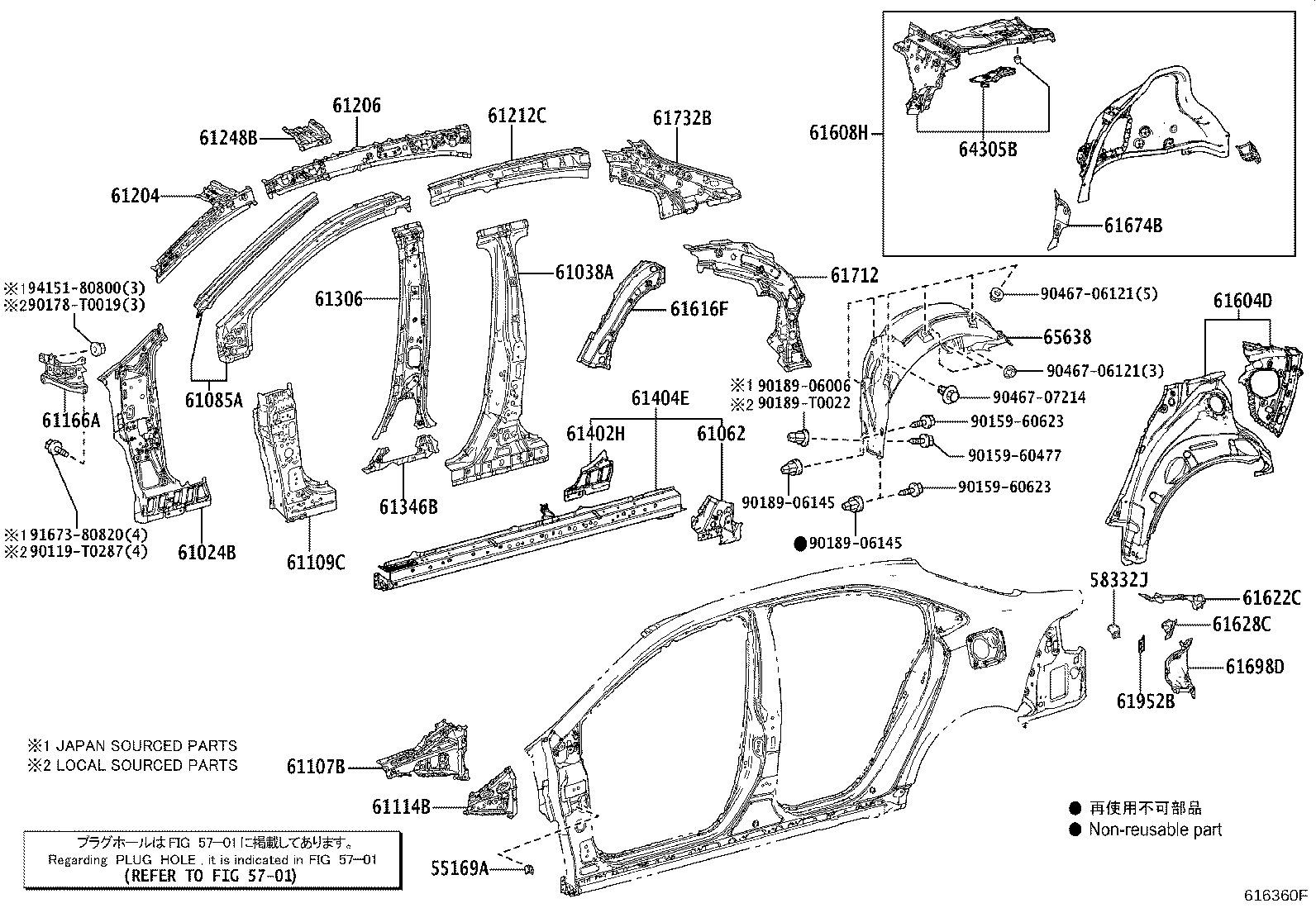

ILLUST NO. 2 OF 3(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA

Click highlighted areas on diagram

INNER PANEL, LH

diagram 55169A 5701 58332J 61024B 61038A 61062 61085A 61107B 61109C 61114B 61166A 61204 61206 61212C 61248B 61306 61346B 61402H 61404E 61604D 61608H 61616F 61622C 61628C 61674B 61698D 61712 61732B 61952B 64305B 65638 90119T0287 9015960477 9015960623 9015960623 90178T0019 9018906006 9018906145 9018906145 90189T0022 9046706121 9046706121 9046707214 9167380820 9415180800
Part # Description Qty Price
55169A - BRACKET, FRONT FENDER MOUNTING, LH
53879-02170

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
58332J - BRACKET, LUGGAGE COMPARTMENT TRIM, NO.2
58332-02170

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-02370

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-02290

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61062 - REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH
61062-02130

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61085A - RAIL SUB-ASSY, NO.3 UPPER OUTER, LH
61085-02900

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
61107-02070

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH
61109-02280

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61114B - PANEL, SIDE, OUTER NO.2 LH
61114-02060

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61166A - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH
61166-02040

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH
61204-02160

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH
61206-02050

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61212C - RAIL, ROOF SIDE, LH
61212-02240

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH
61248-02110

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH
61306-02220

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61346B - PILLAR, CENTER BODY, INNER LOWER LH
61346-02090

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61402H - REINFORCEMENT SUB-ASSY, ROCKER PANEL, LH
61402-02110

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-02909

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH
61606-02280

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH
61608-02971

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61616F - REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH
61616-02200

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61622C - TROUGH, LUGGAGE COMPARTMENT OPENING, LH
61622-02310

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61628C - REINFORCEMENT, QUARTER INNER PANEL, LH
61628-02110

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61674B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH
61674-02170

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61698D - HOUSING, QUARTER PANEL END, LH
61698-02190

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-02200

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-02380

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61952B - BRACKET, SIDE TRIM, LH
61952-02100

ZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH

 1
64305B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH
64305-02300

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
65638 - LINER, REAR WHEEL HOUSE, LH
65638-02260

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
Common parts
90119-T0287
90159-60477
90159-60623
90178-T0019
90189-06006
90189-06145
90189-T0022
90467-06121
90467-07214
91673-80820
94151-80800
Linked diagrams
5701

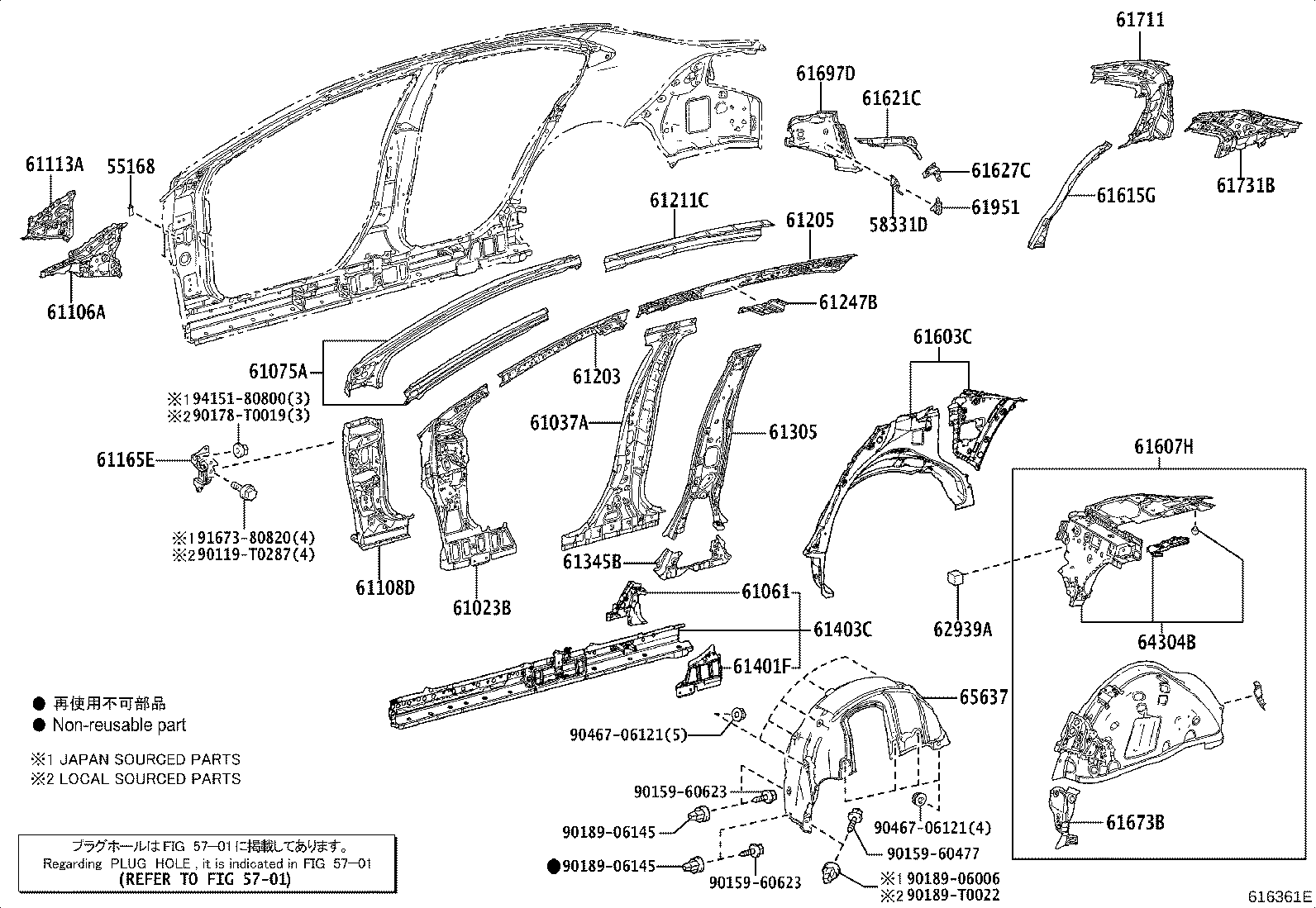

ILLUST NO. 3 OF 3(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA

Click highlighted areas on diagram

INNER PANEL, RH

diagram 55168 5701 58331D 61023B 61037A 61061 61075A 61106A 61108D 61113A 61165E 61203 61205 61211C 61247B 61305 61345B 61401F 61403C 61603C 61607H 61615G 61621C 61627C 61673B 61697D 61711 61731B 61951 62939A 64304B 65637 90119T0287 9015960477 9015960623 9015960623 90178T0019 9018906006 9018906145 9018906145 90189T0022 9046706121 9046706121 9167380820 9415180800
Part # Description Qty Price
55168 - BRACKET, FRONT FENDER MOUNTING, RH
53879-02170

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
58331D - BRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58331-02210

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-02390

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-02290

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61061 - REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH
61061-02140

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61075A - RAIL SUB-ASSY, NO.3 UPPER OUTER, RH
61075-02900

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61106-02070

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH
61108-02280

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61113A - PANEL, SIDE, OUTER NO.2 RH
61113-02050

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61165E - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH
61165-02040

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH
61203-02160

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH
61205-02050

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61211C - RAIL, ROOF SIDE, RH
61211-02240

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH
61247-02250

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61305 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61305-02220

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61345B - PILLAR, CENTER BODY, INNER LOWER RH
61345-02080

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61401F - REINFORCEMENT SUB-ASSY, ROCKER PANEL, RH
61401-02110

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-02907

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61603C - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61605-02240

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61607-02970

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61615G - REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH
61615-02190

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61621C - TROUGH, LUGGAGE COMPARTMENT OPENING, RH
61621-02310

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61627C - REINFORCEMENT, QUARTER INNER PANEL, RH
61627-02130

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61673B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
61673-02180

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61697D - HOUSING, QUARTER PANEL END, RH
61697-02190

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-02200

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-02380

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
61951 - BRACKET, SIDE TRIM, RH
61951-02140

ZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH

 1
62939A - SILENCER, QUARTER VENT
62939-06070

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

(L)

 1
62939-33020

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

(J)

 1
64304B - REINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
64304-02300

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
65637 - LINER, REAR WHEEL HOUSE, RH
65637-02260

ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
Common parts
90119-T0287
90159-60477
90159-60623
90178-T0019
90189-06006
90189-06145
90189-T0022
90467-06121
91673-80820
94151-80800
Linked diagrams
5701
