Toyota Corolla/altis ZWE211 FRONT SEAT & SEAT TRACK

Manufacturers Home
Toyota
GR
COROLLA/ALTIS
ZWE211R-GEXVBD (2019)
7101 - FRONT SEAT & SEAT TRACK

ZWE211R-GEXVBD (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

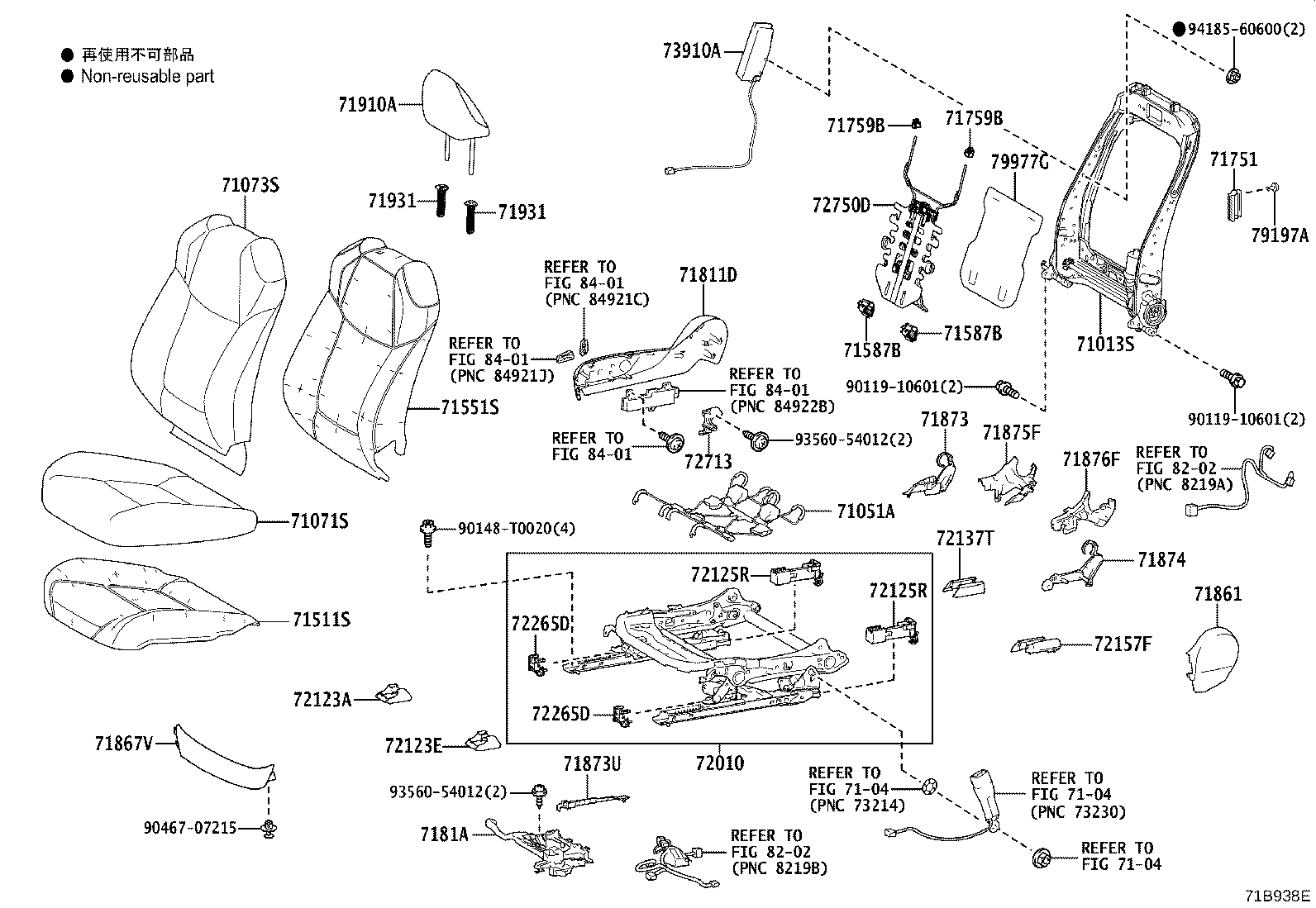

ILLUST NO. 1 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

PASSENGER SIDE,MANUAL SEAT

Part #	Description	Period	Qty
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-06560	ZWE211..G;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)	08/2019 - 12/2999	1
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-06120	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-06160	ZWE211..G;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)	08/2019 - 12/2999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0ZN00C0	ZWE211..E FROMAGE,TRIM0#	08/2019 - 12/2021	1
71072-0ZN50C3	ZWE211..G;ZWE211..GEN FROMAGE,TRIM0#	08/2019 - 12/2999	1
71072-0ZN00C1	ZWE211..E LT. GRAY,TRIM1#	08/2019 - 12/2021	1
71072-0ZN50C4	ZWE211..GEN,IDN;ZRE210,ZWE211..G..TH BLACK,TRIM2#	08/2019 - 12/2999	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0ZU90E1	ZWE211..E ORCHID BROWN,TRIM0#	08/2019 - 12/2021	1
71074-0ZV30E3	ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0#	08/2019 - 12/2999	1
71074-0ZU90B1	ZWE211..E;ZRE210..D..PHL GRAY,TRIM1#	08/2019 - 12/2021	1
71074-0ZV30C3	ZRE210,ZWE211..G..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL) BLACK,TRIM2#	08/2019 - 12/2999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-02300	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA)	08/2019 - 12/2999	1
71502-02300	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-02C20	ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH)	08/2019 - 12/2999	1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-F4030	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-F4030	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71751 - HANGER, SEAT COVER
71751-0K070	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP	04/2019 - 12/2999	2
71759B - HOOK, FRONT SEAT BACK
71759-0K060	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71759B - HOOK, FRONT SEAT BACK
71759-0K060	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-06620C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71812-06620C0	ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2#	08/2019 - 12/2999	1
71812-06620C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
7181B-F4020	ZWE211..G;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)	08/2019 - 12/2999	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-06370C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71862-06370C0	ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2#	08/2019 - 12/2999	1
71862-06370C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876-06550C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71876-06550C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71876-06550C0	ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2#	08/2019 - 12/2999	1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-06540C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71876-06540C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71876-06540C0	ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2#	08/2019 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-02T30B0	ZWE211..E;ZRE210..D..PHL GRAY,TRIM1#	08/2019 - 05/2020	2
71910-02T30E0	ZWE211..E ORCHID BROWN,TRIM0#	08/2019 - 05/2020	2
71910-02T50C1	ZRE210..V;ZRE210..TH;ZWE211..(G,N,V)..(GEN,IDN,MA,PHL,SGP,TH) BLACK,TRIM2#	08/2019 - 05/2020	2
71910-02T30E1	ZWE211..E ORCHID BROWN,TRIM0#	05/2020 - 12/2021	2
71910-02T30B1	ZWE211..E;ZRE210..D..PHL GRAY,TRIM1#	05/2020 - 12/2021	2
71910-02T50C3	ZRE210,ZWE211..G..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL) BLACK,TRIM2#	05/2020 - 12/2999	2
71910-02T50E2	ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0#	05/2020 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C1	ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71931-0K040C1	ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71930-0K050E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W/O(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
71930-0K050C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C1	ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71931-0K040C1	ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71930-0K050E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W/O(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
71930-0K050C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-06450	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA)	08/2019 - 12/2999	1
72020-06450	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-06130	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72123-06130	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72125R - COVER, SEAT TRACK, UPPER REAR NO.1
72125-06090	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72125-06100	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72125-06090	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72125R - COVER, SEAT TRACK, UPPER REAR NO.1
72125-06090	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72125-06100	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72125-06090	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH
72137-06150	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH
72157-06210	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-06150	ZWE211..G;ZWE211..GEN,IDN,PHL;ZRE21#..CVT..(E,V)..(GEN,MA,PHL)	08/2019 - 12/2999	1
72211-06150	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	08/2019 - 01/2022	2
72265D - COVER, SEAT TRACK UPPER RAIL
72265-06060	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72265-06040	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72265-06060	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72265D - COVER, SEAT TRACK UPPER RAIL
72265-06060	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72265-06040	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72265-06060	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-06140C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
72526-06140C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
72526-06140C0	ZWE211..G;ZWE211..GEN;ZRE21#..CVT..(E,G)..(MA,PHL) BLACK,TRIM0#,2#	08/2019 - 12/2999	1
72552B - COVER, RECLINING HINGE, LH
72551-06020C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
72551-06020C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
72551-06020C0	ZWE211..G;ZWE211..GEN;ZRE21#..CVT..(E,G)..(MA,PHL) BLACK,TRIM0#,2#	08/2019 - 12/2999	1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-02270	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
79197A - RIVET
79197-0K010	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP	04/2019 - 12/2999	2
82667D - HOLDER, CONNECTOR
82666-47630	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
Common parts
90119-10601
90148-T0020
93560-54012
94185-60600
Linked diagrams
7104

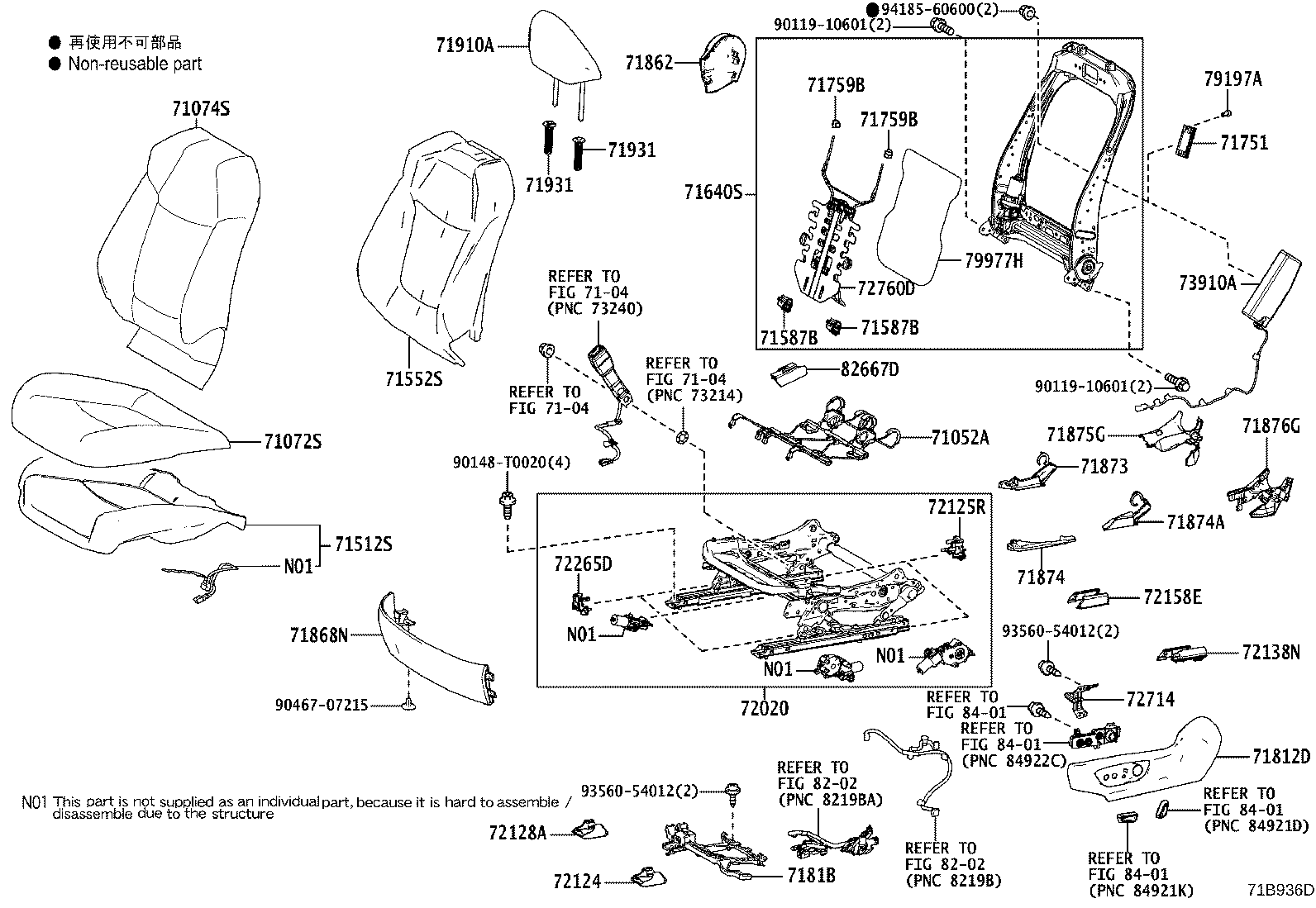

ILLUST NO. 1 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

PASSENGER SIDE,POWER SEAT

Part #	Description	Period	Qty
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-06120	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0ZN00C0	ZWE211..E FROMAGE,TRIM0#	08/2019 - 12/2021	1
71072-0ZN50C3	ZWE211..G;ZWE211..GEN FROMAGE,TRIM0#	08/2019 - 12/2999	1
71072-0ZN00C1	ZWE211..E LT. GRAY,TRIM1#	08/2019 - 12/2021	1
71072-0ZN50C4	ZWE211..GEN,IDN;ZRE210,ZWE211..G..TH BLACK,TRIM2#	08/2019 - 12/2999	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0ZU90E1	ZWE211..E ORCHID BROWN,TRIM0#	08/2019 - 12/2021	1
71074-0ZV30E3	ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0#	08/2019 - 12/2999	1
71074-0ZU90B1	ZWE211..E;ZRE210..D..PHL GRAY,TRIM1#	08/2019 - 12/2021	1
71074-0ZV30C3	ZRE210,ZWE211..G..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL) BLACK,TRIM2#	08/2019 - 12/2999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-02300	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA)	08/2019 - 12/2999	1
71502-02300	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-02C20	ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH)	08/2019 - 12/2999	1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-F4030	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-F4030	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71751 - HANGER, SEAT COVER
71751-0K070	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP	04/2019 - 12/2999	2
71759B - HOOK, FRONT SEAT BACK
71759-0K060	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71759B - HOOK, FRONT SEAT BACK
71759-0K060	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-06620C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71812-06620C0	ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2#	08/2019 - 12/2999	1
71812-06620C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
7181B-F4020	ZWE211..G;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(D,E,G)..(GEN,PHL,SGP,TH)	08/2019 - 12/2999	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-06370C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71862-06370C0	ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2#	08/2019 - 12/2999	1
71862-06370C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06430	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
71873-06430	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA)	08/2019 - 12/2999	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71873-06620	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
71873-06620	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA)	08/2019 - 12/2999	1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876-06550C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71876-06550C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71876-06550C0	ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2#	08/2019 - 12/2999	1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-06540C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71876-06540C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71876-06540C0	ZWE211..G;ZWE211..GEN;ZRE211..E..MA BLACK,TRIM0#,2#	08/2019 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-02T30B0	ZWE211..E;ZRE210..D..PHL GRAY,TRIM1#	08/2019 - 05/2020	2
71910-02T30E0	ZWE211..E ORCHID BROWN,TRIM0#	08/2019 - 05/2020	2
71910-02T50C1	ZRE210..V;ZRE210..TH;ZWE211..(G,N,V)..(GEN,IDN,MA,PHL,SGP,TH) BLACK,TRIM2#	08/2019 - 05/2020	2
71910-02T30E1	ZWE211..E ORCHID BROWN,TRIM0#	05/2020 - 12/2021	2
71910-02T30B1	ZWE211..E;ZRE210..D..PHL GRAY,TRIM1#	05/2020 - 12/2021	2
71910-02T50C3	ZRE210,ZWE211..G..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL) BLACK,TRIM2#	05/2020 - 12/2999	2
71910-02T50E2	ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0#	05/2020 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C1	ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71931-0K040C1	ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71930-0K050E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W/O(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
71930-0K050C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C1	ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71931-0K040C1	ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71930-0K050E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W/O(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
71930-0K050C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-06450	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA)	08/2019 - 12/2999	1
72020-06450	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72123-06130	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72125R - COVER, SEAT TRACK, UPPER REAR NO.1
72125-06090	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72125-06100	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72125-06090	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72123-06130	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH
72137-06150	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH
72158-06210	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72265D - COVER, SEAT TRACK UPPER RAIL
72265-06060	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72265-06040	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72265-06060	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH
72750-33140	ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,TAIW)	04/2019 - 12/2999	1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-02270	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
79197A - RIVET
79197-0K010	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP	04/2019 - 12/2999	2
82667D - HOLDER, CONNECTOR
82666-47630	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	1
Common parts
90119-10601
90148-T0020
90467-07215
93560-54012
94185-60600
Linked diagrams
7104
8202
8401

ILLUST NO. 2 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

DRIVER SIDE,MANUAL SEAT

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-06580	ZRE211..MA,TH;ZRE210..E..GEN;ZWE211..RHD..(G,N,V)	08/2019 - 12/2020	1
71013-06620	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	08/2019 - 01/2022	1
71013-06581	ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(E,N,V)..(GEN,IDN)	01/2021 - 12/2999	1
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-06120	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-06160	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	08/2019 - 01/2022	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0ZX70C3	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,FROMAGE,TRIM0#	08/2019 - 01/2021	1
71071-0ZX20C0	ZWE211..E FROMAGE,TRIM0#	08/2019 - 12/2021	1
71071-0ZX70C4	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM2#	08/2019 - 01/2022	1
71071-0ZX20C1	ZWE211..E LT. GRAY,TRIM1#	08/2019 - 12/2021	1
71071-0ZX80C4	ZWE211..G;ZWE211..GEN,IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71071-0ZX80C3	ZWE211..G;ZWE211..GEN FROMAGE,TRIM0#	08/2019 - 12/2999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-02700B1	ZWE211..E GRAY,TRIM1#	08/2019 - 12/2021	1
71073-0ZW10E3	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,ORCHID BROWN,TRIM0#	08/2019 - 01/2021	1
71027-02700E1	ZWE211..E ORCHID BROWN,TRIM0#	08/2019 - 12/2021	1
71073-0ZW10C3	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM2#	08/2019 - 01/2022	1
71073-0ZW30C3	ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL) BLACK,TRIM2#	08/2019 - 12/2999	1
71073-0ZW30E3	ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0#	08/2019 - 12/2999	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-02D40	ZWE211..E	08/2019 - 12/2021	1
71511-02D50	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN	08/2019 - 12/2999	1
71511-02D40	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	08/2019 - 01/2022	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02E30	ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH)	08/2019 - 12/2999	1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-F4030	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-F4030	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71751 - HANGER, SEAT COVER
71751-0K070	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP	04/2019 - 12/2999	2
71759B - HOOK, FRONT SEAT BACK
71759-0K060	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71759B - HOOK, FRONT SEAT BACK
71759-0K060	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-06620C0	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM0#,2#	08/2019 - 01/2022	1
71811-06620C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71811-06610C0	ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
7181A-F4020	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	08/2019 - 01/2022	1
7181A-06030	ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(E,N,V)..(GEN,IDN)	08/2019 - 12/2999	1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-06010C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71848-06010C0	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM0#,2#	08/2019 - 01/2022	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06350C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71861-06350C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06430	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
71873-06430	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA)	08/2019 - 12/2999	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71873-06620	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
71873-06620	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA)	08/2019 - 12/2999	1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-06410C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71875-06410C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71875-06420C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71875-06420C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-02T30B0	ZWE211..E;ZRE210..D..PHL GRAY,TRIM1#	08/2019 - 05/2020	2
71910-02T30E0	ZWE211..E ORCHID BROWN,TRIM0#	08/2019 - 05/2020	2
71910-02T50C1	ZRE210..V;ZRE210..TH;ZWE211..(G,N,V)..(GEN,IDN,MA,PHL,SGP,TH) BLACK,TRIM2#	08/2019 - 05/2020	2
71910-02T30E1	ZWE211..E ORCHID BROWN,TRIM0#	05/2020 - 12/2021	2
71910-02T30B1	ZWE211..E;ZRE210..D..PHL GRAY,TRIM1#	05/2020 - 12/2021	2
71910-02T50C3	ZRE210,ZWE211..G..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL) BLACK,TRIM2#	05/2020 - 12/2999	2
71910-02T50E2	ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0#	05/2020 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C1	ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71931-0K040C1	ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71930-0K050E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W/O(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
71930-0K050C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C1	ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71931-0K040C1	ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71930-0K050E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W/O(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
71930-0K050C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-06461	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	05/2020 - 01/2022	1
72010-06461	ZWE211..E	05/2020 - 12/2021	1
72010-06460	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	08/2019 - 05/2020	1
72010-06460	ZWE211..E;ZRE211..IDN;ZRE210..RHD..(D,G)	08/2019 - 05/2020	1
72010-06440	ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(E,N,V)..(GEN,IDN)	08/2019 - 12/2999	1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-06130	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72123-06130	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72125R - COVER, SEAT TRACK, UPPER REAR NO.1
72125-06090	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72125-06100	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72125-06090	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72125R - COVER, SEAT TRACK, UPPER REAR NO.1
72125-06090	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72125-06100	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72125-06090	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH
72137-06150	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH
72157-06210	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-06150	ZWE211..G;ZWE211..GEN,IDN,PHL;ZRE21#..CVT..(E,V)..(GEN,MA,PHL)	08/2019 - 12/2999	1
72211-06150	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	08/2019 - 01/2022	2
72265D - COVER, SEAT TRACK UPPER RAIL
72265-06060	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72265-06040	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72265-06060	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72265D - COVER, SEAT TRACK UPPER RAIL
72265-06060	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72265-06040	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72265-06060	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72494 - HANDLE, VERTICAL ADJUSTING, RH
72494-06090C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
72494-06090C0	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM0#,2#	08/2019 - 01/2022	1
72498 - COVER, VERTICAL ADJUSTER BRACKET
72498-06020	ZWE211..E	08/2019 - 12/2021	1
72498-06020	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	08/2019 - 01/2022	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-06140C0	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM0#,2#	08/2019 - 01/2022	1
72525-06140C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
72551B - COVER, RECLINING HINGE, RH
72551-06020C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
72551-06020C0	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM0#,2#	08/2019 - 01/2022	1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-02270	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
79197A - RIVET
79197-0K010	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP	04/2019 - 12/2999	2
Common parts
90119-10601
90148-T0020
93560-54012
94185-60600
Linked diagrams
7104

ILLUST NO. 2 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Click highlighted areas on diagram

DRIVER SIDE,POWER SEAT

Part #	Description	Period	Qty
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-06580	ZRE211..MA,TH;ZRE210..E..GEN;ZWE211..RHD..(G,N,V)	08/2019 - 12/2020	1
71013-06620	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	08/2019 - 01/2022	1
71013-06581	ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(E,N,V)..(GEN,IDN)	01/2021 - 12/2999	1
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-06120	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0ZX70C3	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,FROMAGE,TRIM0#	08/2019 - 01/2021	1
71071-0ZX20C0	ZWE211..E FROMAGE,TRIM0#	08/2019 - 12/2021	1
71071-0ZX70C4	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM2#	08/2019 - 01/2022	1
71071-0ZX20C1	ZWE211..E LT. GRAY,TRIM1#	08/2019 - 12/2021	1
71071-0ZX80C4	ZWE211..G;ZWE211..GEN,IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71071-0ZX80C3	ZWE211..G;ZWE211..GEN FROMAGE,TRIM0#	08/2019 - 12/2999	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71027-02700B1	ZWE211..E GRAY,TRIM1#	08/2019 - 12/2021	1
71073-0ZW10E3	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,ORCHID BROWN,TRIM0#	08/2019 - 01/2021	1
71027-02700E1	ZWE211..E ORCHID BROWN,TRIM0#	08/2019 - 12/2021	1
71073-0ZW10C3	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM2#	08/2019 - 01/2022	1
71073-0ZW30C3	ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL) BLACK,TRIM2#	08/2019 - 12/2999	1
71073-0ZW30E3	ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0#	08/2019 - 12/2999	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-02D40	ZWE211..E	08/2019 - 12/2021	1
71511-02D50	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN	08/2019 - 12/2999	1
71511-02D40	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	08/2019 - 01/2022	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02E30	ZWE211..G;ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH)	08/2019 - 12/2999	1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-F4030	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-F4030	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71751 - HANGER, SEAT COVER
71751-0K070	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP	04/2019 - 12/2999	2
71759B - HOOK, FRONT SEAT BACK
71759-0K060	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71759B - HOOK, FRONT SEAT BACK
71759-0K060	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	4
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-06620C0	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM0#,2#	08/2019 - 01/2022	1
71811-06620C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71811-06610C0	ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH
7181A-F4020	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	08/2019 - 01/2022	1
7181A-06030	ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(E,N,V)..(GEN,IDN)	08/2019 - 12/2999	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-06350C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71861-06350C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71867V - SHIELD, FRONT SEAT CUSHION, FRONT RH
71867-06190C0	ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06430	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
71873-06430	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA)	08/2019 - 12/2999	1
71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06550	ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(E,N,V)..(GEN,IDN)	08/2019 - 12/2999	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71873-06620	ZWE211..E;ZWE211..MA	08/2019 - 12/2021	1
71873-06620	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA)	08/2019 - 12/2999	1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-06410C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71875-06410C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71875-06420C0	ZWE211..E BLACK,TRIM0#,1#	08/2019 - 12/2021	1
71875-06420C0	ZRE211,ZWE211..IDN BLACK,TRIM2#	08/2019 - 12/2999	1
71910A - HEADREST ASSY, FRONT SEAT
71910-02T30B0	ZWE211..E;ZRE210..D..PHL GRAY,TRIM1#	08/2019 - 05/2020	2
71910-02T30E0	ZWE211..E ORCHID BROWN,TRIM0#	08/2019 - 05/2020	2
71910-02T50C1	ZRE210..V;ZRE210..TH;ZWE211..(G,N,V)..(GEN,IDN,MA,PHL,SGP,TH) BLACK,TRIM2#	08/2019 - 05/2020	2
71910-02T30E1	ZWE211..E ORCHID BROWN,TRIM0#	05/2020 - 12/2021	2
71910-02T30B1	ZWE211..E;ZRE210..D..PHL GRAY,TRIM1#	05/2020 - 12/2021	2
71910-02T50C3	ZRE210,ZWE211..G..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL) BLACK,TRIM2#	05/2020 - 12/2999	2
71910-02T50E2	ZWE211..G;ZRE210,ZWE211..(N,V)..(GEN,PHL) ORCHID BROWN,TRIM0#	05/2020 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C1	ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71931-0K040C1	ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71930-0K050E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W/O(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
71930-0K050C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-0K050C1	ZWE211..E;ZRE210..D..PHL W(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71931-0K040C1	ZWE211..E;ZRE210..D..PHL W/O(LOCK),BLACK,TRIM1#	08/2019 - 12/2021	2
71930-0K050E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040E3	ZWE211..G;ZWE211..GEN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP) W/O(LOCK),ORCHID BROWN,TRIM0#	08/2019 - 12/2999	2
71931-0K040C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W/O(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
71930-0K050C1	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..(G,N,V)..(GEN,IDN,PHL) W(LOCK),BLACK,TRIM2#	08/2019 - 12/2999	2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-06461	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	05/2020 - 01/2022	1
72010-06461	ZWE211..E	05/2020 - 12/2021	1
72010-06460	ZWE211..G LOW GRADE PACKAGE&FRONT SEAT-*DRP:MANUAL SEAT	08/2019 - 05/2020	1
72010-06460	ZWE211..E;ZRE211..IDN;ZRE210..RHD..(D,G)	08/2019 - 05/2020	1
72010-06440	ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(E,N,V)..(GEN,IDN)	08/2019 - 12/2999	1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-06130	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72123-06130	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72125R - COVER, SEAT TRACK, UPPER REAR NO.1
72125-06090	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72125-06100	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72125-06090	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72125R - COVER, SEAT TRACK, UPPER REAR NO.1
72125-06090	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72125-06100	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72125-06090	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH
72137-06150	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH
72157-06210	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
72265D - COVER, SEAT TRACK UPPER RAIL
72265-06060	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72265-06040	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72265-06060	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72265D - COVER, SEAT TRACK UPPER RAIL
72265-06060	ZWE211..E;ZWE211..MA FOR LH SEAT	08/2019 - 12/2021	2
72265-06040	ZWE211..G;ZRE21#..RHD..E;ZWE211..GEN,IDN FOR RH SEAT	08/2019 - 12/2999	2
72265-06060	ZWE211..G;ZRE210..RHD;ZWE211..GEN,IDN;ZRE211..(E,G)..(IDN,MA) FOR LH SEAT	08/2019 - 12/2999	2
72713 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH
72713-06020	ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(E,N,V)..(GEN,IDN)	08/2019 - 12/2999	1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-02270	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
79197A - RIVET
79197-0K010	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP	04/2019 - 12/2999	2
79977G - FELT, FRONT SEAT BACK, RH
79977-06040	ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(E,N,V)..(GEN,IDN)	08/2019 - 12/2999	1
Common parts
90119-10601
90148-T0020
90467-07215
93560-54012
94185-60600
Linked diagrams
7104
8202
8401

ZWE211R-GEXVBD (2019)

ILLUST NO. 1 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

ILLUST NO. 1 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

ILLUST NO. 2 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

ILLUST NO. 2 OF 2(1908- )ZWE211..E,G,V..TH;ZRE21#..RHD..D,E,G;ZWE211..GEN,IDN,MA,SGP

Part Price Details
