ZWE211R-GEXVBD (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA

Click highlighted areas on diagram

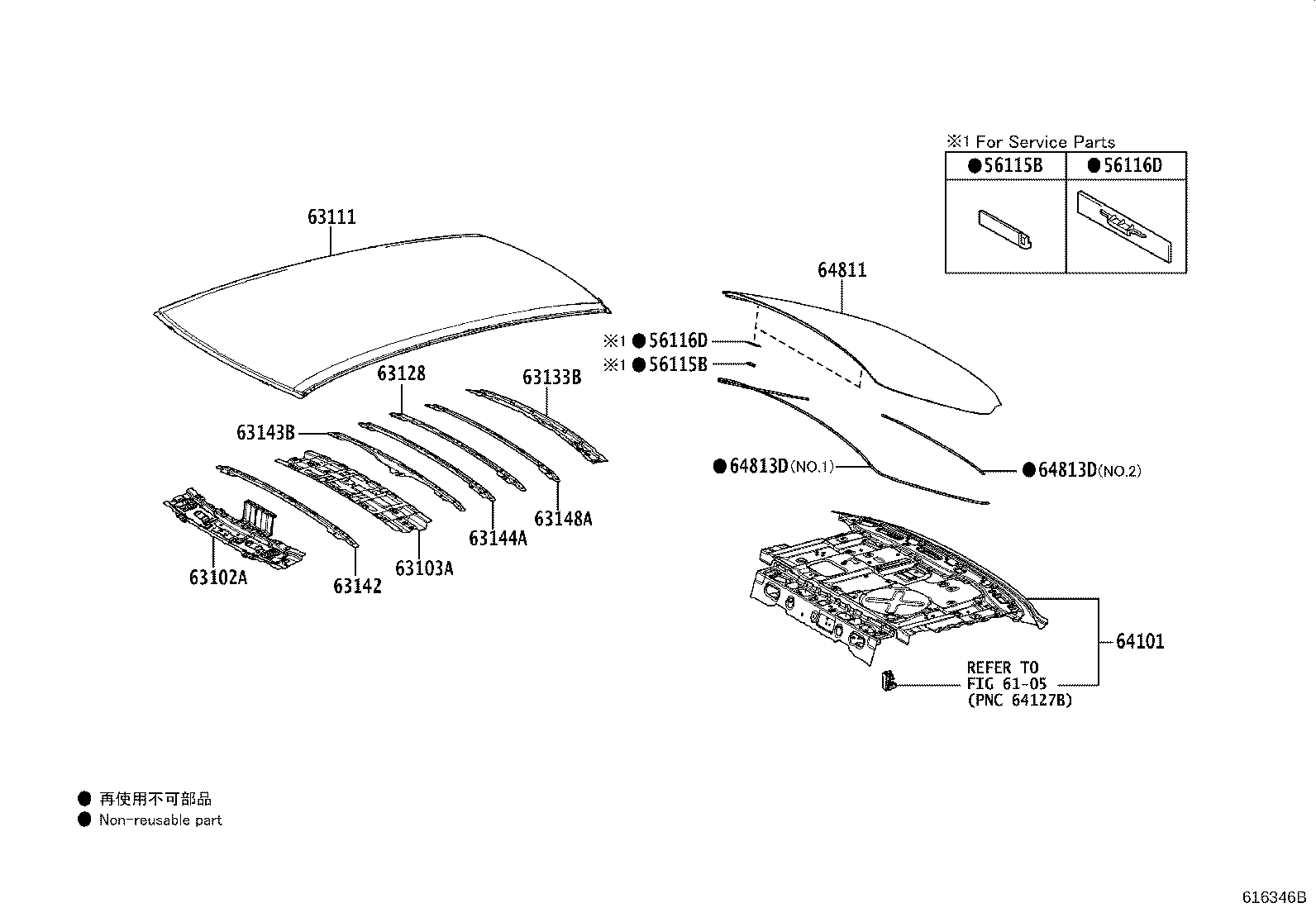

diagram 56115B 56115B 56116D 56116D 6105 63102A 63103A 63111 63128 63133B 63142 63143B 63144A 63148A 64101 64811 64813D 64813D
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30120

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30120

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-02908

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-02150

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
63111 - PANEL, ROOF
63111-02750

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
63128 - REINFORCEMENT, ROOF PANEL, NO.6
63128-02090

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
63133B - FRAME, BACK WINDOW
63133-02230

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-02190

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-02250

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-02260

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-02140

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-02620

ZWE211..E;ZRE210..D..PHL

 1
64101-02610

ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)

 1
64101-02620

ZWE211..G

LOW GRADE PACKAGE

 1
64811 - GLASS, BACK WINDOW
64801-02360

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
64813-02270

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

NO.1:REFER ILLUST.

 1
64813-02250

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

NO.2:REFER ILLUST.

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
64813-02270

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

NO.1:REFER ILLUST.

 1
64813-02250

ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

NO.2:REFER ILLUST.

 1
Linked diagrams
6105
