ZWE211R-GEXNB (2019)
Toyota Corolla/Altis

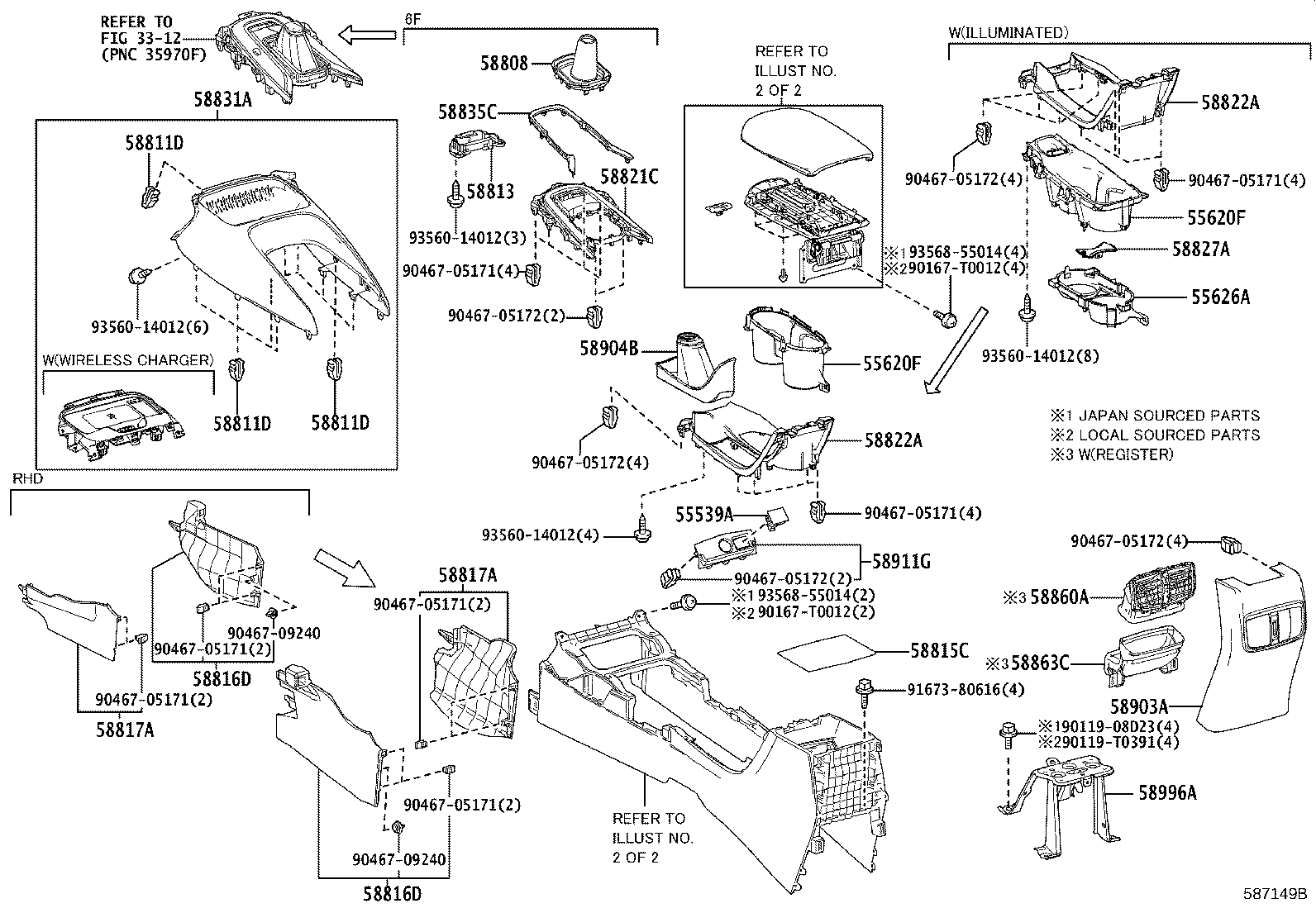

ILLUST NO. 1 OF 2(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-12260C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 55539-12260C0 |
ZRE210,ZWE211..(G,N,V)..(GEN,PHL) BLACK,TRIM0#,2# |
1 | ||
| 55620F - HOLDER ASSY, CONSOLE BOX CUP | ||||
| 55620-02590 |
ZWE211..E |
1 | ||
| 55620-02590 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 55620-02590 |
ZRE211,ZWE211..(G,N)..(GEN,IDN) |
1 | ||
| 55620F - HOLDER ASSY, CONSOLE BOX CUP | ||||
| 55620-02590 |
ZWE211..E |
1 | ||
| 55620-02590 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 55620-02590 |
ZRE211,ZWE211..(G,N)..(GEN,IDN) |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05171 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
10 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05171 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
10 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-05171 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
10 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-02450 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 58816D - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02410C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 58816-02410C0 |
ZWE211..GEN;ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH) BLACK,TRIM0#,2# |
1 | ||
| 58816D - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02410C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 58816-02410C0 |
ZWE211..GEN;ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH) BLACK,TRIM0#,2# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02420C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 58817-02420C0 |
ZWE211..GEN;ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH) BLACK,TRIM0#,2# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02420C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 58817-02420C0 |
ZWE211..GEN;ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH) BLACK,TRIM0#,2# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-02330 |
ZRE211,ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 58822-02350 |
ZWE211..E |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-02330 |
ZRE211,ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 58822-02350 |
ZWE211..E |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-02370C1 |
ZWE211..E;ZRE210..D..PHL BLACK/ LT.GRAY,TRIM1# |
1 | ||
| 58831-02370C2 |
ZWE211..G LOW GRADE PACKAGE,BLACK/ BLACK,TRIM2# |
1 | ||
| 58831-02370C0 |
ZWE211..G LOW GRADE PACKAGE,BLACK/ FROMAGE,TRIM0# |
1 | ||
| 58831-02370C0 |
ZRE211..E..MA;ZWE211..GEN,PHL,SGP;ZRE210..CVT..(GEN,PHL,SGP,TH) BLACK/ FROMAGE,TRIM0# |
1 | ||
| 58831-02370C2 |
ZWE211..GEN,IDN,PHL,SGP;ZRE211..(E,G)..(IDN,MA);ZRE210..CVT..(GEN,PHL,SGP,TH) BLACK/ BLACK,TRIM2# |
1 | ||
| 58860A - REGISTER ASSY, CONSOLE BOX | ||||
| 58860-02030 |
ZWE211..E;ZWE211..MA |
1 | ||
| 58860-02030 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP,TH) |
1 | ||
| 58863C - DUCT, CONSOLE BOX, NO.3 | ||||
| 58863-02010 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,MA,PHL,SGP,TH) |
1 | ||
| 58863-02010 |
ZWE211..E;ZWE211..MA |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-02100C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 58903-02100C0 |
ZWE211..GEN,PHL;ZWE211..(G,V)..TH;ZRE21#..CVT..(E,G,V)..(MA,PHL,TH) BLACK,TRIM0#,2# |
1 | ||
| 58903-02100C0 |
ZRE210,ZWE211..(D,E,G,V)..(GEN,SGP) BLACK,TRIM0#,1#,2# |
1 | ||
| 58911G - PANEL, BOX, NO.1 | ||||
| 58911-02590C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 58911-02590C0 |
ZRE210,ZWE211..(D,E,G,V)..(GEN,SGP) BLACK,TRIM0#,1#,2# |
1 | ||
| 58911-02590C0 |
ZWE211..GEN;ZRE211..E..MA;ZRE210,ZWE211..(G,V)..TH BLACK,TRIM0#,2# |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-02210 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| Common parts | ||||
| 90119-08D23 | ||||
| 90119-T0391 | ||||
| 90167-T0012 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-09240 | ||||
| 91673-80616 | ||||
| 93560-14012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3312 | ||||

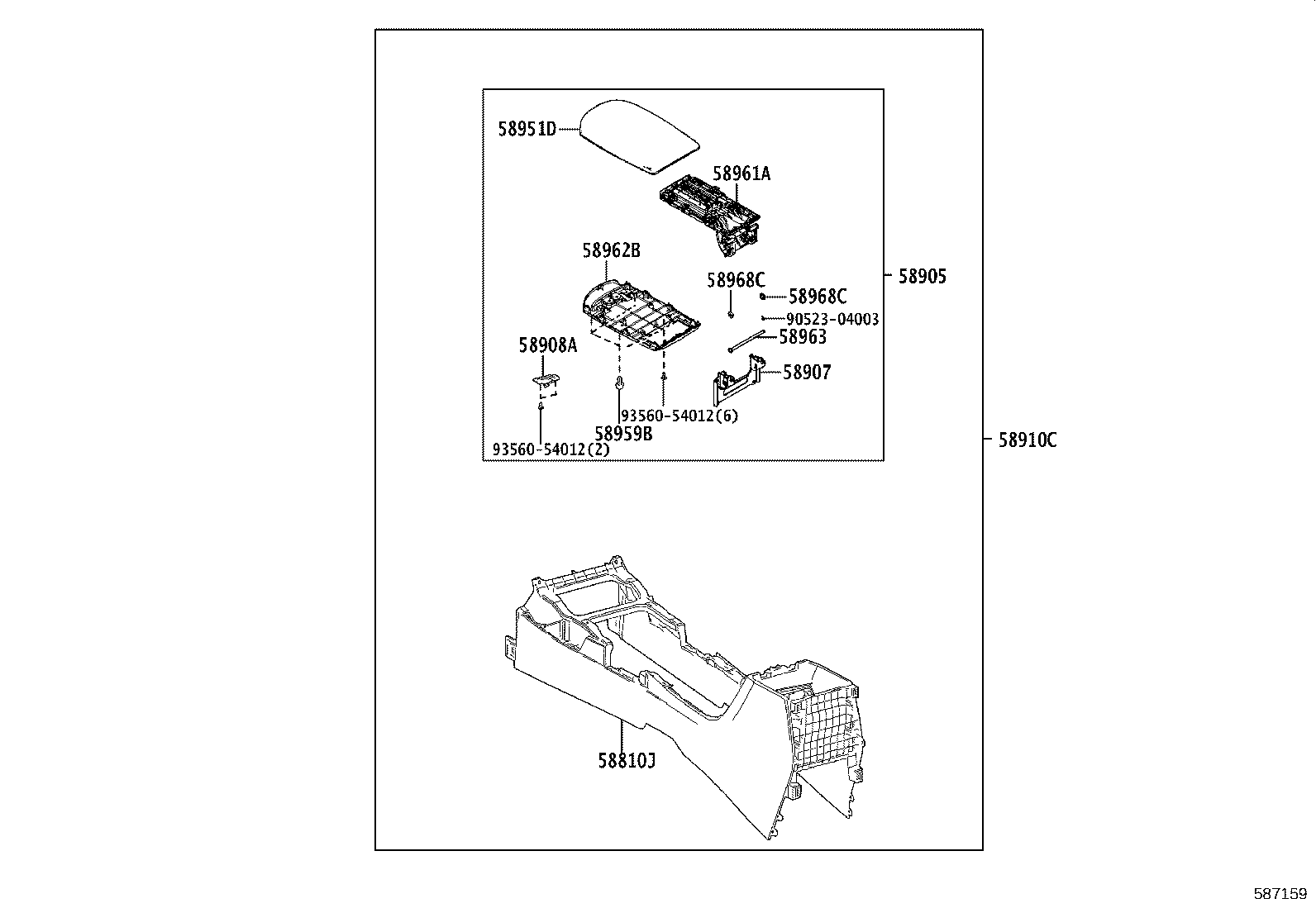

ILLUST NO. 2 OF 2(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-02040C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 58810-02040C0 |
ZRE210,ZWE211..(D,E,G,V)..(GEN,SGP) BLACK,TRIM0#,1#,2# |
1 | ||
| 58810-02040C0 |
ZWE211..GEN,PHL;ZWE211..(G,V)..TH;ZRE21#..CVT..(PHL,TH) BLACK,TRIM0#,2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-02D80B0 |
ZWE211..E NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 58905-02E30B0 |
MZEA12,ZWE211..D NEUTRAL WARM GRAY,TRIM10 |
1 | ||
| 58905-02D80E0 |
ZWE211..E ORCHID BROWN,TRIM0# |
1 | ||
| 58905-02E30C0 |
MZEA12,ZWE211..D BLACK,TRIM00,10 |
1 | ||
| 58905-02E30E0 |
MZEA12,ZWE211..D ORCHID BROWN,TRIM00 |
1 | ||
| 58905-02E00C0 |
ZRE211,ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,PHL,SGP) BLACK/ SHELL,TRIM00,2# |
1 | ||
| 58905-02E00E0 |
ZRE211,ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,PHL,SGP) ORCHID BROWN/ SHELL,TRIM00 |
1 | ||
| 58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58907-02350 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-33030 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-02860C2 |
ZWE211..E BLACK/ ORCHID BROWN,TRIM0# |
1 | ||
| 58910-02860C1 |
ZWE211..E BLACK/ NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 58910-02880C0 |
ZRE211,ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,PHL,SGP) BLACK/ BLACK,TRIM00,2# |
1 | ||
| 58910-02880C1 |
ZRE211,ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,PHL,SGP) BLACK/ ORCHID BROWN,TRIM00 |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-02D90E0 |
ZWE211..E ORCHID BROWN,TRIM0# |
1 | ||
| 58951-02D90B0 |
ZWE211..E NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 58951-02E40C0 |
ZRE211,ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,PHL,SGP) BLACK/ SHELL,TRIM00,2# |
1 | ||
| 58951-02E40E0 |
ZRE211,ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,PHL,SGP) ORCHID BROWN/ SHELL,TRIM00 |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
4 | ||
| 58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE | ||||
| 58961-02310 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 58962B - HINGE, CONSOLE COMPARTMENT DOOR FEMALE | ||||
| 58962-02290 |
ZWE211..E;ZRE210..D..PHL |
1 | ||
| 58962-02300 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(E,G,V)..(GEN,MA,PHL,TH) |
1 | ||
| 58963 - SHAFT, CONSOLE COMPARTMENT DOOR HINGE | ||||
| 58963-02240 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 58968C - SHIM, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58968-33010 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
2 | ||
| 58968C - SHIM, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58968-33010 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
2 | ||
| Common parts | ||||
| 90523-04003 | ||||
| 93560-54012 | ||||
