ZWE211R-GEXGBT (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE211..E,G,V..TH ; (1908- )ZRE21#..D,E,G,V..GEN,IDN,MA,PHL,SGP,TH

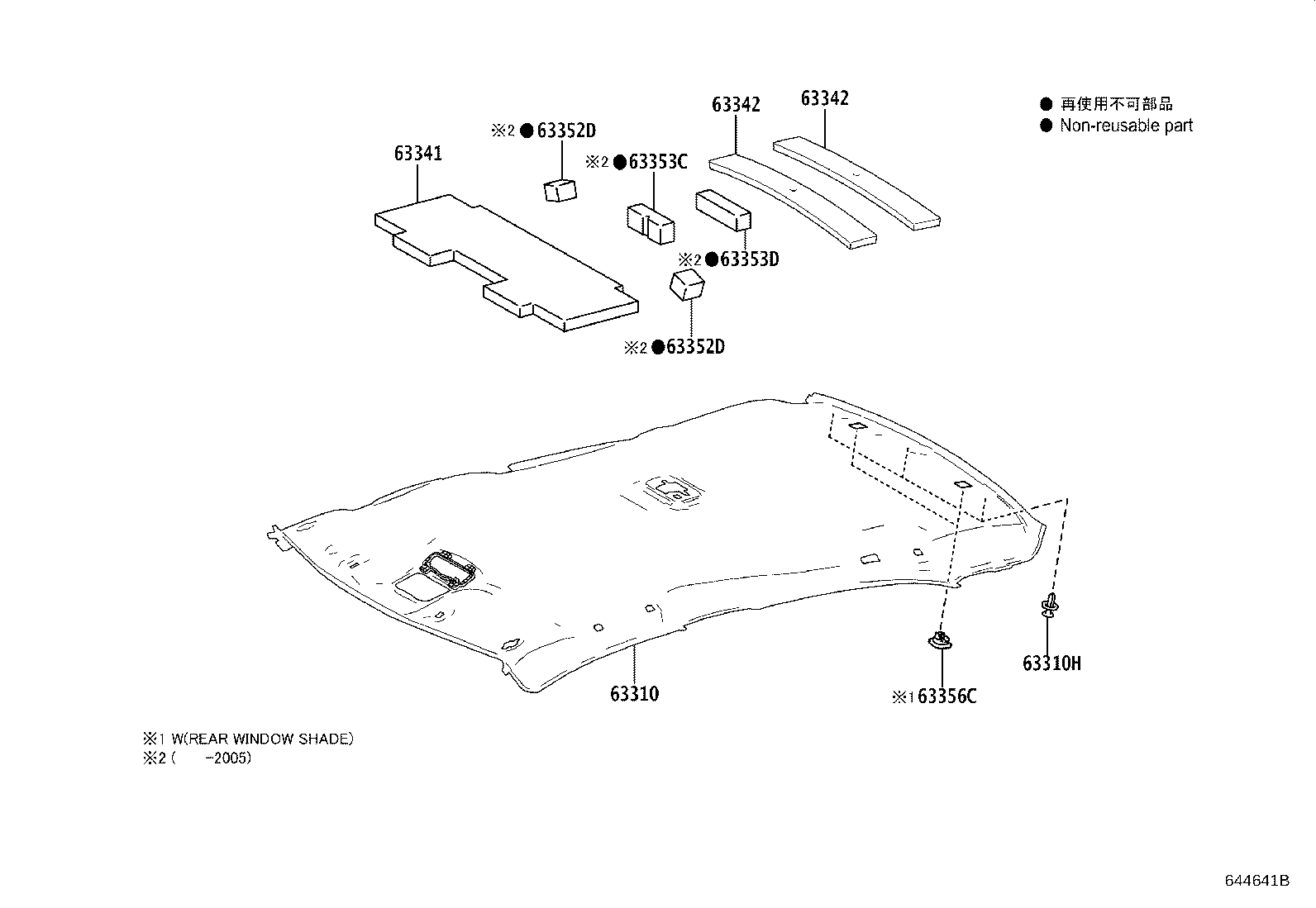

Click highlighted areas on diagram

NORMAL ROOF

diagram 63310 63310H 63341 63342 63342 63352D 63352D 63353C 63353D 63356C
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-02P40A0

ZWE211..E

FROMAGE,TRIM0#,1#

 1
63310-02P30A0

ZWE211..G

FROMAGE,TRIM0#,2#

 1
63310-02P50A0

ZRE210,ZWE211..V..(PHL,TH)

FROMAGE,TRIM0#,2#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05168A0

ZWE211..E

FROMAGE,TRIM0#,1#

 3
90467-05168A0

ZWE211..GEN,PHL;ZWE211..(G,V)..TH;ZRE21#..CVT..(E,G,V)..(MA,PHL)

FROMAGE,TRIM0#,2#

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-02670

ZRE210,ZWE211..(D,E)..(PHL,TH)

 1
63341-02670

ZWE211..(G,V)..TH;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-02860

ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
63342-02860

ZWE211..(G,V)..TH;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-02860

ZRE210,ZWE211..(D,E)..(PHL,TH)

 2
63342-02860

ZWE211..(G,V)..TH;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-02110

ZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-02110

ZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH

 2
63353C - PAD, ROOF HEADLINING, CENTER
63353-02010

ZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH

 1
63353D - PAD, ROOF HEADLINING, CENTER
63353-02020

ZRE21#,ZWE211..GEN,IDN,MA,PHL,SGP,TH

 1
63356C - HOLDER, SUNSHADE TRIM
63356-02100A0

ZRE210,ZWE211..V..(PHL,TH)

FROMAGE,TRIM0#,2#

 2
