ZWE211R-GEXGBT (2019)
Toyota Corolla/Altis
(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,SGP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55213B - PAD, DASH PANEL INSULATOR, NO.1 | ||||
| 55213-02340 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G) |
1 | ||
| 55213-02340 |
ZWE211..E;ZWE211..MA |
1 | ||
| 55214C - PAD, DASH PANEL INSULATOR, NO.2 | ||||
| 55214-02290 |
ZWE211..E;ZWE211..MA |
1 | ||
| 55214-02290 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G) |
1 | ||
| 55215D - PAD, DASH PANEL INSULATOR, NO.3 | ||||
| 55215-02200 |
ZWE211..E;ZWE211..MA |
1 | ||
| 55215-02200 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,SGP;ZRE21#..RHD..(D,E,G) |
1 | ||
| 58441E - COVER, BATTERY SERVICE HOLE | ||||
| 58441-02080C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 58441-02080C0 |
ZWE211..GEN,PHL;ZWE211..(G,V)..TH BLACK,TRIM0#,2# |
1 | ||
| 58441N - CLIP(FOR BATTERY SERVICE HOLE COVER) | ||||
| 90467-06165C3 |
ZWE211..GEN,PHL;ZWE211..(G,V)..TH BLACK,TRIM0#,2# |
1 | ||
| 90467-06165C3 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 58510C - CARPET ASSY, FRONT FLOOR, FRONT | ||||
| 58510-02R10C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 58510-02R10C0 |
ZWE211..(G,V)..TH BLACK,TRIM0#,2# |
1 | ||
| 58511 - MAT, FLOOR, FRONT | ||||
| 58511-02250 |
ZWE211..E;ZWE211..MA |
1 | ||
| 58511-02250 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 90467-07042C4 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 90467-07042C4 |
ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(G,N,V)..(GEN,PHL) BLACK,TRIM0#,2# |
1 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-0704923 |
ZWE211..E BLACK,TRIM0#,1# |
4 | ||
| 90467-0704923 |
ZRE211..MA,TH;ZRE210..(E,G,V)..PHL;ZWE211..(G,N,V)..(GEN,MA,PHL,SGP,TH) BLACK,TRIM0#,2# |
4 | ||
| 64726-10020C2 |
ZWE211..E BLACK,TRIM0#,1# |
4 | ||
| 64726-10020C2 |
ZRE211,ZWE211..(G,V)..(IDN,TH) BLACK,TRIM2# |
4 | ||
| 64726-10020C2 |
ZWE211..E BLACK,TRIM0#,1# |
2 | ||
| 64726-10020C2 |
ZRE211,ZWE211..(G,V)..(IDN,TH) BLACK,TRIM2# |
2 | ||
| 58520C - CLIP(FOR FRONT FLOOR CARPET) | ||||
| 90467-0704923 |
ZWE211..E BLACK,TRIM0#,1# |
4 | ||
| 90467-0704923 |
ZRE211..MA,TH;ZRE210..(E,G,V)..PHL;ZWE211..(G,N,V)..(GEN,MA,PHL,SGP,TH) BLACK,TRIM0#,2# |
4 | ||
| 64726-10020C2 |
ZWE211..E BLACK,TRIM0#,1# |
4 | ||
| 64726-10020C2 |
ZRE211,ZWE211..(G,V)..(IDN,TH) BLACK,TRIM2# |
4 | ||
| 64726-10020C2 |
ZWE211..E BLACK,TRIM0#,1# |
2 | ||
| 64726-10020C2 |
ZRE211,ZWE211..(G,V)..(IDN,TH) BLACK,TRIM2# |
2 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-06170 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
6 | ||
| 58521-06170 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
6 | ||
| 58521B - HOOK, FLOOR CARPET | ||||
| 58521-06170 |
ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW |
6 | ||
| 58521-06170 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
6 | ||
| 58565B - CLIP | ||||
| 90467-T0004C4 |
ZWE211..E BLACK,TRIM0#,1# |
2 | ||
| 90467-T0004C4 |
ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(G,N,V)..(GEN,PHL) BLACK,TRIM0#,2# |
2 | ||
| 58565B - CLIP | ||||
| 90467-T0004C4 |
ZWE211..E BLACK,TRIM0#,1# |
2 | ||
| 90467-T0004C4 |
ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(G,N,V)..(GEN,PHL) BLACK,TRIM0#,2# |
2 | ||
| 58569D - COVER, FRONT FLOOR CAUTION PLATE | ||||
| 58569-02130C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 58569-02130C0 |
ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH);ZRE210,ZWE211..(G,N,V)..(GEN,PHL) BLACK,TRIM0#,2# |
1 | ||
| 58694B - PLATE, MAT SET, UPPER | ||||
| 58694-0K010 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
2 | ||
| 58694-0K010 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
2 | ||
| 58698C - PLATE, MAT SET, LOWER | ||||
| 58698-0K070 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
2 | ||
| 58698-0K070 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
2 | ||
| 76971G - COVER, REAR UNDER | ||||
| 76971-02040C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 76971-02040C0 |
ZWE211..GEN,PHL;ZWE211..(G,V)..TH BLACK,TRIM0#,2# |
1 | ||
| 76973F - COVER, REAR UNDER SIDE, RH | ||||
| 76973-02040C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| 76973-02040C0 |
ZWE211..GEN,PHL;ZWE211..(G,V)..TH BLACK,TRIM0#,2# |
1 | ||
| 76974F - COVER, REAR UNDER SIDE, LH | ||||
| 76974-02040C0 |
ZWE211..GEN,PHL;ZWE211..(G,V)..TH BLACK,TRIM0#,2# |
1 | ||
| 76974-02040C0 |
ZWE211..E BLACK,TRIM0#,1# |
1 | ||
| Common parts | ||||
| 90467-05172 | ||||
| 90467-08226 | ||||
| 90467-13079 | ||||
| 90467-T0019 | ||||

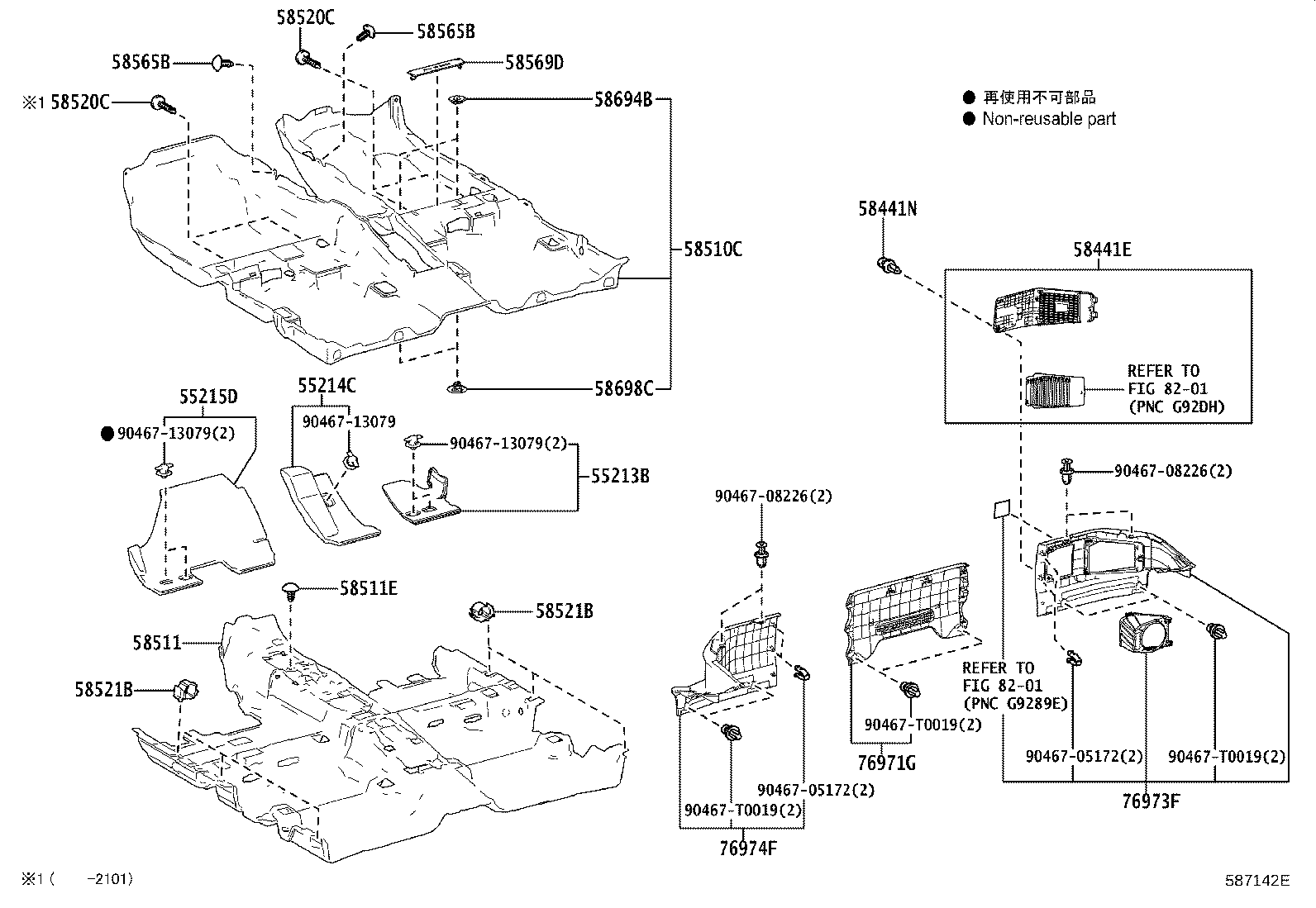

| Linked diagrams | ||||
| 8201 | ||||
