ZWE211R-GEXGBT (2019)
Toyota Corolla/Altis
(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA
ADVICS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-12162 |
ZWE211..E;ZWE211..MA MARK NBK D6360-FF |
1 | ||
| 04466-12162 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) MARK NBK D6360-FF |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-10091 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 04479-10091 |
ZWE211..E;ZWE211..MA |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-12130 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 04946-12130 |
ZWE211..E;ZWE211..MA |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-12071 |
ZWE211..E;ZWE211..MA |
1 | ||
| 04948-12071 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
2 | ||
| 31478-30010 |
ZWE211..E;ZWE211..MA |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
ZWE211..E;ZWE211..MA |
2 | ||
| 47547-20010 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90015-AA603 |
ZWE211..E;ZWE211..MA *8-1.00PX23-12.5 |
4 | ||
| 90015-AA603 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) *8-1.00PX23-12.5 |
4 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-50010 |
ZWE211..E;ZWE211..MA |
2 | ||
| 47769-50010 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-33270 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
4 | ||
| 47875-33270 |
ZWE211..E;ZWE211..MA |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-33270 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
4 | ||
| 47875-33270 |
ZWE211..E;ZWE211..MA |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-T0379 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 90105-12174 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (J) |
4 | ||
| 90105-T0379 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (L) |
4 | ||
| 90105-12174 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-78010 |
ZWE211..E;ZWE211..MA |
2 | ||
| 47814-78010 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
2 | ||
| 47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-78010 |
ZWE211..E;ZWE211..MA |
2 | ||
| 47815-78010 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
2 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-12280 |
ZWE211..E;ZWE211..MA |
1 | ||
| 47821-12280 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-12280 |
ZWE211..E;ZWE211..MA |
1 | ||
| 47822-12280 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-12280 |
ZWE211..E;ZWE211..MA |
1 | ||
| 47830-12280 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-10030 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
2 | ||
| 47831-10030 |
ZWE211..E;ZWE211..MA |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-12280 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 47850-12280 |
ZWE211..E;ZWE211..MA |
1 | ||
| 47881C - COVER, DISC BRAKE DUST, REAR RH | ||||
| 47881-02230 |
ZRE210..V;ZRE211..RHD..G;ZWE211..GEN,IDN,MA,PHL,SGP,TH |
1 | ||
| 47881-02231 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 47881-02231 |
ZWE211..E;ZWE211..MA |
1 | ||
| 47882 - COVER, DISC BRAKE DUST, REAR LH | ||||
| 47882-02230 |
ZRE210..V;ZRE211..RHD..G;ZWE211..GEN,IDN,MA,PHL,SGP,TH |
1 | ||
| 47882-02231 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 47882-02231 |
ZWE211..E;ZWE211..MA |
1 | ||

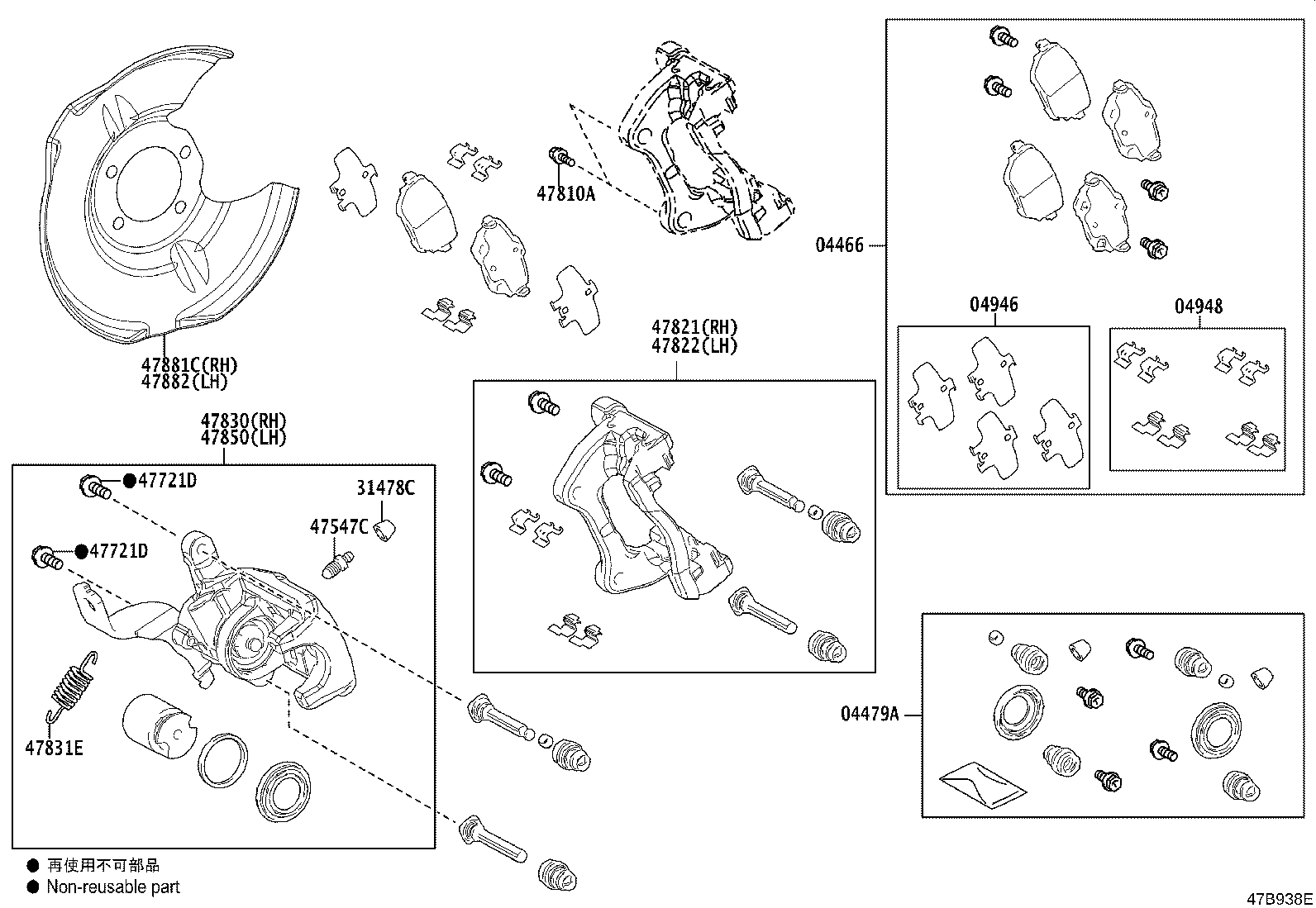

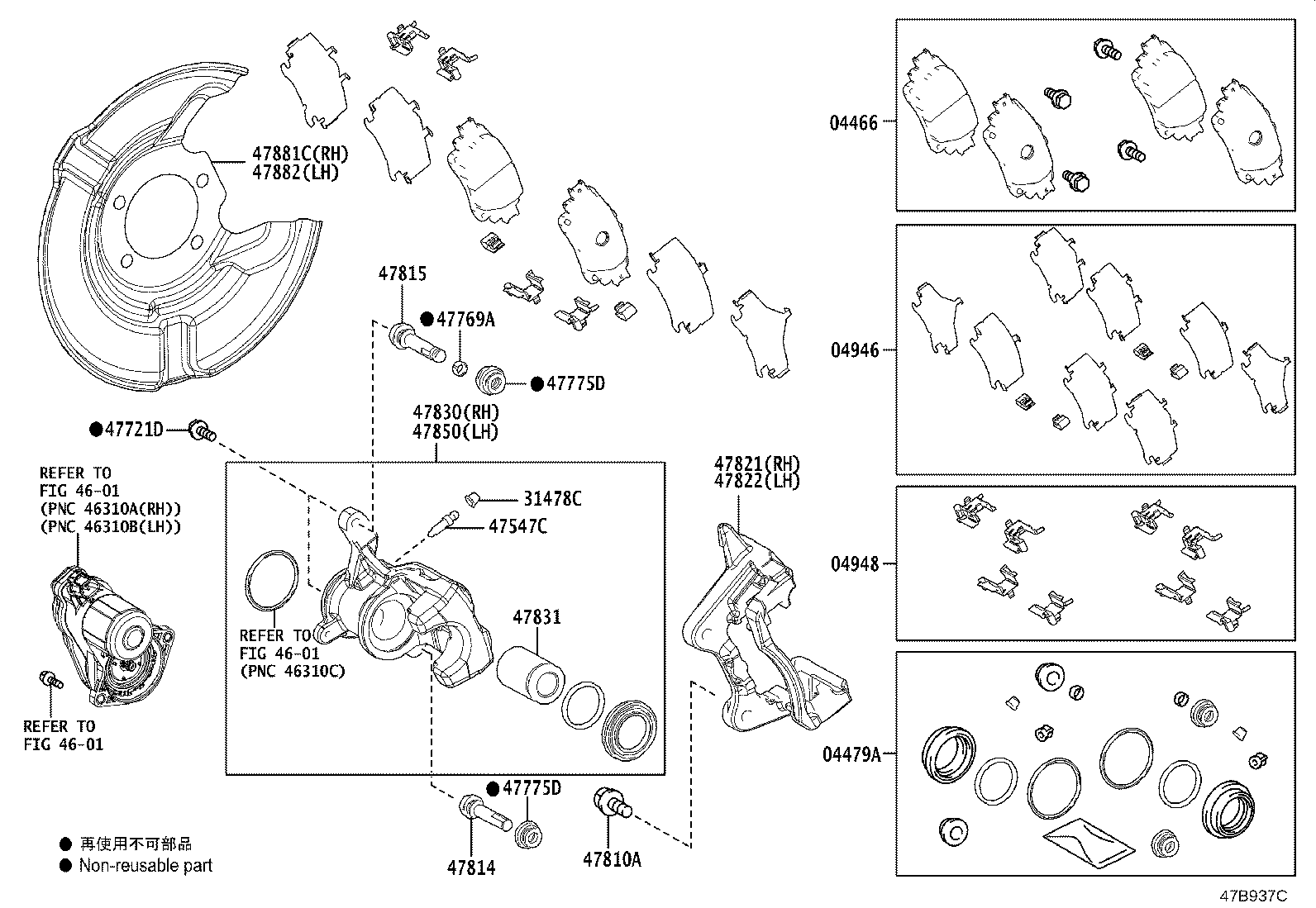

| Linked diagrams | ||||
| 4601 | ||||
(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA
BOSCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-12162 |
ZWE211..E;ZWE211..MA MARK NBK D6360-FF |
1 | ||
| 04466-12162 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) MARK NBK D6360-FF |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-10091 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 04479-10091 |
ZWE211..E;ZWE211..MA |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-12130 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 04946-12130 |
ZWE211..E;ZWE211..MA |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-12071 |
ZWE211..E;ZWE211..MA |
1 | ||
| 04948-12071 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
2 | ||
| 31478-30010 |
ZWE211..E;ZWE211..MA |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
ZWE211..E;ZWE211..MA |
2 | ||
| 47547-20010 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90015-AA603 |
ZWE211..E;ZWE211..MA *8-1.00PX23-12.5 |
4 | ||
| 90015-AA603 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) *8-1.00PX23-12.5 |
4 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90015-AA603 |
ZWE211..E;ZWE211..MA *8-1.00PX23-12.5 |
4 | ||
| 90015-AA603 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) *8-1.00PX23-12.5 |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-T0379 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L) |
4 | ||
| 90105-12174 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (J) |
4 | ||
| 90105-T0379 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (L) |
4 | ||
| 90105-12174 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J) |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-12280 |
ZWE211..E;ZWE211..MA |
1 | ||
| 47821-12280 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-12280 |
ZWE211..E;ZWE211..MA |
1 | ||
| 47822-12280 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-12280 |
ZWE211..E;ZWE211..MA |
1 | ||
| 47830-12280 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-12280 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 47850-12280 |
ZWE211..E;ZWE211..MA |
1 | ||
| 47881C - COVER, DISC BRAKE DUST, REAR RH | ||||
| 47881-02230 |
ZRE210..V;ZRE211..RHD..G;ZWE211..GEN,IDN,MA,PHL,SGP,TH |
1 | ||
| 47881-02231 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 47881-02231 |
ZWE211..E;ZWE211..MA |
1 | ||
| 47882 - COVER, DISC BRAKE DUST, REAR LH | ||||
| 47882-02230 |
ZRE210..V;ZRE211..RHD..G;ZWE211..GEN,IDN,MA,PHL,SGP,TH |
1 | ||
| 47882-02231 |
ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP) |
1 | ||
| 47882-02231 |
ZWE211..E;ZWE211..MA |
1 | ||
