Toyota Corolla/altis ZWE211 REAR COMBINATION LAMP

ZWE211R-GEXEBT (2019)

Toyota Corolla/Altis

Production Aug 2019 - Sep 9999

Engine 2ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA

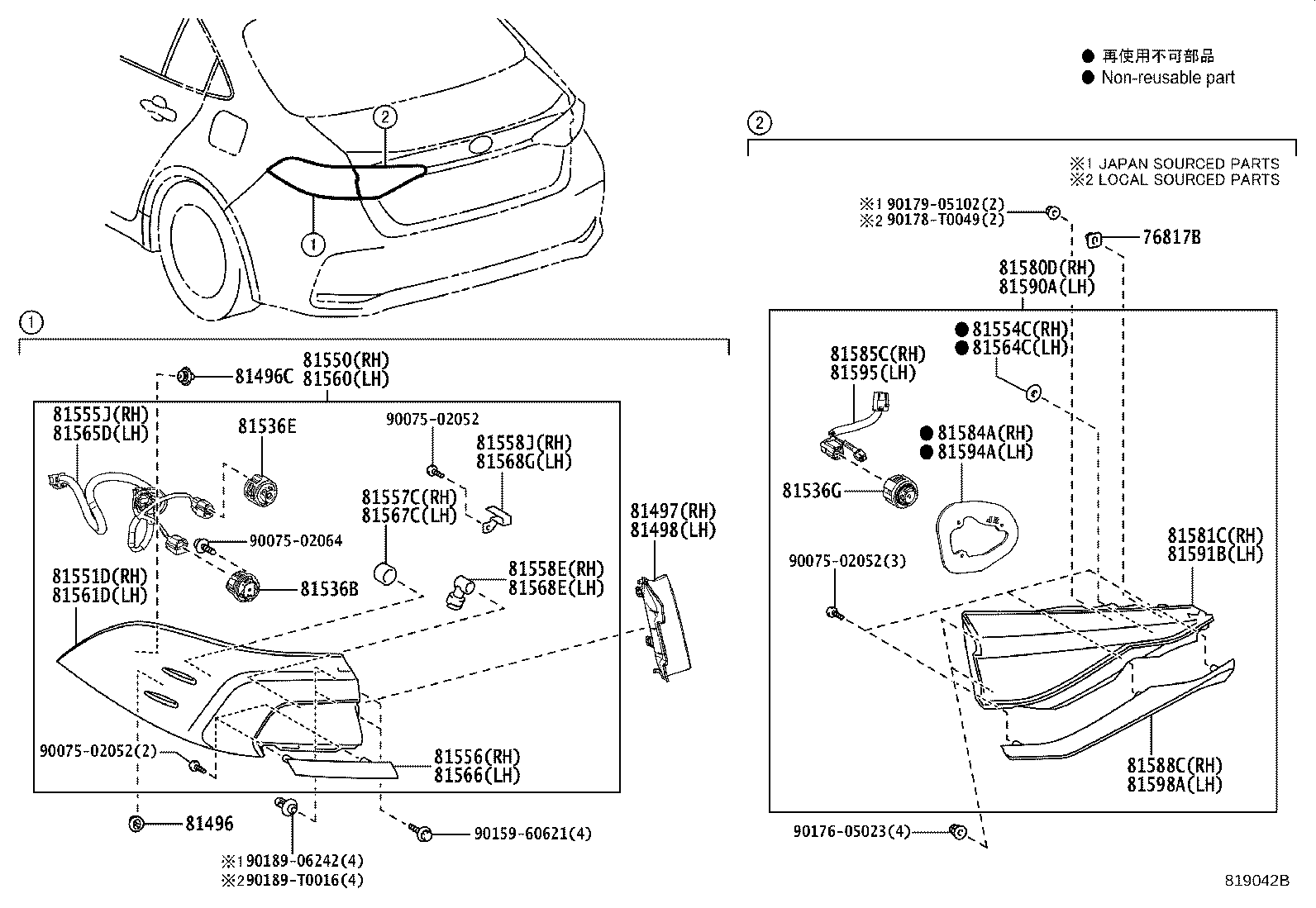

Click highlighted areas on diagram

LED TYPE(TAIL LAMP & TURN LAMP)

Part #	Description	Period	Qty
76817B - CLIP, REAR LAMP
76817-26040	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	2
76817-26040	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	04/2019 - 12/2021	2
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J)	08/2019 - 12/2021	2
81496-52020	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (J)	08/2019 - 12/2999	2
81496-0D040	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L)	08/2019 - 12/2021	2
81496-0D040	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (L)	08/2019 - 12/2999	2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	2
81496-60010	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	04/2019 - 12/2021	2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-02070	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81497-02070	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-02070	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81498-02070	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81536B - LED, REAR TURN SIGNAL LAMP
81536-12D20	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	2
81536E - LED, STOP LAMP
8158A-0D610	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	2
81536G - LED, BACK-UP LAMP
8158A-12260	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(GEN,IDN,PHL,SGP,TH)	08/2019 - 12/2999	2
8158A-12260	ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-02E40	ZWE211..E	08/2019 - 12/2021	1
81550-02D40	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-02D40	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81551-02E40	ZWE211..E	08/2019 - 12/2021	1
81554C - PACKING, REAR COMBINATION LAMP BODY, RH
81554-12A00	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81554-12A00	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81555J - SOCKET & WIRE, REAR COMBINATION LAMP, RH
81555-02E40	ZWE211..E	08/2019 - 12/2021	1
81555-02D40	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-02E40	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81556-02E40	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81557C - COVER, REAR COMBINATION LAMP, RH
90075-15512	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
90075-15512	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81558E - COVER, REAR COMBINATION LAMP, RH
90075-15513	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
90075-15513	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81558J - PLATE, REAR COMBINATION LAMP CIRCUIT, RH
81558-02D40	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-02D50	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81560-02E40	ZWE211..E	08/2019 - 12/2021	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-02D50	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81561-02E40	ZWE211..E	08/2019 - 12/2021	1
81564C - PACKING, REAR COMBINATION LAMP BODY, LH
81554-12A00	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81554-12A00	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81565D - CORD, REAR COMBINATION LAMP, LH
81565-02E40	ZWE211..E	08/2019 - 12/2021	1
81565-02D50	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81566 - RIM, REAR COMBINATION LAMP, LH
81566-02E40	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81566-02E40	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81567C - COVER, REAR COMBINATION LAMP, LH
90075-15512	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
90075-15512	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81568E - COVER, REAR COMBINATION LAMP, LH
90075-15513	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
90075-15513	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81568G - PLATE, REAR COMBINATION LAMP CIRCUIT, LH
81568-02D50	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81580D - LAMP ASSY, REAR, RH
81580-02E30	ZWE211..E	08/2019 - 12/2021	1
81580-02C80	ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81581C - LENS AND BODY, REAR LAMP, RH
81581-02C80	ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81581-02E30	ZWE211..E	08/2019 - 12/2021	1
81584A - GASKET, REAR LAMP RH
81584-02E30	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81584-02E30	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-02E30	ZWE211..E	08/2019 - 12/2021	1
81585-02C80	ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81588C - RIM, REAR LAMP, RH
81588-02E30	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81588-02E30	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81590A - LAMP ASSY, REAR, LH
81590-02D90	ZWE211..E	08/2019 - 12/2021	1
81590-02C80	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81591B - LENS AND BODY, REAR LAMP, LH
81591-02C80	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81591-02D90	ZWE211..E	08/2019 - 12/2021	1
81594A - GASKET, REAR LAMP LH
81594-02D90	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81594-02D90	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-02C80	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81585-02E30	ZWE211..E	08/2019 - 12/2021	1
81598A - RIM, REAR LAMP, LH
81598-02D90	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81598-02D90	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
Common parts
90075-02052
90075-02064
90159-60621
90176-05023
90178-T0049
90179-05102
90189-06242
90189-T0016

(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA

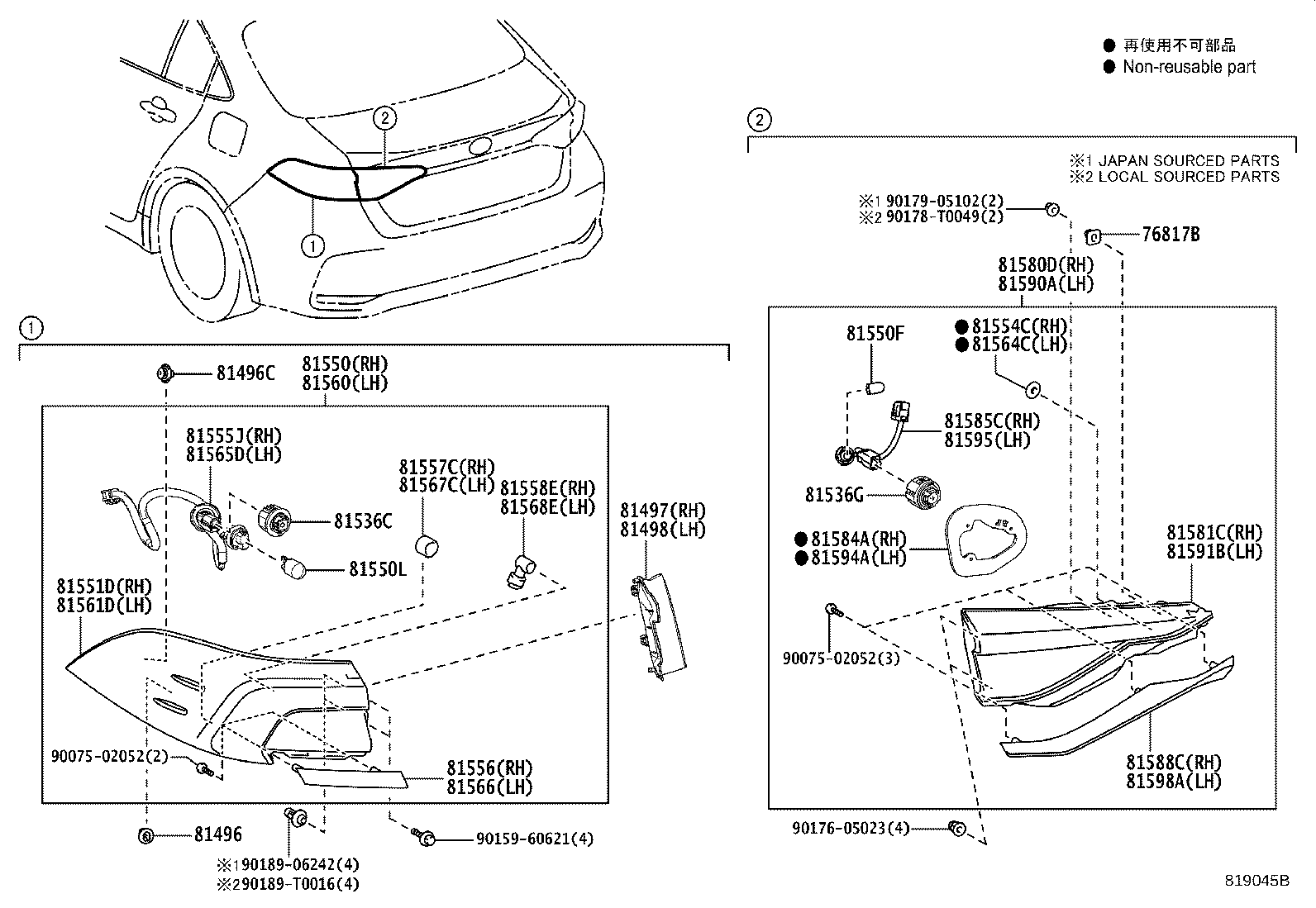

Click highlighted areas on diagram

BULB TYPE(TAIL LAMP & TURN LAMP)

Part #	Description	Period	Qty
76817B - CLIP, REAR LAMP
76817-26040	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	2
76817-26040	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	04/2019 - 12/2021	2
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (J)	08/2019 - 12/2021	2
81496-52020	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (J)	08/2019 - 12/2999	2
81496-0D040	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) (L)	08/2019 - 12/2021	2
81496-0D040	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) (L)	08/2019 - 12/2999	2
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-60010	ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW	04/2019 - 12/2999	2
81496-60010	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	04/2019 - 12/2021	2
81497 - COVER, REAR COMBINATION LAMP, RH
81497-02070	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81497-02070	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81498 - COVER, REAR COMBINATION LAMP, LH
81498-02070	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81498-02070	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81536C - LED, TAIL & STOP LAMP
81536-15120	ZWE211..E	08/2019 - 12/2021	2
81536G - LED, BACK-UP LAMP
8158A-12260	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(GEN,IDN,PHL,SGP,TH)	08/2019 - 12/2999	2
8158A-12260	ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-02E40	ZWE211..E	08/2019 - 12/2021	1
81550-02D40	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81550F - BULB, TAIL LAMP
90981-11069	ZWE211..E 12V 5W	08/2019 - 12/2021	2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15021	ZWE211..E 12V 21W,AMBER	04/2019 - 12/2021	2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-02D40	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81551-02E40	ZWE211..E	08/2019 - 12/2021	1
81554C - PACKING, REAR COMBINATION LAMP BODY, RH
81554-12A00	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81554-12A00	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81555J - SOCKET & WIRE, REAR COMBINATION LAMP, RH
81555-02E40	ZWE211..E	08/2019 - 12/2021	1
81555-02D40	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-02E40	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81556-02E40	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81557C - COVER, REAR COMBINATION LAMP, RH
90075-15512	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
90075-15512	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81558E - COVER, REAR COMBINATION LAMP, RH
90075-15513	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
90075-15513	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-02D50	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81560-02E40	ZWE211..E	08/2019 - 12/2021	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-02D50	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81561-02E40	ZWE211..E	08/2019 - 12/2021	1
81564C - PACKING, REAR COMBINATION LAMP BODY, LH
81554-12A00	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81554-12A00	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81565D - CORD, REAR COMBINATION LAMP, LH
81565-02E40	ZWE211..E	08/2019 - 12/2021	1
81565-02D50	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81566 - RIM, REAR COMBINATION LAMP, LH
81566-02E40	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81566-02E40	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81567C - COVER, REAR COMBINATION LAMP, LH
90075-15512	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
90075-15512	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81568E - COVER, REAR COMBINATION LAMP, LH
90075-15513	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
90075-15513	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81580D - LAMP ASSY, REAR, RH
81580-02E30	ZWE211..E	08/2019 - 12/2021	1
81580-02C80	ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81581C - LENS AND BODY, REAR LAMP, RH
81581-02C80	ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81581-02E30	ZWE211..E	08/2019 - 12/2021	1
81584A - GASKET, REAR LAMP RH
81584-02E30	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81584-02E30	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81585C - SOCKET & WIRE, REAR LAMP, RH
81585-02E30	ZWE211..E	08/2019 - 12/2021	1
81585-02C80	ZRE211..RHD..G;ZWE211..(G,V)..TH;ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81588C - RIM, REAR LAMP, RH
81588-02E30	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81588-02E30	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81590A - LAMP ASSY, REAR, LH
81590-02D90	ZWE211..E	08/2019 - 12/2021	1
81590-02C80	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81591B - LENS AND BODY, REAR LAMP, LH
81591-02C80	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81591-02D90	ZWE211..E	08/2019 - 12/2021	1
81594A - GASKET, REAR LAMP LH
81594-02D90	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
81594-02D90	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81595 - SOCKET & WIRE, REAR LAMP, LH
81585-02C80	ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZRE210,ZWE211..CVT..(GEN,IDN,PHL,SGP)	08/2019 - 12/2999	1
81585-02E30	ZWE211..E	08/2019 - 12/2021	1
81598A - RIM, REAR LAMP, LH
81598-02D90	ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH)	08/2019 - 12/2999	1
81598-02D90	ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)	08/2019 - 12/2021	1
Common parts
90075-02052
90159-60621
90176-05023
90178-T0049
90179-05102
90189-06242
90189-T0016

ZWE211R-GEXEBT (2019)

(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA

(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA

Part Price Details
