ZWE211L-GEXVBR (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

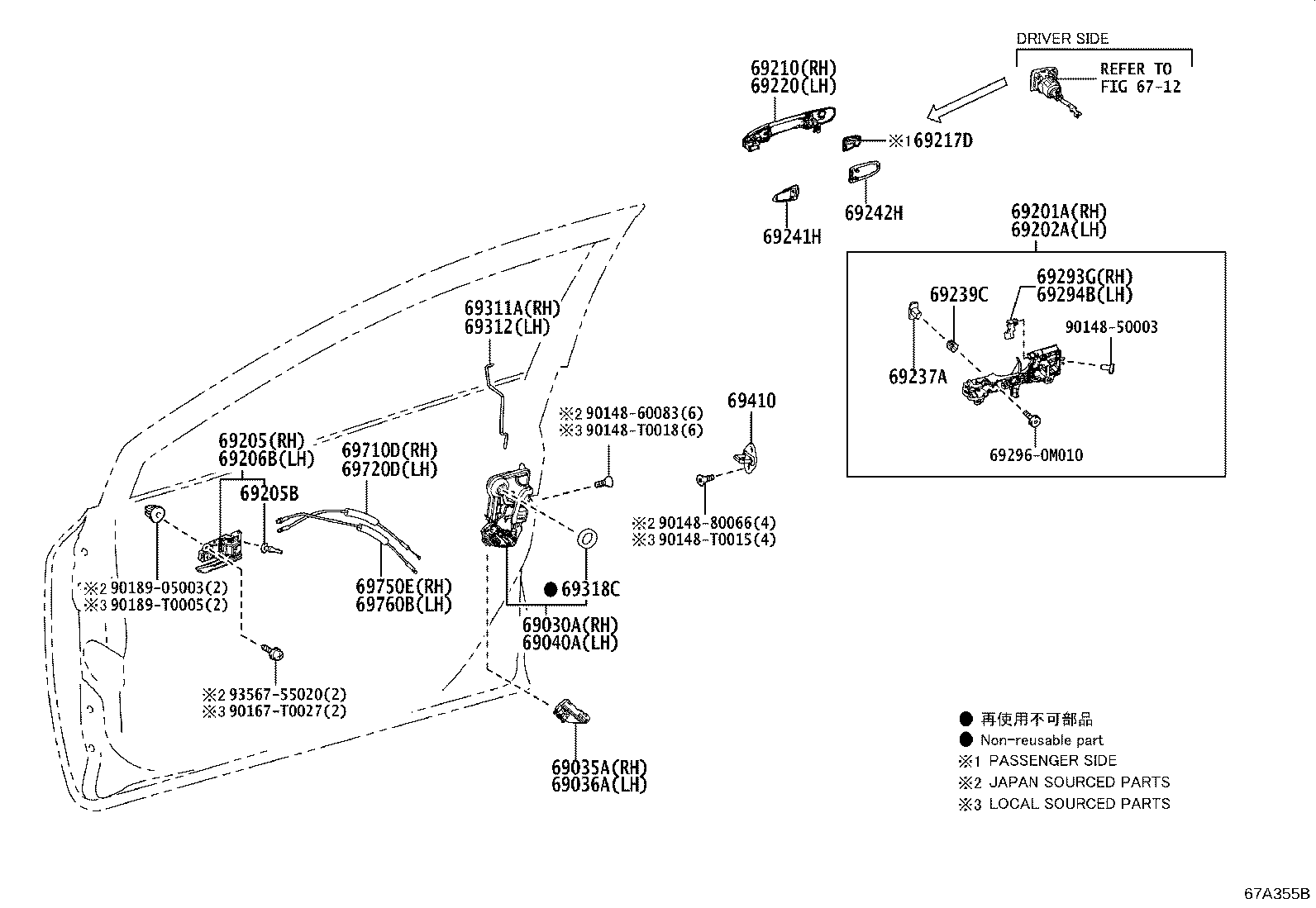

Click highlighted areas on diagram

diagram 6712 69030A 69035A 69036A 69040A 69201A 69202A 69205 69205B 69206B 69210 69217D 69220 69237A 69239C 69241H 69242H 69293G 69294B 692960M010 69311A 69312 69318C 69410 69710D 69720D 69750E 69760B 9014850003 9014860083 9014880066 90148T0015 90148T0018 90167T0027 9018905003 90189T0005 9356755020
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-02470

ZWE211..E;ZWE211..MA

 1
69030-02580

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH
69035-02050

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH
69036-02050

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-02470

ZWE211..E;ZWE211..MA

 1
69040-02560

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-02360

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-02300

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-02460C0

ZRE211,ZWE211..(G,V)..TAIW

BLACK,TRIM2#,3#

 1
69205-02460B0

ZRE211,ZWE211..TAIW

LT.GRAY,TRIM1#

 1
69205-02430B0

ZWE211..E;ZRE210..D..PHL

LT.GRAY,TRIM1#

 1
69205-02390C0

ZRE211,ZWE211..(G,V)..TAIW

BLACK,TRIM2#,3#

 1
69205-02390B0

ZRE211,ZWE211..TAIW

LT.GRAY,TRIM1#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04014

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-02440B0

ZRE211,ZWE211..TAIW

LT.GRAY,TRIM1#

 1
69206-02410B0

ZWE211..E;ZRE210..D..PHL

LT.GRAY,TRIM1#

 1
69206-02440C0

ZRE211,ZWE211..(G,V)..TAIW

BLACK,TRIM2#,3#

 1
69206-02490C0

ZRE211,ZWE211..(G,V)..TAIW

BLACK,TRIM2#,3#

 1
69206-02490B0

ZRE211,ZWE211..TAIW

LT.GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-02938

MZEA1#,ZRE21#,ZWE211..(D,E,G,V)..(GCC,TAIW)

PAINT REQ.

 1
69211-02939

ZWE211..E

PAINT REQ.

 1
69217D - COVER, FRONT DOOR OUTSIDE HANDLE
69217-02630

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-02280B2

ZRE211,ZWE211..(G,V)..TAIW

CELESTITE GRAY ME.,1K3

 1
69210-02280A0

ZRE211,ZWE211..(G,V)..TAIW

SUPER WHITE 2,040

 1
69210-02280B1

ZRE211,ZWE211..(G,V)..TAIW

GRAY ME.,1G3

 1
69210-02280B0

ZRE211,ZWE211..(G,V)..TAIW

SILVER ME.,1F7

 1
69210-02280D1

ZRE211,ZWE211..(G,V)..TAIW

RED M.M.,3R3

 1
69211-02937

MZEA1#,ZRE21#,ZWE211..LHD..CVT..(D,E)

PAINT REQ.

 1
69211-02940

ZWE211..E

PAINT REQ.

 1
69210-02280C0

ZRE211,ZWE211..(G,V)..TAIW

BLACK MC.,209

 1
69237A - NUT, FRONT DOOR HANDLE
69237-62010

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 2
69239C - BUSH, FRONT DOOR HANDLE
69239-02080

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 2
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-02300

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 2
69242H - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-02290

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 2
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-02060

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-02080

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-02370

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-02370

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

ZRE211..D,E,G;ZWE211..(G,V)..TH;MZEA1#,ZRE210..CVT;ZWE211..GCC,GEN,IDN,PHL,SGP,TAIW

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-02040

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

(L)

 2
69410-20110

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

(J)

 2
69710D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVE
69710-02380

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69720D - CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVE
69710-02380

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69750E - CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK
69750-02410

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
69760B - CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK
69750-02410

MZEA1#,ZRE21#,ZWE211..GCC,TAIW

 1
Common parts
69296-0M010
90148-50003
90148-60083
90148-80066
90148-T0015
90148-T0018
90167-T0027
90189-05003
90189-T0005
93567-55020
Linked diagrams
6712
