ZWE211L-GEXVBM (2019)
Toyota Corolla/Altis
(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA

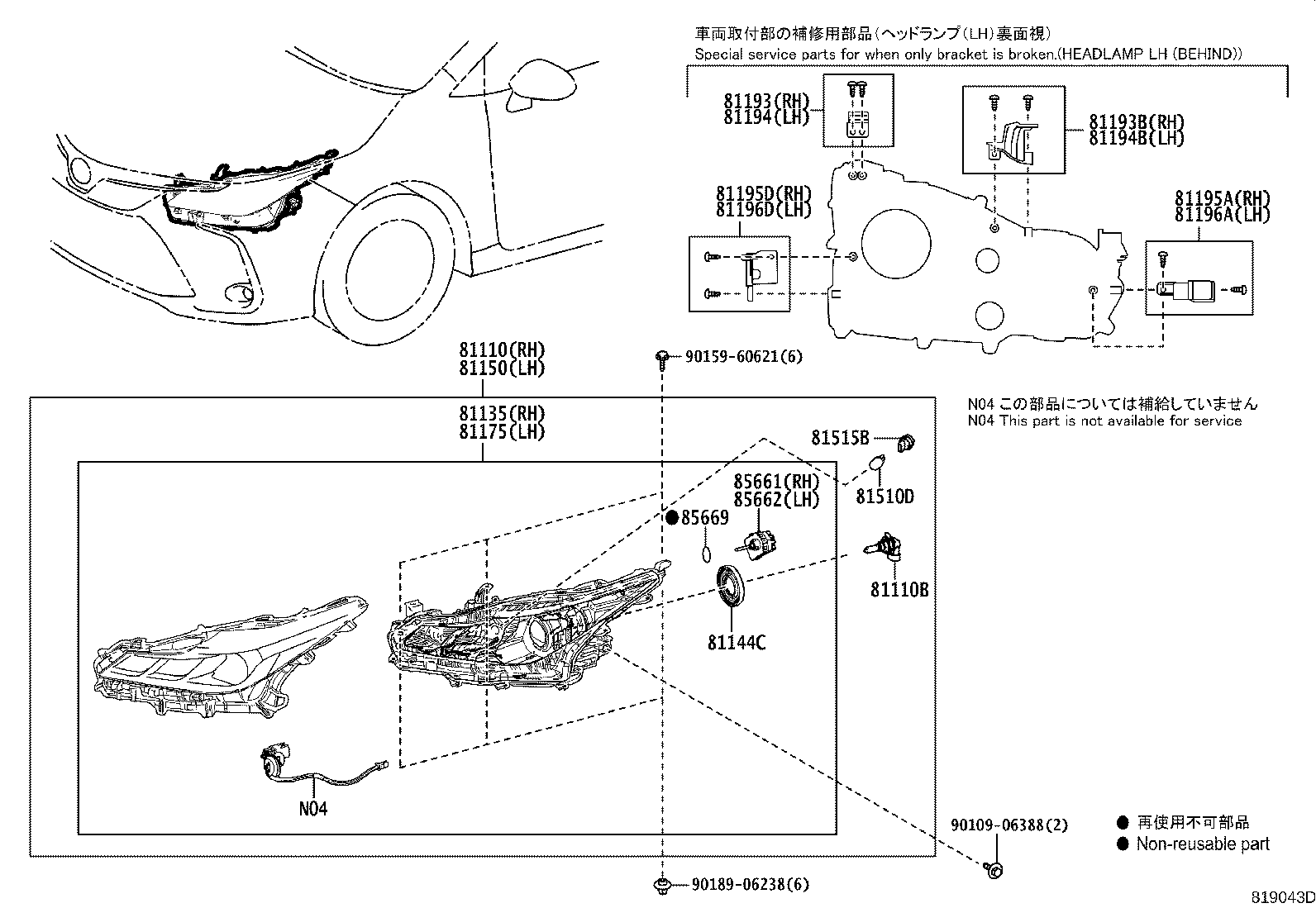

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-02M60 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 81110-02M60 |
ZWE211..E |
1 | ||
| 81110-02M40 |
ZWE211..PHL |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13091 |
ZRE210,ZWE211..(D,E)..(PHL,TH) 12V 55W,HALOGEN |
2 | ||
| 90981-13091 |
ZWE211..G 12V 55W,HALOGEN, LOW GRADE PACKAGE |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-02M60 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 81140-02M40 |
ZWE211..PHL |
1 | ||
| 81130-02M60 |
ZWE211..E |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
ZRE210,ZWE211..(D,E)..(PHL,TH) |
2 | ||
| 90075-65006 |
ZWE211..G LOW GRADE PACKAGE |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-02M40 |
ZWE211..E |
1 | ||
| 81150-02L30 |
ZWE211..PHL |
1 | ||
| 81150-02M40 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-02M40 |
ZWE211..E |
1 | ||
| 81070-02L30 |
ZWE211..PHL |
1 | ||
| 81170-02M40 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-02310 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81193-02310 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-02330 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81193-02330 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-02310 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81194-02310 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-02330 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81194-02330 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-02320 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81193-02320 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81193-02300 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81193-02300 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-02320 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81194-02320 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81194-02300 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81194-02300 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ZWE211..G 12V 21W,AMBER, LOW GRADE PACKAGE |
2 | ||
| 90981-15021 |
ZRE210,ZWE211..(D,E)..(PHL,TH) 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ZRE210,ZWE211..(D,E)..(PHL,TH) |
2 | ||
| 90075-60028 |
ZWE211..G LOW GRADE PACKAGE |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-0D020 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZWE211..GEN,IDN,PHL;ZRE210..CVT..(GEN,PHL,SGP) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-0D020 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZWE211..GEN,IDN,PHL;ZRE210..CVT..(GEN,PHL,SGP) |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZWE211..GEN,IDN,PHL;ZRE210..CVT..(GEN,PHL,SGP) |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
(1908- )ZWE211..E,G,V..TH;ZWE211..GEN,IDN,MA,PHL,SGP;ZRE21#..D,E,G,V..GEN,IDN,MA

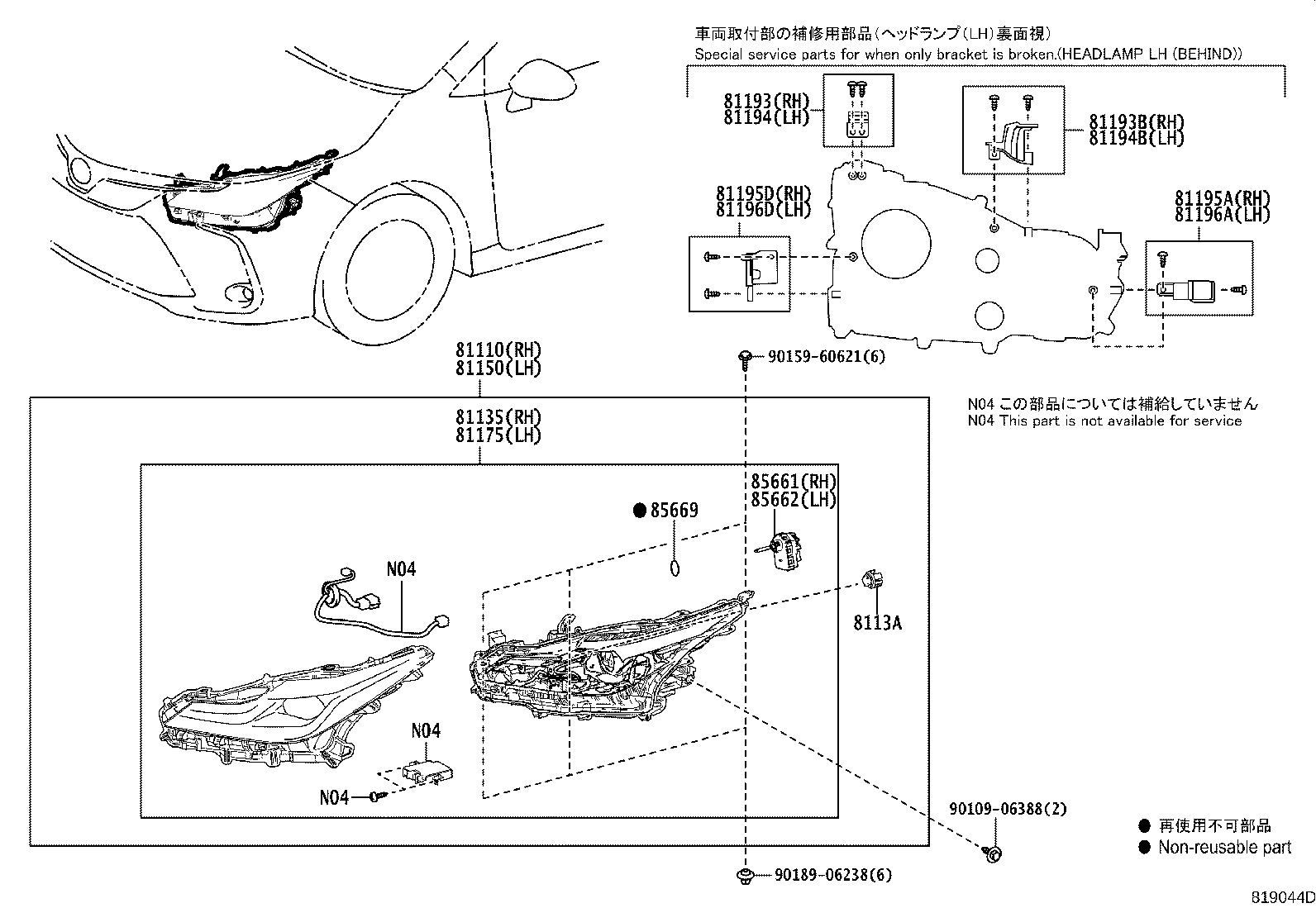

LED HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-02M60 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 81110-02M60 |
ZWE211..E |
1 | ||
| 81110-02M40 |
ZWE211..PHL |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-02M60 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 81140-02M40 |
ZWE211..PHL |
1 | ||
| 81130-02M60 |
ZWE211..E |
1 | ||
| 8113A - LED, HEADLAMP FRONT TURN SIGNAL | ||||
| 81536-12D30 |
ZRE211,ZWE211..(G,V)..TH;ZRE210,ZWE211..CVT..(E,N,V)..(GEN,IDN,PHL,TAIW) |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-02M40 |
ZWE211..E |
1 | ||
| 81150-02L30 |
ZWE211..PHL |
1 | ||
| 81150-02M40 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-02M40 |
ZWE211..E |
1 | ||
| 81070-02L30 |
ZWE211..PHL |
1 | ||
| 81170-02M40 |
ZWE211..G LOW GRADE PACKAGE |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-02310 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81193-02310 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-02330 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81193-02330 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-02310 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81194-02310 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-02330 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81194-02330 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81193-02320 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81193-02320 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81195D - RETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2 | ||||
| 81193-02300 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81193-02300 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-02320 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 81194-02320 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81196D - RETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2 | ||||
| 81194-02300 |
ZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH) |
1 | ||
| 81194-02300 |
ZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP;ZRE21#..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH) |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-0D020 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZWE211..GEN,IDN,PHL;ZRE210..CVT..(GEN,PHL,SGP) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-0D020 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZWE211..GEN,IDN,PHL;ZRE210..CVT..(GEN,PHL,SGP) |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ZWE211..(G,V)..TH;ZRE211..RHD..(E,G);ZWE211..GEN,IDN,PHL;ZRE210..CVT..(GEN,PHL,SGP) |
2 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
