ZWE211L-GEXNBV (2019)

Toyota Corolla/Altis

Production Apr 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1904- )MZEA1#,ZRE210;ZRE211..D,E,G;ZWE211..E,G,V..TH;ZWE211..GCC,GEN,IDN,MA,PHL

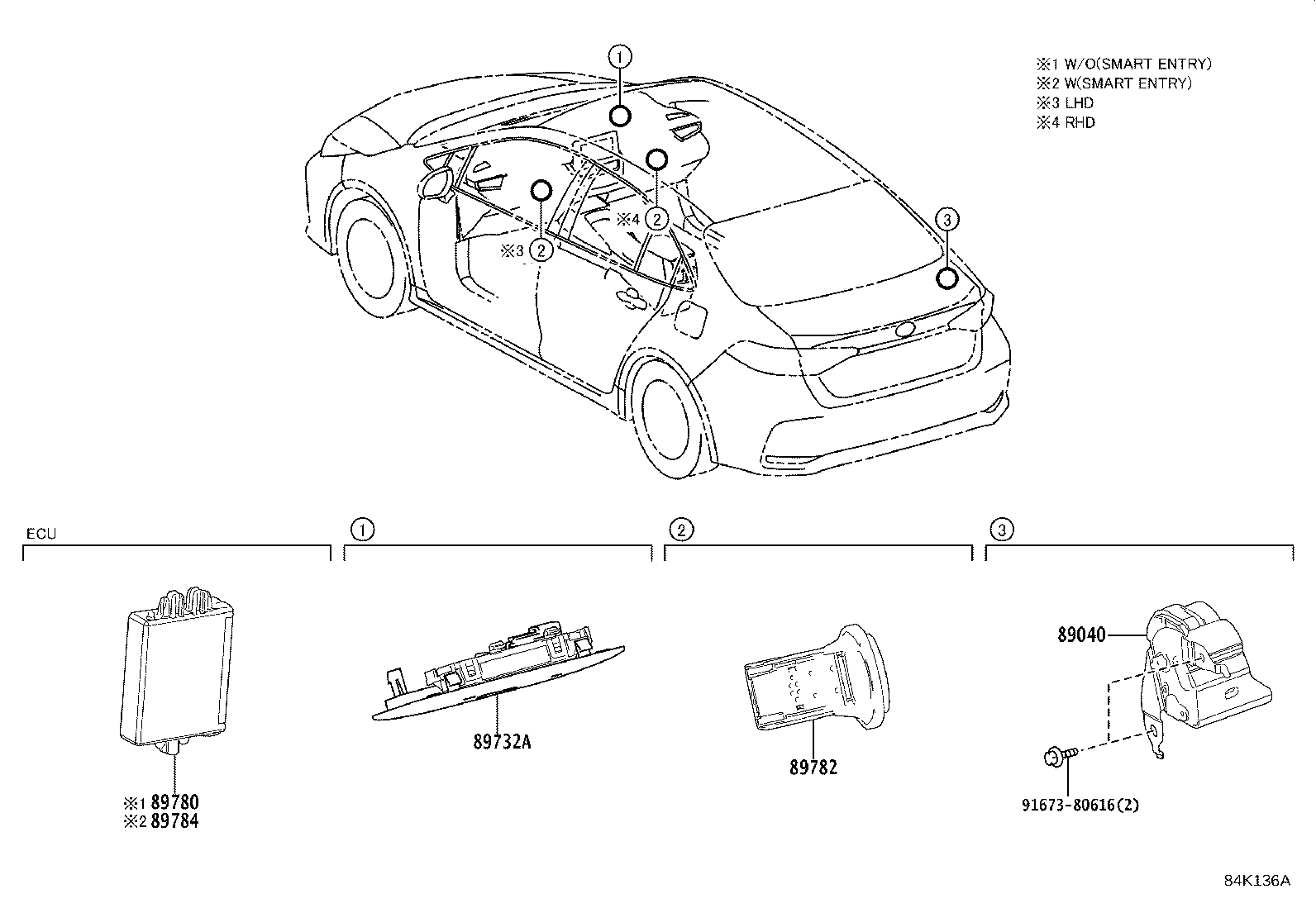

Click highlighted areas on diagram

diagram 89040 89732A 89780 89782 89784 9167380616
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
897H0-26010

MZEA12,ZRE210,ZWE211..D..GCC

 1
897H0-02040

ZWE211..E

 1
897H0-V3010

MZEA1#,ZRE210,ZWE211..D..GCC

 1
897H0-26010

MZEA12,ZRE210,ZWE211..D..GCC

UP GRADE PACKAGE

 1
897H0-V3010

MZEA1#,ZRE210,ZWE211..D..GCC

UP GRADE PACKAGE

 1
89782 - COIL, TRANSPONDER KEY
89782-12060

MZEA1#,ZRE210,ZWE211..D..GCC

 1
89782-02130

ZWE211..E

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-12040

MZEA1#,ZRE21#,ZWE211..(G,N,V)..(GCC,TAIW)

 1
Common parts
91673-80616
